NSN 5320-00-420-2165 M24243/7-A604H, M242437A604H, AK64H

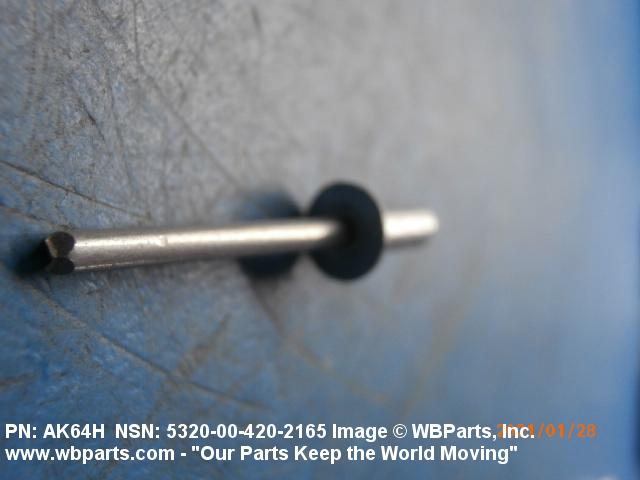

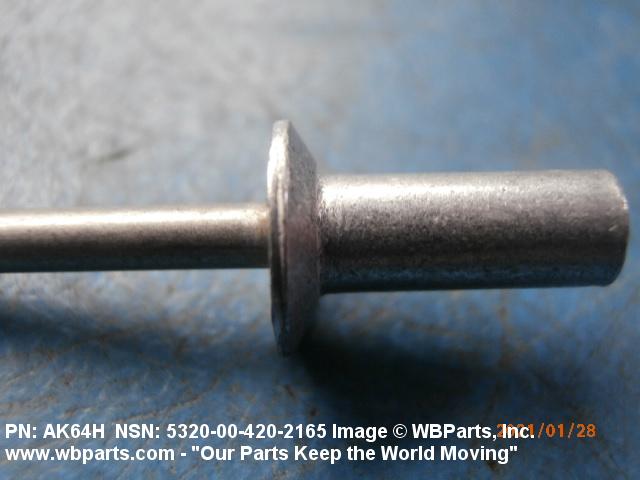

Product Details | BLIND RIVET
5320-00-420-2165 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M24243/7-A604H, M242437A604H, AK64H, MILR24243/7, MILR242437, 54200180, 5-4-2001-80, 546922, 5-4-6922, 5469221, 5-4-6922-1, 1339AS33619, 1339AS336-19, 17157119, 17-1-5711-9, 2000375161, 200037516-1, 5320-00-420-2165, 00-420-2165, 5320004202165, 130917079, 004202165
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAR 1969 | 00-420-2165 | 00864 ( RIVET, BLIND ) |

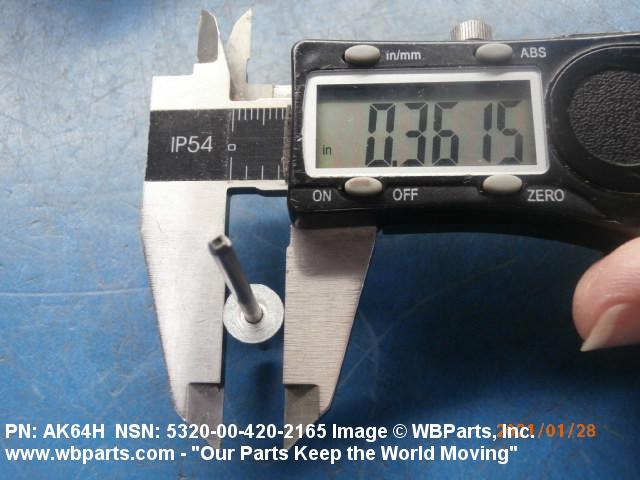

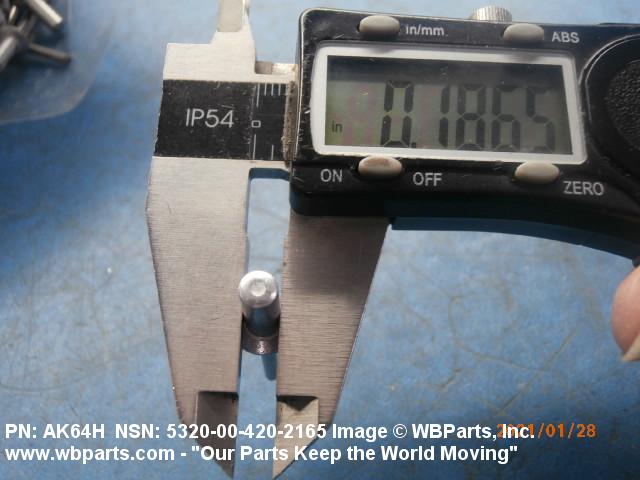

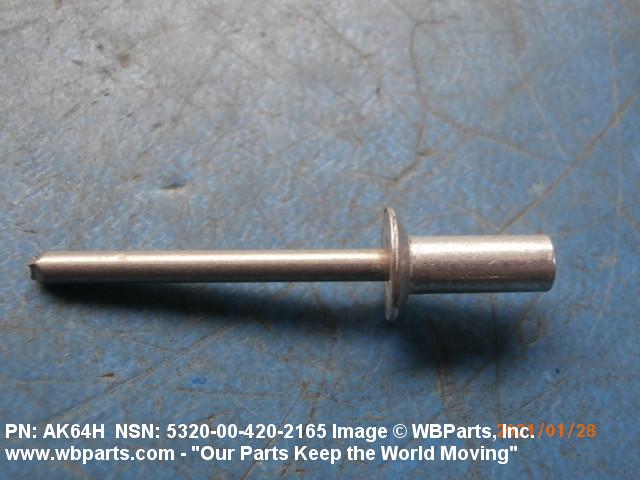

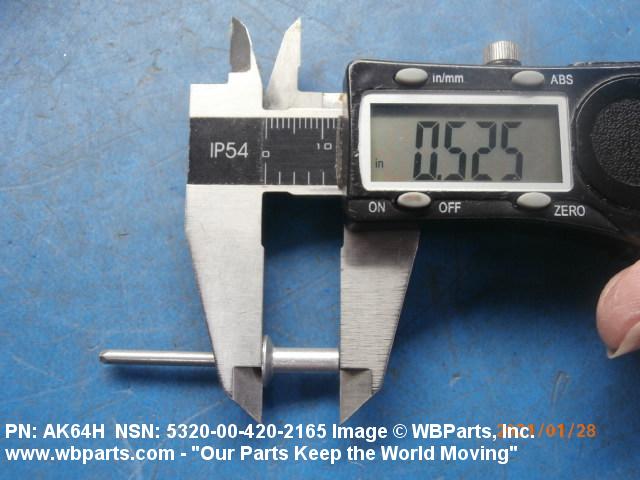

Drawings & Photos | NSN 5320-00-420-2165
Demand History | NSN 5320-00-420-2165
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M242437A604H | 2024-10-285 | 63 | US |
| AK64H | 2021-02-56 | 200 | United States |
| 5320-00-420-2165 | 2021-01-22 | 200 | United States |
| 5320-00-420-2165 | 2017-06-158 | 2952 | US |
| M242437A604H | 2013-10-277 | 100 | United States |
| MILR242437 | 2012-11-310 | 800 | US |
| 5320-00-420-2165 | 2012-09-256 | 1429 | DIBBS |
| M242437A604H | 2011-09-272 | 100 | US |
| 5320-00-420-2165 | 2011-06-160 | 6542 | DIBBS |
| 5320-00-420-2165 | 2011-05-143 | 6500 | DIBBS |
| 5320-00-420-2165 | 2009-08-224 | 7365 | DIBBS |
| 5320-00-420-2165 | 2009-03-76 | 1000 | United States |
| 5320-00-420-2165 | 2009-03-69 | 3008 | DIBBS |
| MILR242437 | 2008-05-135 | 1000 | us |
Cross Reference | NSN 5320-00-420-2165
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 130917079 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 1339AS336-19 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 17-1-5711-9 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| 200037516-1 | 97403 | CECOM LR CENTER |
| 5-4-2001-80 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| 5-4-6922 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| 5-4-6922-1 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| AK64H | 07707 | POP FASTENERS A BLACK AND DECKER CO |
| M24243/7-A604H | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILR24243/7 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
