NSN 5320-00-420-2169 M24243/7-A404H, M24243/7-A604H, M242437A404H
Product Details | BLIND RIVET
5320-00-420-2169 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M24243/7-A404H, M24243/7-A604H, M242437A404H, M242437A604H, AK44H, MILR24243, MIL-R-24243, 13214E37914, 13214E3791-4, 17157114, 17-1-5711-4, 5469183, 5-4-6918-3, 5320-00-420-2169, 00-420-2169, 5320004202169, 004202169
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAR 1969 | 00-420-2169 | 00864 ( RIVET, BLIND ) |

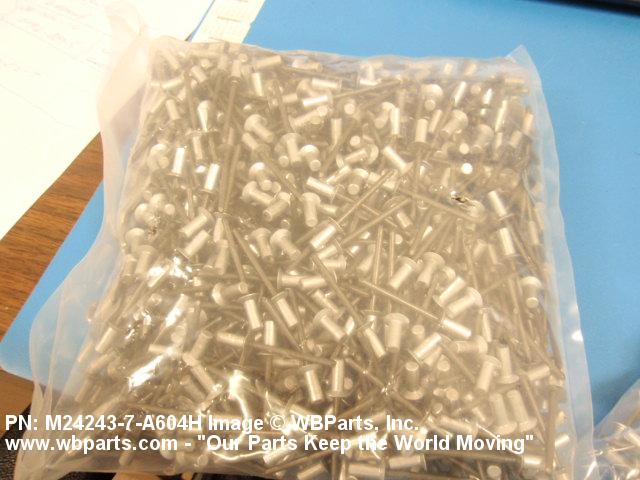

Drawings & Photos | NSN 5320-00-420-2169
Demand History | NSN 5320-00-420-2169
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M242437A604H | 2024-10-285 | 63 | US |
| 5320-00-420-2169 | 2022-05-138 | 274 | DIBBS |
| 5320-00-420-2169 | 2017-06-159 | 50 | US |
| MILR24243 | 2016-11-322 | 5 | US |
| M242437A604H | 2013-10-277 | 100 | United States |
| M242437A604H | 2011-09-272 | 100 | US |
| M242437A404H | 2011-07-195 | 100 | United States |
| MILR24243 | 2011-06-175 | 1500 | US |
| MILR24243 | 2011-06-175 | 1875 | US |
| 5320-00-420-2169 | 2010-09-263 | 624 | DIBBS |
| MILR24243 | 2010-08-242 | 100 | US |
| MILR24243 | 2010-03-88 | 100 | US |
| 5320-00-420-2169 | 2009-03-75 | 220 | DIBBS |
| MILR24243 | 2009-01-26 | 2000 | US |
Cross Reference | NSN 5320-00-420-2169
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13214E3791-4 | 97403 | CECOM LR CENTER |
| 17-1-5711-4 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| 5-4-6918-3 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| AK44H | 07707 | POP FASTENERS A BLACK AND DECKER CO |
| M24243/7-A404H | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24243/7-A604H | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MIL-R-24243 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-420-2169
Related Products | NSN 5320-00-420-2169
Technical Data | NSN 5320-00-420-2169
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 BODY STEEL COMP 1012 OR STEEL COMP 1025 OR STEEL COMP 1045 OR STEEL COMP 1075 MANDREL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE BODY 66 FED STD ALL MATERIAL RESPONSES MANDREL |
| SURFACE TREATMENT | ANODIZE OR CHROMATE BODY ZINC AND CHROMATE OR CADMIUM OR CADMIUM AND CHROMATE OR CADMIUM AND PHOSPHATE OR PHOSPHATE ZINC MANDREL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE BODY QQ-Z-325 TY 2 CL 3 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416 FED SPEC 2ND TREATMENT RESPONSE OR QQ-P-416 FED SPEC 3RD TREATMENT RESPONSE OR QQ-P-416 FED SPEC 4TH TREATMENT RESPONSE OR MIL-P-16232 TY Z CL 2 MIL SPEC 5TH TREATMENT RESPONSE OR MIL-P-16232 TY Z CL 4B MIL SPEC 5TH TREATMENT RESPONSE MANDREL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.229 INCHES MINIMUM AND 0.243 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 120.0 DEGREES MINIMUM AND 124.0 DEGREES MAXIMUM |
| SHANK STYLE | D19 PULL THROUGH HOLLOW SHANK |
| FASTENER LENGTH | 0.442 INCHES MINIMUM AND 0.472 INCHES MAXIMUM |
| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| GRIP LENGTH | 0.188 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EXPANSION DEVICE | PLAIN STEM-TYPE T |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-24243 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24243/7-A404H |
Restrictions/Controls & Freight Information | NSN 5320-00-420-2169
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
