NSN 5320-00-117-6950 MS20426A45, MS20426A4-5, MS20426AD45

Product Details | SOLID RIVET

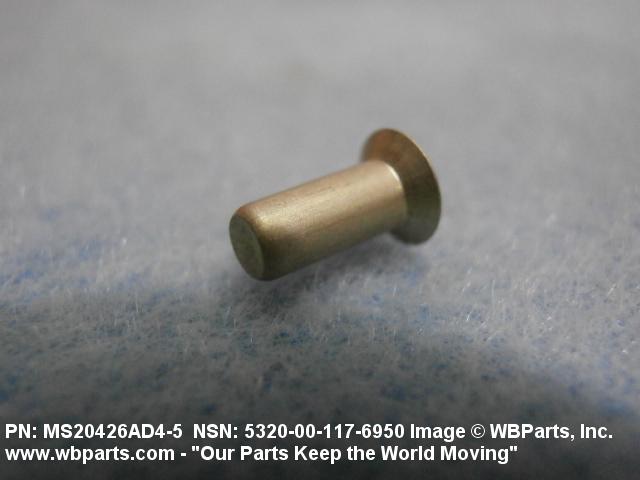

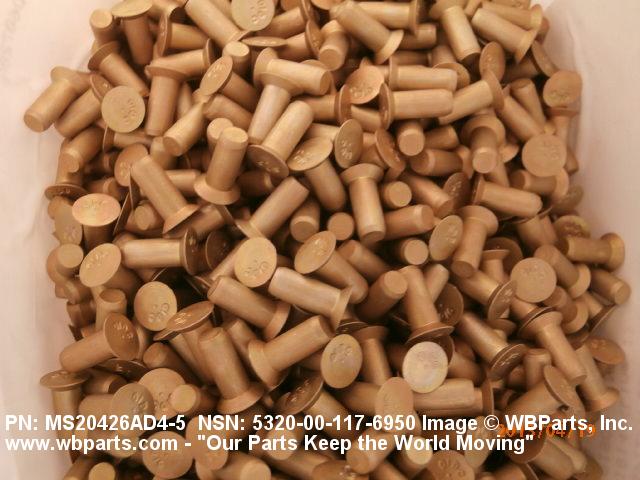

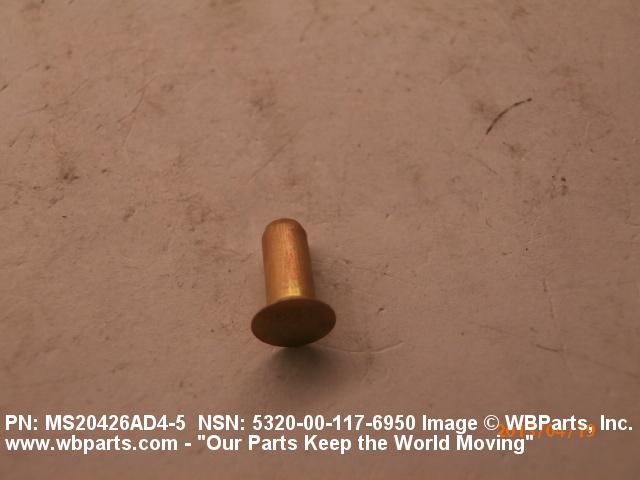

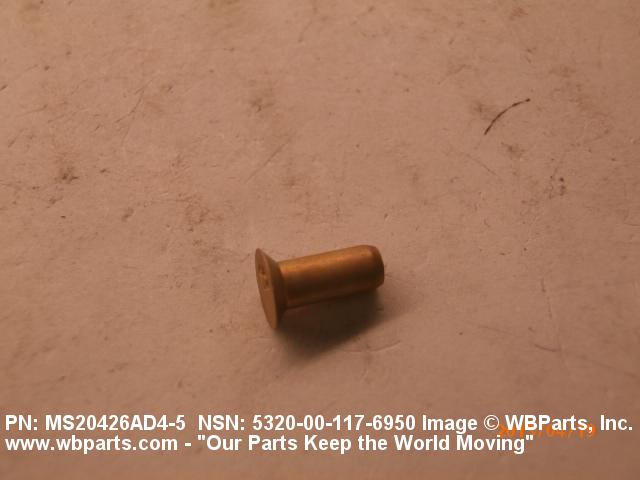

5320-00-117-6950 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.

Part Alternates: MS20426A45, MS20426A4-5, MS20426AD45, MS20426-AD4-5, MS20426AD4-5, MS20426AD47, MS20426AD4-7, MS2042AD45, MS2042AD4-5, AN426A045, AN426A04-5, AN426AD45, AN426AD4-5, AS125290, GHN1000151, GHN10001-51 , LS1105AD45, LS1105AD4-5, LS15947AD45, LS15947AD4-5, 0600248, 0600-248, 10123494 , 20742272203, 2074227-2203, 216MS007P041, 3M268AD45, 3M268AD4-5, 411172-289, 5413463113, 5-4-1346-31-13, 9461254305, 946125-4305, 413719-086, 5320-00-117-6950, 00-117-6950, 5320001176950, 001176950, 413719086, 411172289

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-117-6950	00861 ( RIVET, SOLID )

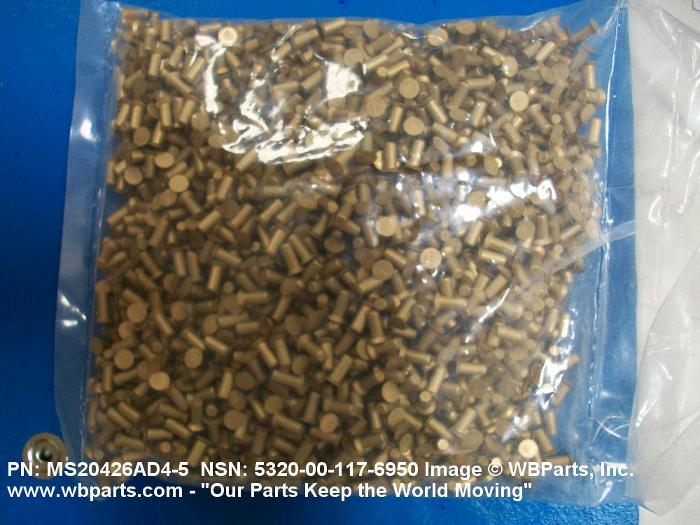

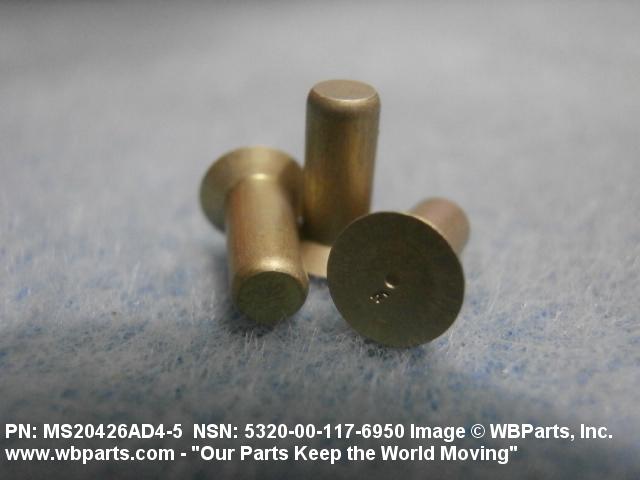

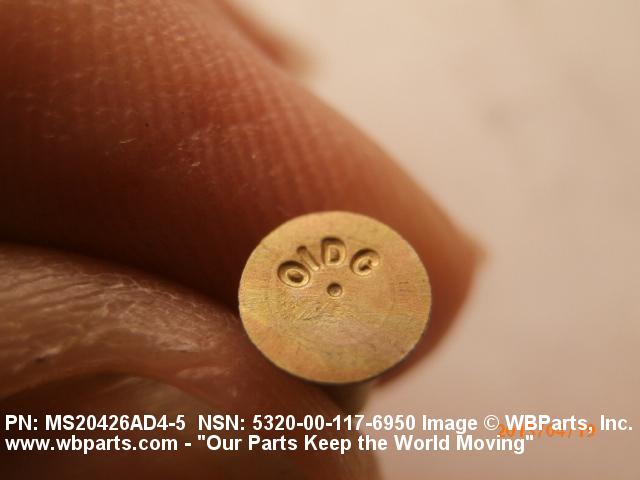

Drawings & Photos | NSN 5320-00-117-6950

Part Number	Request Date	QTY	Origin
MS20426AD45	2024-11-326	100	Japan
MS20426AD47	2024-10-289	98	US
5320-00-117-6950	2024-09-274	500	Singapore
MS20426AD45	2024-08-215	120	Japan
MS20426AD45	2024-04-101	936	United States
MS20426AD45	2024-04-99	936	United States
MS20426AD45	2024-03-85	30	US
MS20426AD45	2023-11-333	372	United States
MS20426AD47	2023-11-333	48	United States
MS20426AD45	2023-09-249	1	MA
MS20426AD45	2023-07-207	40	US
MS20426AD4-7	2023-05-151	1	Philippines
MS20426AD47	2022-10-283	100	Malaysia
MS20426AD45	2022-09-265	3000	United States
AN426AD45	2022-05-125	1000	Mexico
MS20426AD45	2022-04-108	120	United States
MS20426AD47	2022-01-07	8	United States
MS20426AD47	2021-11-314	10	United States
MS20426AD4-5	2021-02-53	250	BD
MS20426AD4-7	2021-02-53	250	BD
MS20426AD47	2020-10-279	2400	US
MS20426AD47	2020-10-279	8000	US
MS20426AD47	2020-10-279	40000	US
MS20426AD47	2020-10-279	80000	US
MS20426AD47	2020-10-279	200000	US
MS20426AD47	2020-10-279	400000	US
AN426AD45	2020-07-210	1	Egypt
AN426AD45	2020-07-197	1	Egypt
MS20426AD4-7	2020-06-174	400	Hong Kong
MS20426AD4-5	2020-05-147	1000	US
MS20426AD45	2019-10-304	550	IN
MS20426AD47	2019-05-133	10000	PK
MS20426AD45	2019-02-56	1	United States
MS20426AD4-7	2018-11-310	2640	Israel
MS20426AD45	2018-10-290	100	US
MS20426AD45	2018-10-290	1000	US
MS20426AD47	2018-03-75	3200	PK
MS20426AD45	2018-02-57	1	United States
5320-00-117-6950	2018-02-42	376	DIBBS
5320-00-117-6950	2017-11-333	749	DIBBS
5320-00-117-6950	2017-05-136	1	Malaysia
5320-00-117-6950	2017-02-53	45	MANUAL
MS20426AD45	2016-12-347	100	United States
MS20426AD45	2016-11-309	1	Thailand
MS20426AD47	2016-09-253	2000	US
MS20426AD47	2016-08-244	176	United States
MS20426AD47	2016-06-181	176	US
MS20426AD45	2016-04-112	6	US
MS20426AD45	2016-04-110	200	us
MS20426AD47	2016-04-110	300	us
MS20426AD4-5	2016-04-96	1200	Romania
MS20426AD4-5	2016-04-96	1200	Romania
MS20426AD45	2016-03-82	1	US
MS20426AD47	2016-01-22	1	MX
MS20426A45	2015-08-238	100	United States
MS20426AD4-5	2015-06-156	24	United States
MS20426AD4-5	2015-06-156	1000	United States
AN426AD4-5	2015-05-138	47	United States
AN426AD4-5	2015-05-138	238	United States
AN426AD4-5	2015-05-138	47	United States
AN426AD4-5	2015-05-138	238	United States
MS20426AD45	2015-04-105	1	United States
MS20426AD45	2015-04-104	1	United States
MS20426AD47	2015-01-20	50	US
MS20426AD47	2014-05-134	3000	Romania
MS20426AD47	2014-04-98	100	United States
MS20426AD45	2014-02-58	2450	UM
5320-00-117-6950	2014-02-49	30	MY
5320-00-117-6950	2014-02-49	30	MY
MS20426AD45	2014-01-30	6000	United States
MS20426AD45	2013-10-283	60	United States
MS20426AD45	2013-09-269	90	us
MS20426AD47	2013-08-226	400	United States
5320-00-117-6950	2013-07-205	12	US
MS20426AD47	2013-07-182	9937	United States
MS20426A45	2013-04-100	1250	United States
MS20426AD45	2013-04-100	1250	United States
MS20426AD45	2012-12-341	200	US
MS20426AD45	2012-12-340	580	United States
MS20426AD47	2012-08-237	560	United States
MS20426AD45	2012-08-234	1000	PT
MS20426AD4-7	2012-05-132	576	IL
MS20426AD47	2012-05-130	576	Israel
5320-00-117-6950	2012-04-109	5852	US
MS20426A45	2012-04-100	100	IN
5320-00-117-6950	2012-03-74	8	United States
5320-00-117-6950	2012-03-68	4	United States
AN426AD4-5	2012-03-67	17600	China
AN426AD4-5	2012-03-67	17600	China
MS20426AD47	2012-02-40	250	United States
MS20426AD47	2011-11-334	15	US
MS20426AD45	2011-11-333	20000	Spain
MS20426AD47	2011-11-333	400	Spain
MS20426AD47	2011-11-313	175	US
5320-00-117-6950	2011-09-250	500	SG
MS20426AD45	2011-06-180	3	United States
MS20426AD47	2011-06-180	1	United States
MS20426AD45	2011-05-139	30	United States
MS20426AD45	2011-05-130	2100	Canada
MS20426A45	2011-03-83	5000	US
MS20426AD47	2011-03-80	100	US
MS20426A45	2011-03-64	1	US
MS20426AD45	2011-03-61	40000	IN
MS20426AD45	2011-02-48	395	United States
MS20426AD45	2011-02-47	396	United States
MS20426AD45	2011-02-34	1	US
MS20426AD47	2011-02-34	1	US
MS20426AD45	2011-01-28	100	United States
MS20426AD45	2010-12-356	1	Italy
AS125290	2010-12-355	250	United Kingdom
MS20426AD45	2010-12-355	250	United Kingdom
5320-00-117-6950	2010-11-308	130	US
MS20426AD45	2010-10-293	396	US
MS20426AD45	2010-09-273	50	US
MS20426A45	2010-08-218	132	United States
MS20426AD45	2010-06-166	5000	Singapore
MS20426AD45	2010-05-130	5000	Singapore
5320-00-117-6950	2010-04-102	4	PK
5320-00-117-6950	2010-03-70	12	India
5320-00-117-6950	2010-03-70	24	India
AN426AD45	2010-02-39	5	Indonesia
5320-00-117-6950	2010-01-06	48	us
5320-00-117-6950	2010-01-06	8	us
5320-00-117-6950	2009-11-309	12	Italy
5320-00-117-6950	2009-10-275	11400	Malta
5320-00-117-6950	2009-09-252	50	US
MS20426AD47	2009-07-190	400	US
MS20426AD45	2008-12-337	25	United States
MS20426AD45	2008-11-319	200	United States
5320-00-117-6950	2008-11-309	10	US
5320-00-117-6950	2008-10-290	25	us
AS125290	2008-09-274	5000	United Kingdom
MS20426A45	2008-09-266	400	US
5320-00-117-6950	2008-09-262	110	US
MS20426AD45	2008-08-240	90	United States
MS20426AD45	2008-08-219	96	United States
MS20426AD45	2008-08-218	24	United States
5320-00-117-6950	2008-07-202	4	US
5320-00-117-6950	2008-05-136	500	US
AN426AD45	2008-04-93	500	India
5320-00-117-6950	2008-02-44	94500	US
5320-00-117-6950	2008-02-39	50	United States
MS20426AD45	2007-11-325	5	Iraq
MS20426AD45	2007-05-142	1000	US
5320-00-117-6950	2007-05-122	30000	China
5320-00-117-6950	2007-05-122	70000	China

Cross Reference | NSN 5320-00-117-6950

Part Number	Cage Code	Manufacturer
0600-248	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
2074227-2203	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
216MS007P041	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
3M268AD4-5	53551	ALLFAST FASTENING SYSTEMS, LLC
3M268AD4-5	76301	BOEING COMPANY, THE DBA BOEING
411172-289	96214	RAYTHEON COMPANY DBA RAYTHEON
413719-086	02964	AMERICAN STERILIZER COMPANY DBA AMSCO STERILITY ASSURANCE
413719-086	0NWN1	STERIS CORPORATION
5-4-1346-31-13	05699	BRUNSWICK CORP DEFENSE DIV
5-4-1346-31-13	81337	ARMY, UNITED STATES DEPARTMENT OF THE
946125-4305	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
AN426A04-5	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN426AD4-5	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS125290	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
LS1105AD4-5	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
LS15947AD4-5	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS20426-AD4-5	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS20426A4-5	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS20426AD4-5	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS20426AD4-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS20426AD4-7	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS2042AD4-5	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-117-6950

Compare

Related Products | NSN 5320-00-117-6950

5320-00-117-6951, 5320-00-117-6952, 5320-00-117-6953, 5320-00-117-6954, 5320-00-117-6955

Technical Data | NSN 5320-00-117-6950

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2117 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OR OXIDE FILM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL
SHEAR STRENGTH	26000 SINGLE POUNDS PER SQUARE INCH

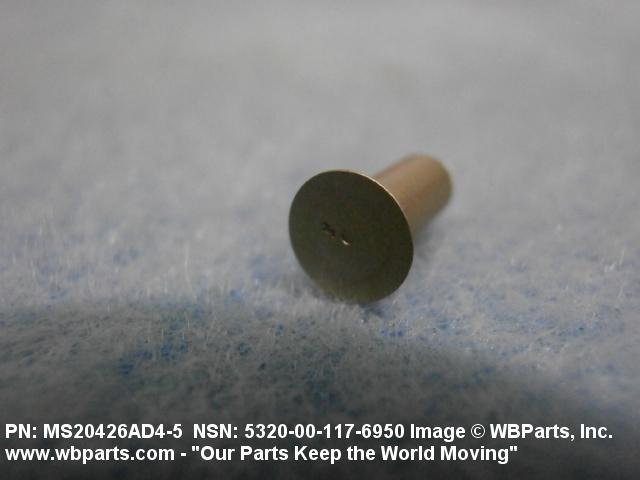

HEAD STYLE	C9 FLUSH COUNTERSUNK
HEAD MAJOR DIAMETER	0.221 INCHES MINIMUM AND 0.229 INCHES MAXIMUM
COUNTERSINK ANGLE	99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM
SHANK STYLE	D10 STRAIGHT WITH RADIUS CHAMFERED TIP

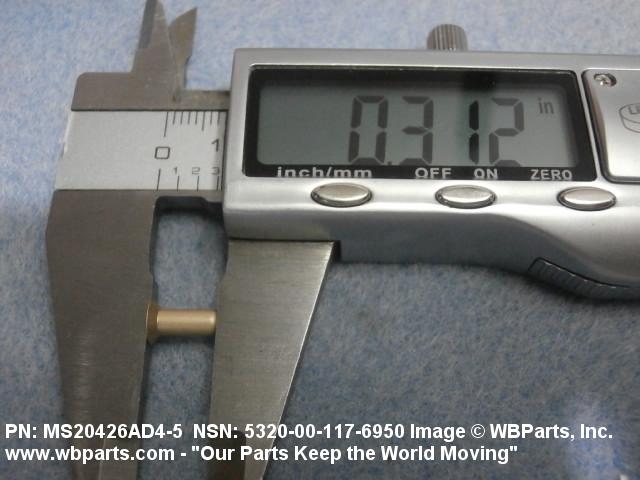

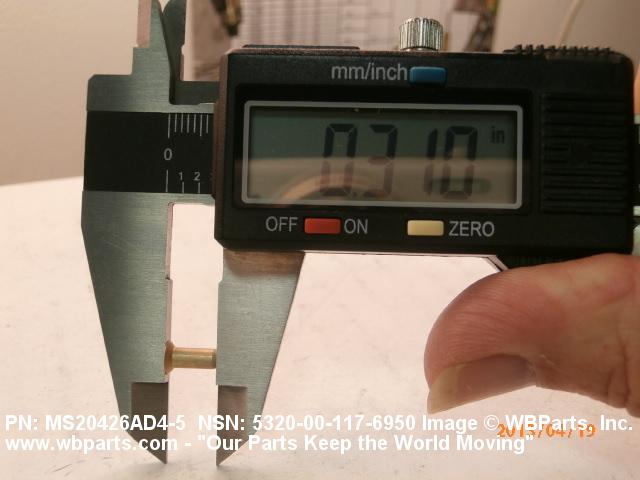

FASTENER LENGTH	0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM

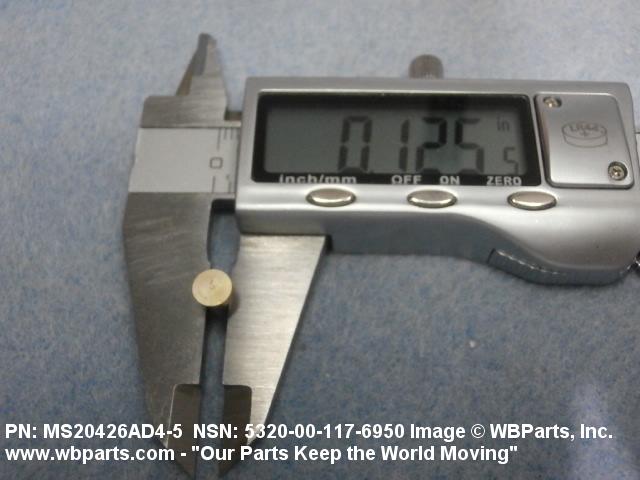

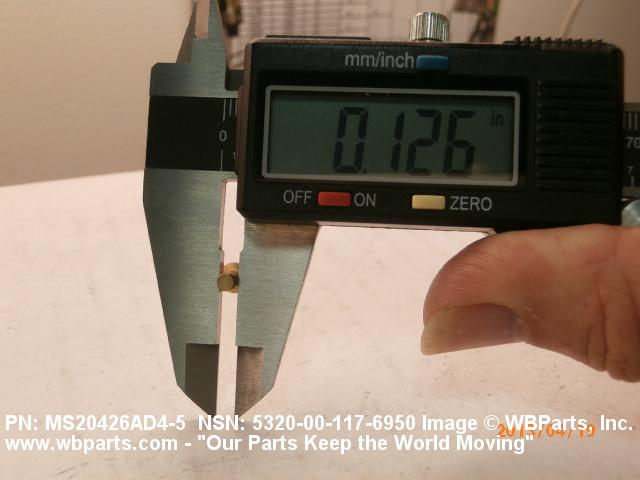

SHANK DIAMETER	0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM
GRIP LENGTH	0.124 INCHES NOMINAL
III END ITEM IDENTIFICATION	W/S: DEFF COMM METEORL (AN/TMQ-028,AN/TCC-76,AN/TPS-068, AN/TCC-77); AIRCRAFT, AC-130H, MC-130H, EC-130E, HC-130); SUPPORT EQUIPMENT, B-1 AIRCRAFT; AIRBORNE MOBILE DIR AIR SPT CTL (2ID), (02MJUL83)(AN/UYQ-3A); SUPPORT EQUIPMENT, B-52 AIRCRAFT; MISSILE, ADVANCED MEDIUM RANGE AIR-TO-AIR (AMRAAM)/AIM120A; COMMUNICATIONS TERMINAL, SATELLITE AN/GSC-39(V)1; ENGINE, AIRCRAFT TF33-PW-102 (C-135E, EC-135H/K/P); CENTRAL MESSAGE SWITCH, AN/TYC-39A

Restrictions/Controls & Freight Information | NSN 5320-00-117-6950

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-00-117-6950

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	GC	TG:UH/60A BLACKHAWK
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds
