NSN 5320-00-117-6952 MS20426AD47, MS20426AD4-7, AN426AD47
Product Details | SOLID RIVET
5320-00-117-6952 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20426AD47, MS20426AD4-7, AN426AD47, AN426AD4-7, AS125292, AS2229407, AS2229-407, AS2230407, AS2230-407, GHN1000155, GHN10001-55 , P126000124, 7903733-25, 10123495 , 411172-291 , 5320-00-117-6952, 00-117-6952, 5320001176952, 790373325, 001176952, 411172291
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-117-6952 | 00861 ( RIVET, SOLID ) |

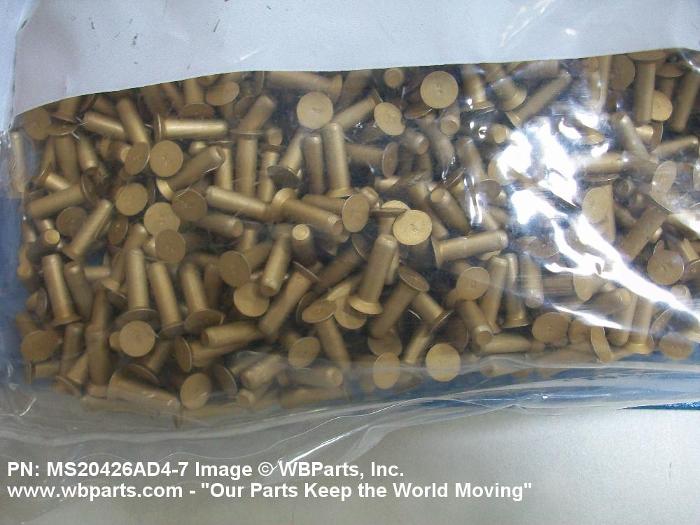

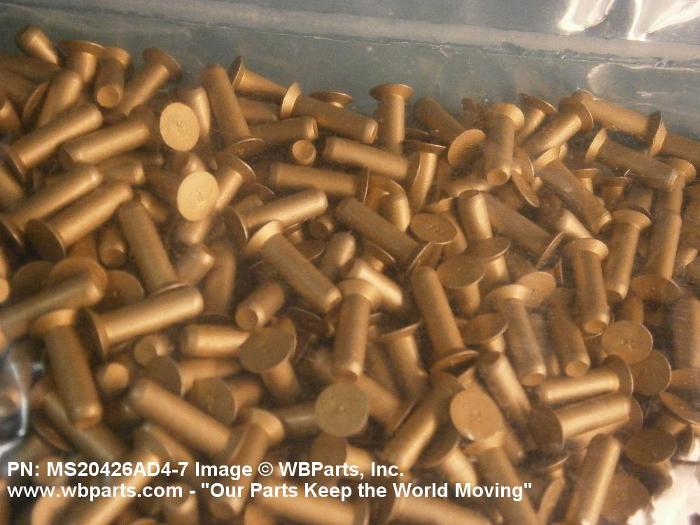

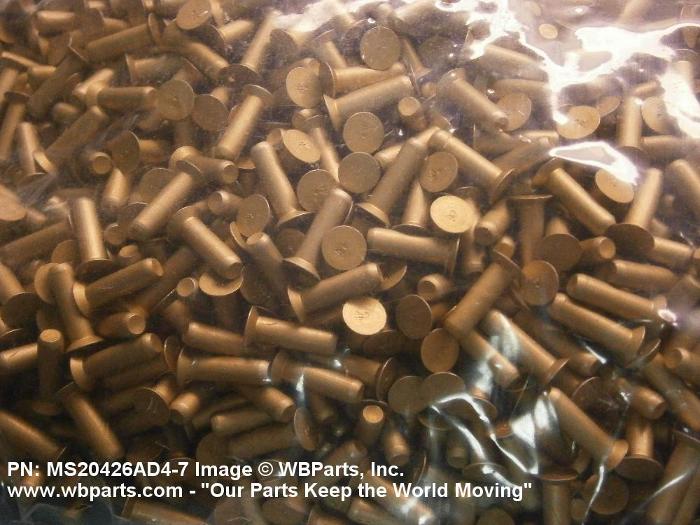

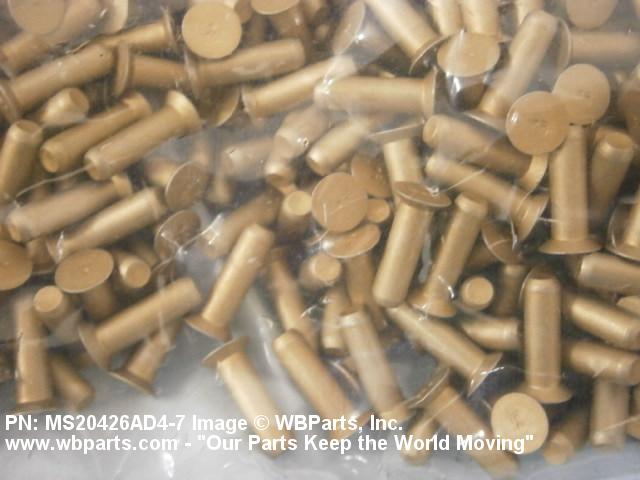

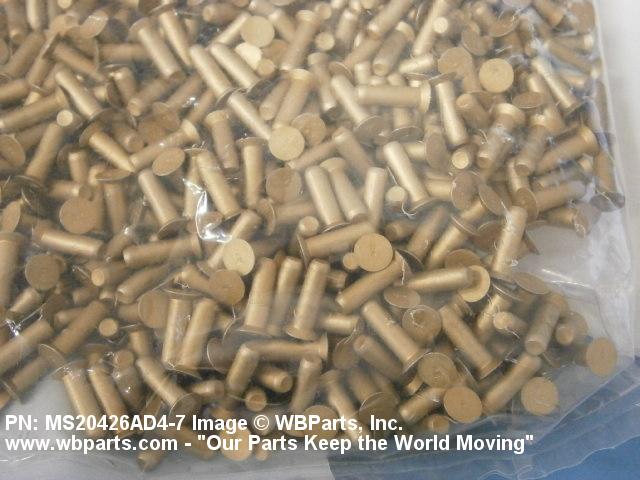

Drawings & Photos | NSN 5320-00-117-6952
Demand History | NSN 5320-00-117-6952
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20426AD47 | 2024-10-289 | 98 | US |
| MS20426AD47 | 2023-11-333 | 48 | United States |
| MS20426AD4-7 | 2023-05-151 | 1 | Philippines |
| MS20426AD47 | 2022-10-283 | 100 | Malaysia |
| MS20426AD47 | 2022-01-07 | 8 | United States |
| MS20426AD47 | 2021-11-314 | 10 | United States |
| MS20426AD4-7 | 2021-02-53 | 250 | BD |
| 5320-00-117-6952 | 2020-12-337 | 1 | DIBBS-RFPs |
| MS20426AD47 | 2020-10-279 | 2400 | US |
| MS20426AD47 | 2020-10-279 | 8000 | US |
| MS20426AD47 | 2020-10-279 | 40000 | US |
| MS20426AD47 | 2020-10-279 | 80000 | US |
| MS20426AD47 | 2020-10-279 | 200000 | US |
| MS20426AD47 | 2020-10-279 | 400000 | US |
| AN426AD47 | 2020-07-210 | 1 | Egypt |
| MS20426AD4-7 | 2020-06-174 | 400 | Hong Kong |
| MS20426AD47 | 2019-05-133 | 10000 | PK |
| 5320-00-117-6952 | 2019-05-121 | 10000 | US |
| MS20426AD4-7 | 2018-11-310 | 2640 | Israel |
| MS20426AD47 | 2018-03-75 | 3200 | PK |
| MS20426AD47 | 2016-09-253 | 2000 | US |
| MS20426AD47 | 2016-08-244 | 176 | United States |
| MS20426AD47 | 2016-06-181 | 176 | US |
| MS20426AD47 | 2016-04-110 | 300 | us |
| MS20426AD47 | 2016-01-22 | 1 | MX |
| MS20426AD47 | 2015-01-20 | 50 | US |
| MS20426AD47 | 2014-05-134 | 3000 | Romania |
| MS20426AD47 | 2014-04-98 | 100 | United States |
| MS20426AD47 | 2013-08-226 | 400 | United States |
| MS20426AD47 | 2013-07-182 | 9937 | United States |
| MS20426AD47 | 2012-08-237 | 560 | United States |
| MS20426AD4-7 | 2012-05-132 | 576 | IL |
| MS20426AD47 | 2012-05-130 | 576 | Israel |
| MS20426AD47 | 2012-02-40 | 250 | United States |
| MS20426AD47 | 2011-11-334 | 15 | US |
| MS20426AD47 | 2011-11-333 | 400 | Spain |
| MS20426AD47 | 2011-11-313 | 175 | US |
| MS20426AD47 | 2011-06-180 | 1 | United States |
| 5320-00-117-6952 | 2011-05-144 | 700 | US |
| MS20426AD47 | 2011-03-80 | 100 | US |
| MS20426AD47 | 2011-02-34 | 1 | US |
| 5320-00-117-6952 | 2010-04-102 | 4 | PK |
| MS20426AD47 | 2009-07-190 | 400 | US |
| 5320-00-117-6952 | 2008-09-259 | 1000 | Malaysia |
| 5320-00-117-6952 | 2007-06-157 | 20 | United Kingdom |
Cross Reference | NSN 5320-00-117-6952
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 411172-291 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 7903733-25 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AN426AD4-7 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS125292 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS2229-407 | U1653 | SOCIETY OF BRITISH AEROSPACE COMPANI LTD SBAC |
| AS2230-407 | U1653 | SOCIETY OF BRITISH AEROSPACE COMPANI LTD SBAC |
| MS20426AD4-7 | 0NFB8 | DIALOGIC CORP. DBA DIALOGIC FASTENERS |
| MS20426AD4-7 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20426AD4-7 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| P126000124 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-117-6952
Related Products | NSN 5320-00-117-6952
Technical Data | NSN 5320-00-117-6952
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |

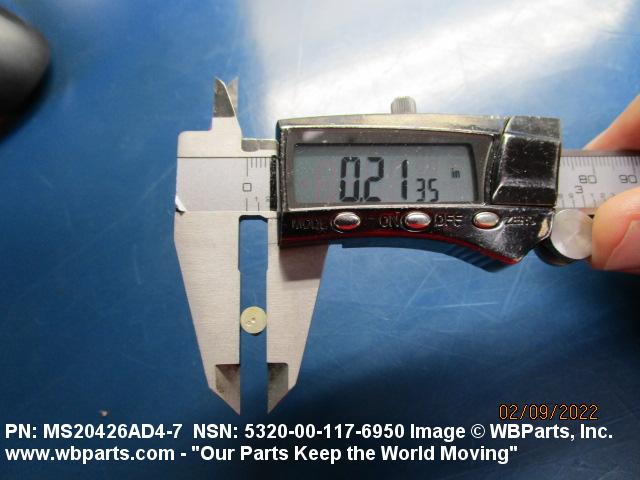

| HEAD MAJOR DIAMETER | 0.221 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |

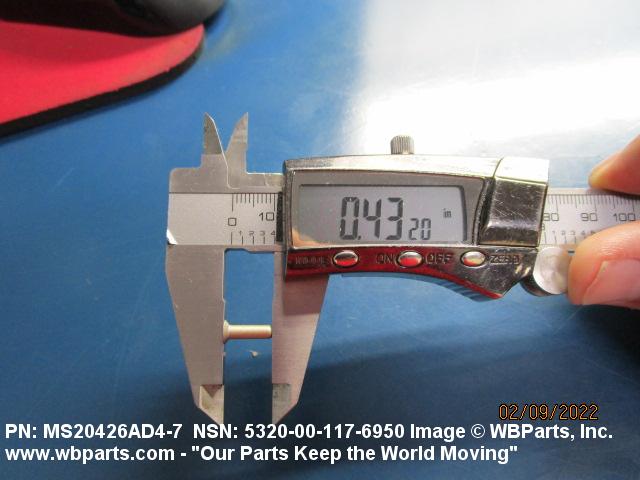

| FASTENER LENGTH | 0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |

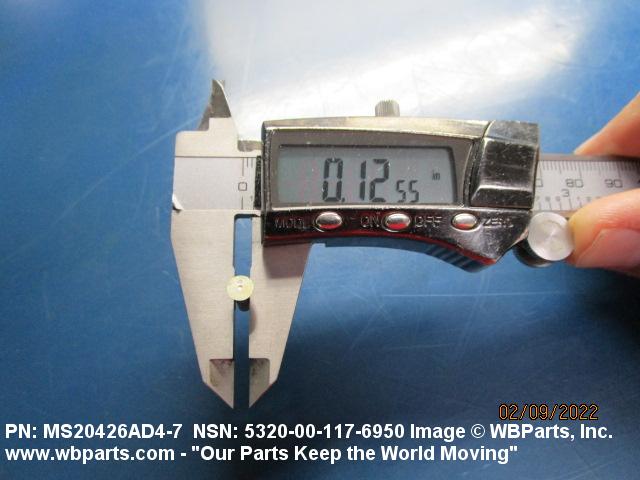

| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
