NSN 5320-00-117-6941 MS20426AD37, MS20426AD3-7, M520426AD37
Product Details | SOLID RIVET

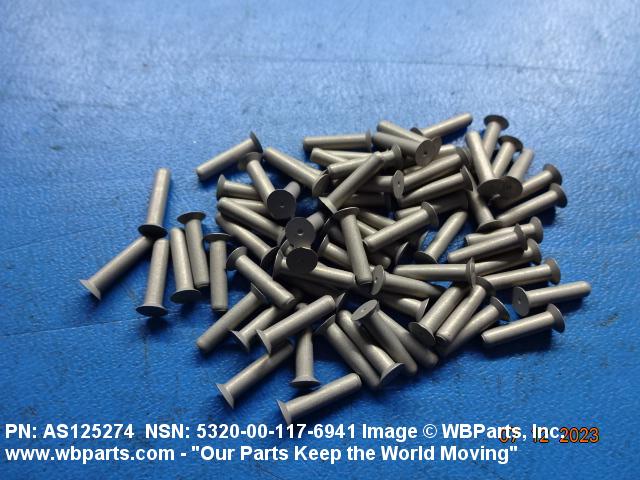

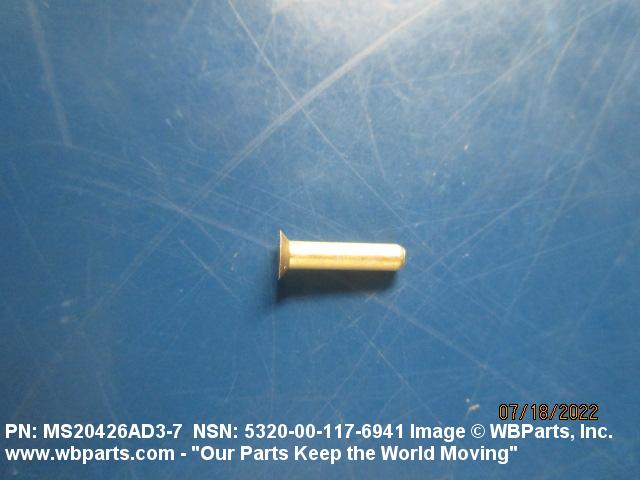

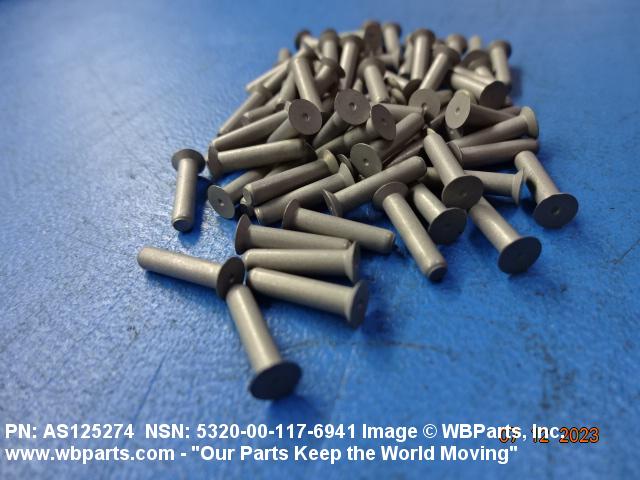

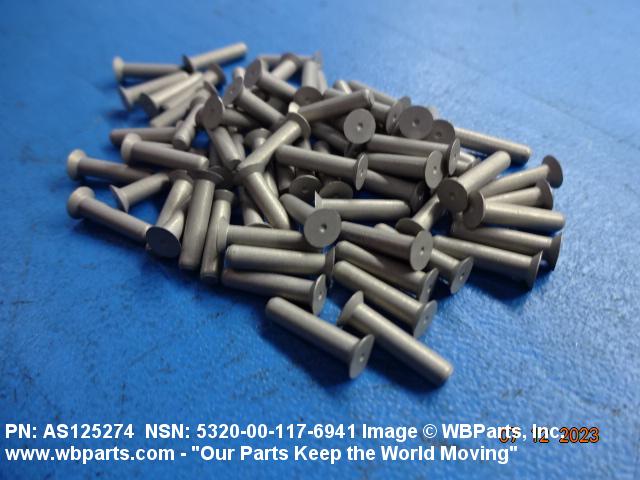

5320-00-117-6941 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20426AD37, MS20426AD3-7, M520426AD37, M520426AD3-7, NASM5674, AN426AD37, AN426AD3-7, AS125274, GHN1000126, GHN10001-26 , MILR5674, 10123487 , 34390037, 3439-0037, 5320-00-117-6941, 00-117-6941, 5320001176941 , 001176941
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-117-6941 | 00861 ( RIVET, SOLID ) |
Drawings & Photos | NSN 5320-00-117-6941
Demand History | NSN 5320-00-117-6941
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-117-6941 | 2024-08-225 | 80 | United States |
| MS20426AD37 | 2024-07-211 | 10931 | United States |
| MS20426AD37 | 2024-06-171 | 500 | United States |
| MS20426AD37 | 2024-05-136 | 1470 | United States |
| 5320-00-117-6941 | 2024-04-93 | 80 | United States |
| 5320-00-117-6941 | 2024-04-92 | 80 | United States |
| MS20426AD37 | 2024-03-67 | 12 | United States |
| 5320-00-117-6941 | 2023-07-186 | 20 | United States |
| MS20426AD37 | 2023-03-89 | 30 | US |
| MS20426AD37 | 2022-07-193 | 1 | United States |
| MS20426AD3-7 | 2020-06-174 | 1600 | Hong Kong |
| MS20426AD37 | 2019-09-253 | 356 | Australia |
| MS20426AD37 | 2019-08-233 | 256 | United States |
| MS20426AD37 | 2019-02-36 | 4 | Australia |
| AN426AD37 | 2018-10-292 | 1118 | South Africa |
| MS20426AD37 | 2018-06-159 | 6 | us |
| MS20426AD37 | 2017-12-349 | 85 | US |
| MS20426AD37 | 2017-02-44 | 1536 | US |
| MS20426AD37 | 2017-01-04 | 1 | Malaysia |
| AN426AD37 | 2016-05-140 | 600 | US |
| AN426AD37 | 2016-05-140 | 3000 | US |
| MS20426AD37 | 2016-01-28 | 2 | United States |
| MS20426AD37 | 2016-01-28 | 6 | United States |
| MS20426AD37 | 2014-12-337 | 9 | United States |
| MS20426AD37 | 2014-06-168 | 1 | Japan |
| MS20426AD37 | 2014-01-30 | 5000 | United States |
| MS20426AD37 | 2013-10-302 | 12 | United States |
| MS20426AD37 | 2013-08-213 | 40 | US |
| MILR5674 | 2013-06-164 | 1 | US |
| MS20426AD37 | 2013-04-102 | 50 | US |
| MS20426AD37 | 2013-03-70 | 48 | ID |
| MS20426AD3-7 | 2012-11-334 | 33 | US |
| 34390037 | 2012-05-139 | 50 | United States |
| MS20426AD3-7 | 2012-03-82 | 8 | US |
| MS20426AD37 | 2012-03-73 | 144 | Israel |
| MS20426AD37 | 2011-10-292 | 52 | US |
| 5320-00-117-6941 | 2011-05-130 | 800 | United States |
| MS20426AD37 | 2011-05-129 | 1440 | United States |
| MILR5674 | 2011-02-48 | 50 | US |
| MS20426AD37 | 2011-02-34 | 1 | US |
| 5320-00-117-6941 | 2010-12-364 | 50 | US |
| MS20426AD37 | 2010-12-362 | 200 | US |
| MS20426AD37 | 2010-12-347 | 1000 | US |
| MS20426AD37 | 2010-10-292 | 80 | South Korea |
| AN426AD37 | 2010-09-266 | 2 | US |
| 5320-00-117-6941 | 2010-05-138 | 2 | us |
| 5320-00-117-6941 | 2010-04-102 | 5 | PK |
| 5320-00-117-6941 | 2009-08-223 | 3200 | Spain |
| 5320-00-117-6941 | 2009-04-93 | 1000 | Turkey |
| 5320-00-117-6941 | 2009-04-93 | 1000 | Turkey |
| 5320-00-117-6941 | 2009-04-93 | 1000 | Turkey |
| MS20426AD37 | 2008-12-346 | 100 | United States |
| 5320-00-117-6941 | 2008-10-294 | 484 | DIBBS |
| 5320-00-117-6941 | 2008-10-290 | 50 | us |
| 5320-00-117-6941 | 2008-09-259 | 1000 | Malaysia |
| 5320-00-117-6941 | 2008-08-241 | 200 | India |
| 5320-00-117-6941 | 2008-08-221 | 8 | US |
| 5320-00-117-6941 | 2008-07-203 | 325 | United States |
| MS20426AD37 | 2008-03-65 | 500 | United States |
| 5320-00-117-6941 | 2008-01-23 | 525 | DIBBS |
| 5320-00-117-6941 | 2007-04-94 | 1920 | US |
Cross Reference | NSN 5320-00-117-6941
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3439-0037 | 13467 | ASSOCIATED INDUSTRIES A DIV OF ARNOLD A SEMLER INC |
| 3439-0037 | 19397 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 3439-0037 | 63409 | TREMETRICS INC DIV OF FINNIGAN |
| 5320001176941 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| AN426AD3-7 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS125274 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M520426AD3-7 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MILR5674 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MILR5674 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS20426AD3-7 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20426AD3-7 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NASM5674 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-117-6941
Related Products | NSN 5320-00-117-6941
Technical Data | NSN 5320-00-117-6941

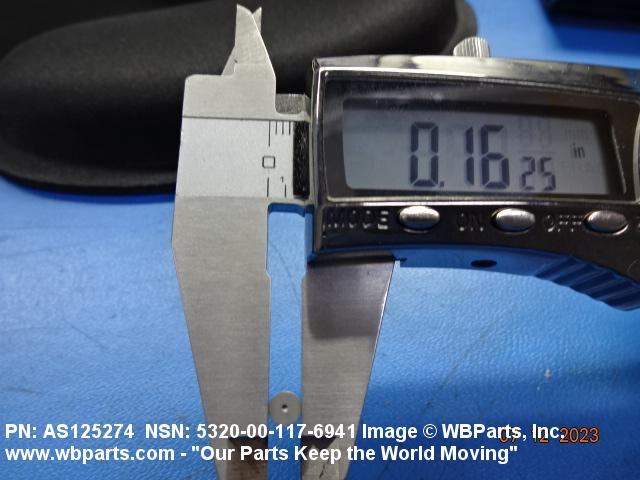

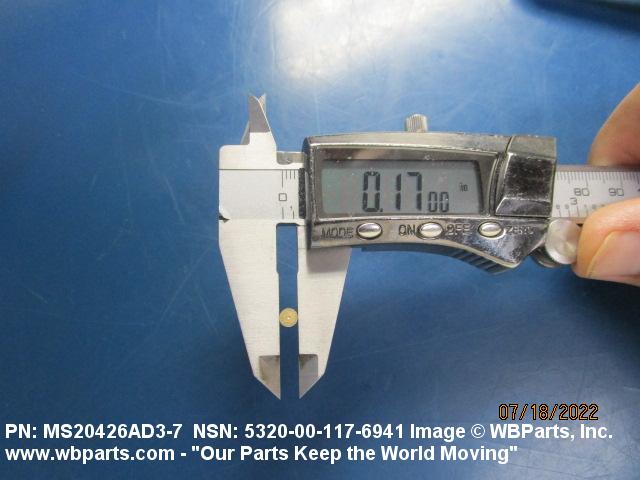

| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.175 INCHES MINIMUM AND 0.183 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |

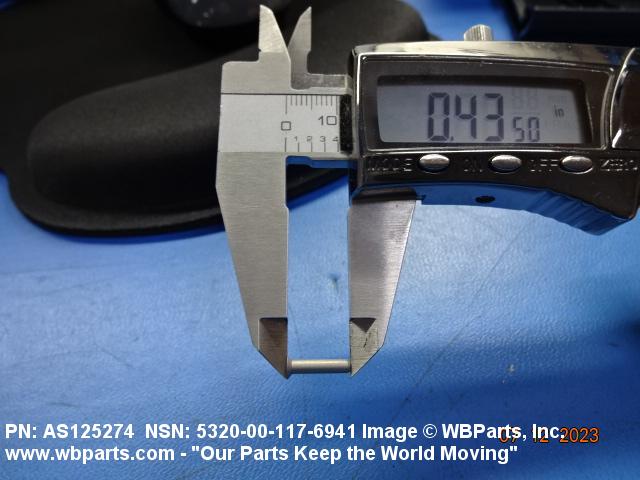

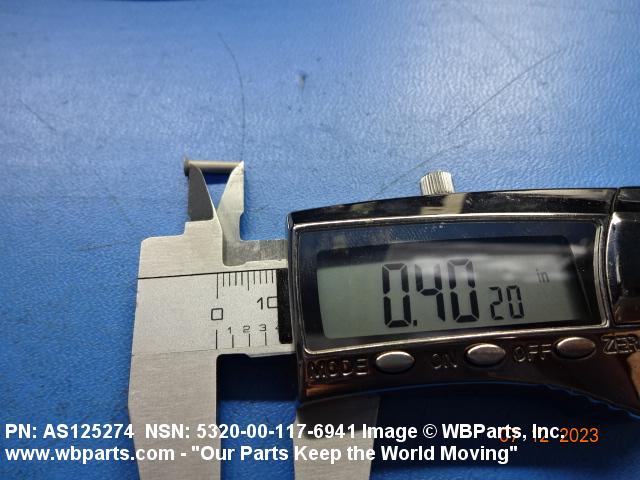

| FASTENER LENGTH | 0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |

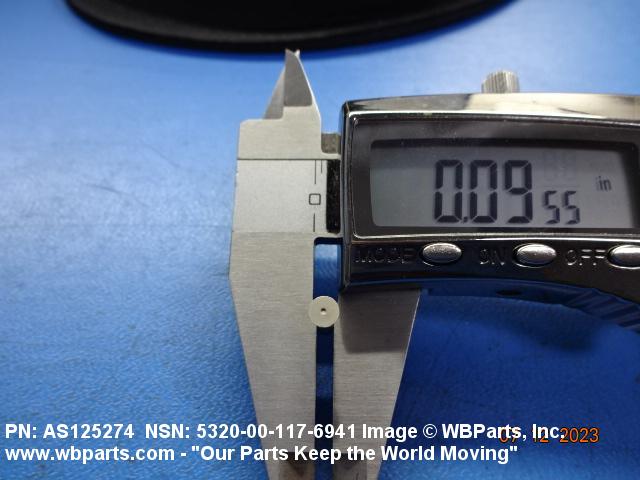

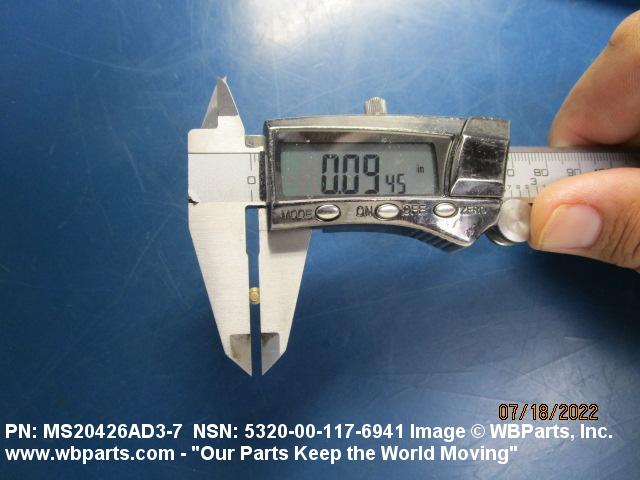

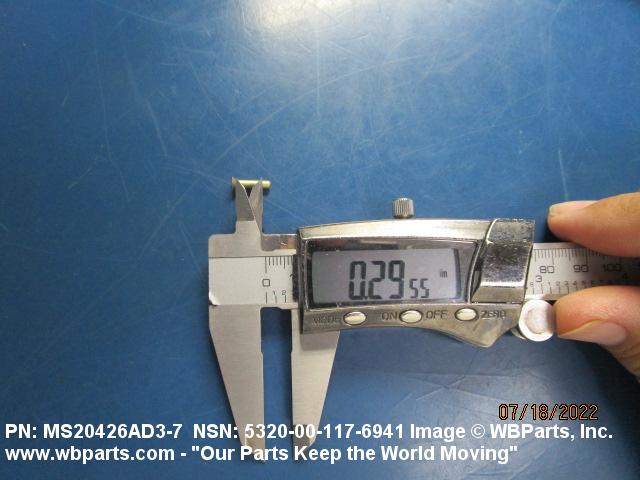

| SHANK DIAMETER | 0.093 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| GRIP LENGTH | 0.297 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5320-00-117-6941
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
