NSN 5320-00-117-6942 MS20426AD38, MS20426AD3-8, AN426AD38
Product Details | SOLID RIVET

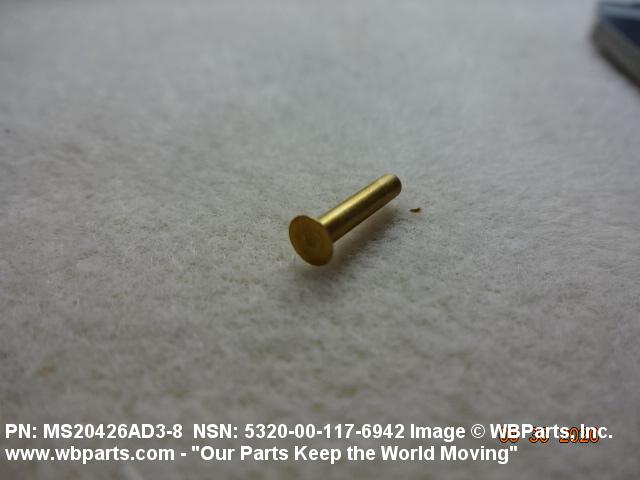

5320-00-117-6942 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20426AD38, MS20426AD3-8, AN426AD38, AN426AD3-8, AS2229308, AS2229-308, GHN1000128, GHN10001-28 , 0600183, 0600-183, 10123488 , 105561, 34390038, 3439-0038, 85488400, 854884-00, 5320-00-117-6942, 00-117-6942, 5320001176942 , 001176942
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-117-6942 | 00861 ( RIVET, SOLID ) |

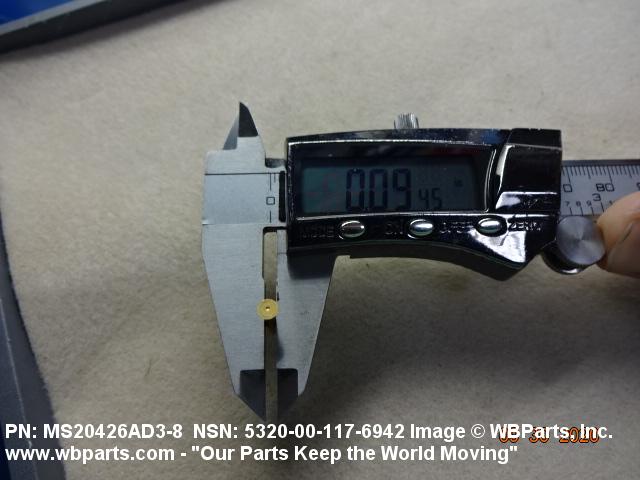

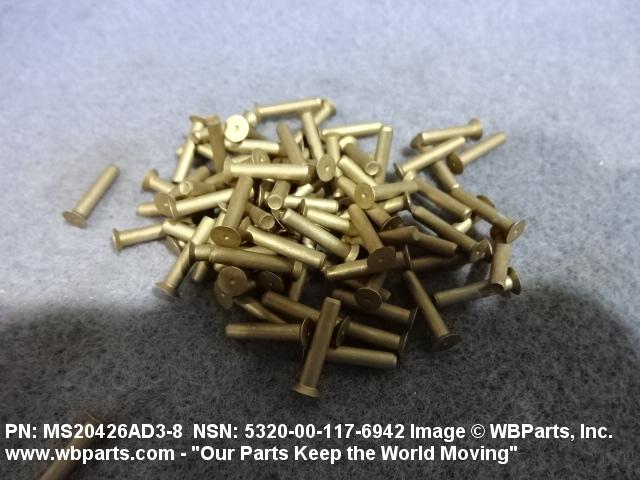

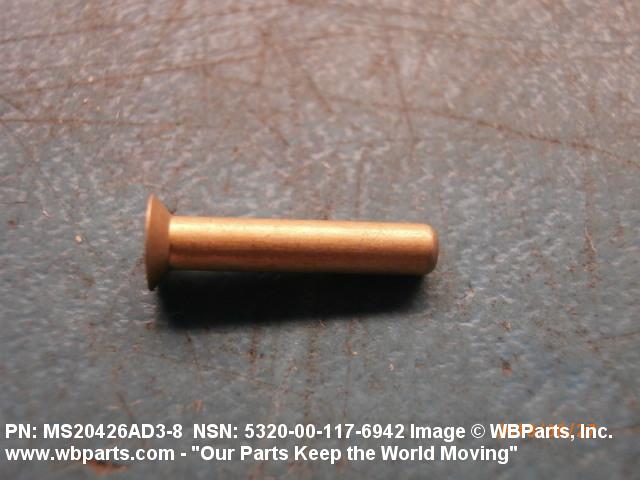

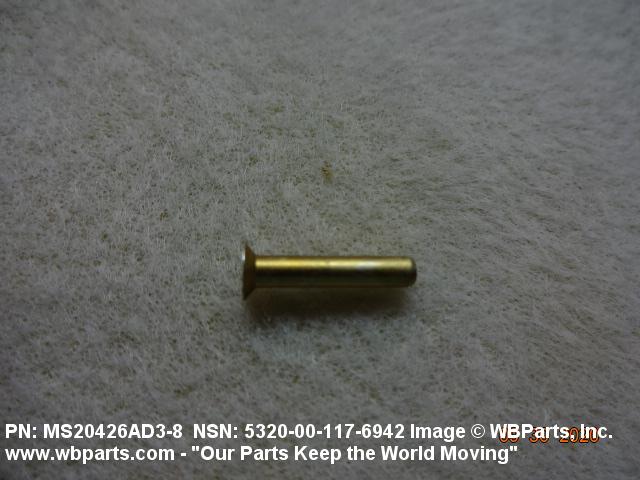

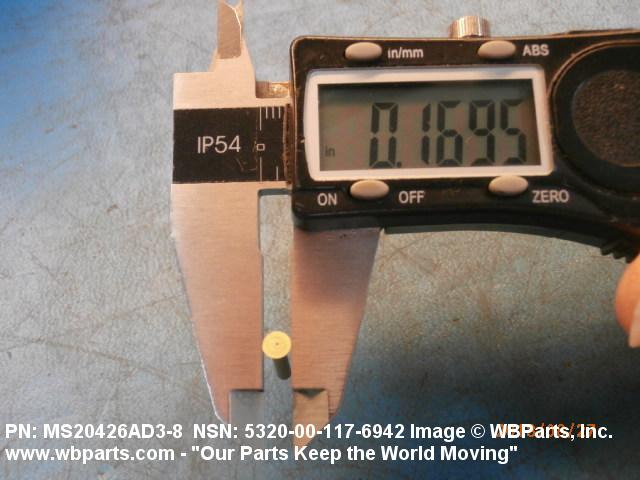

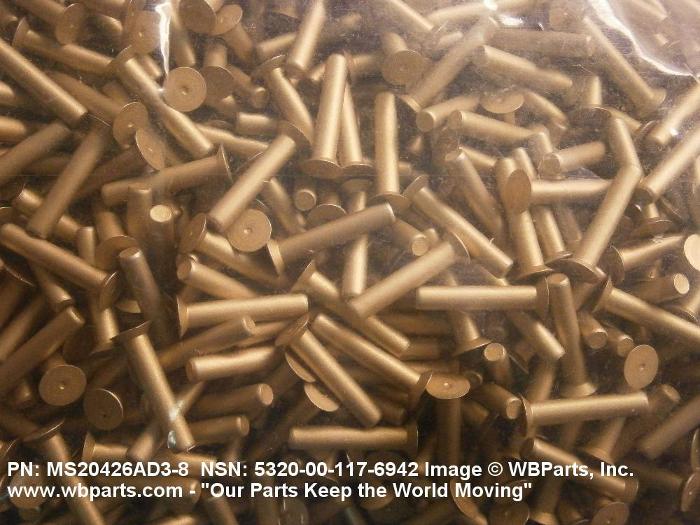

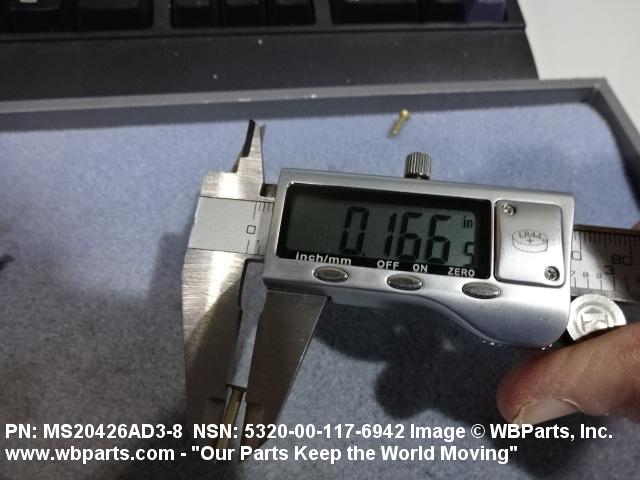

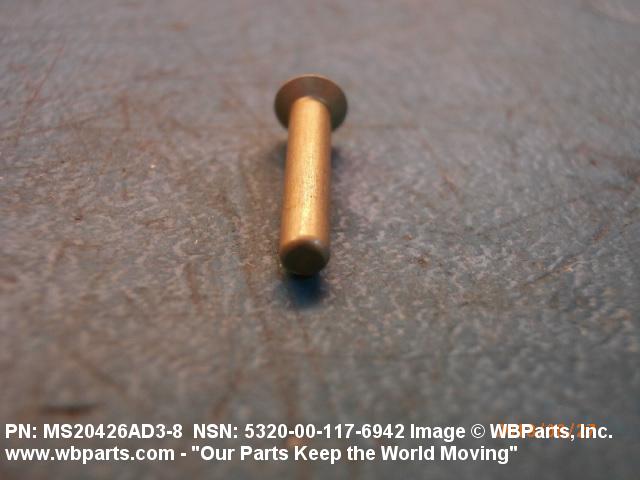

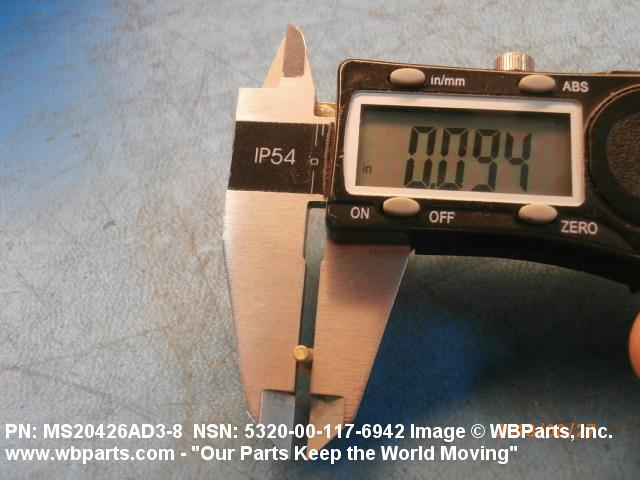

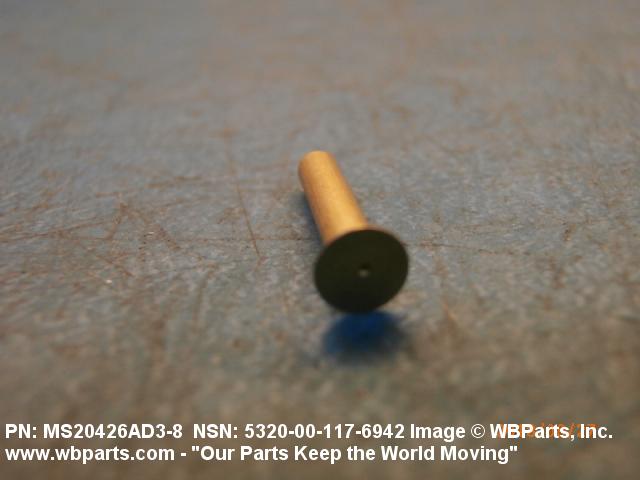

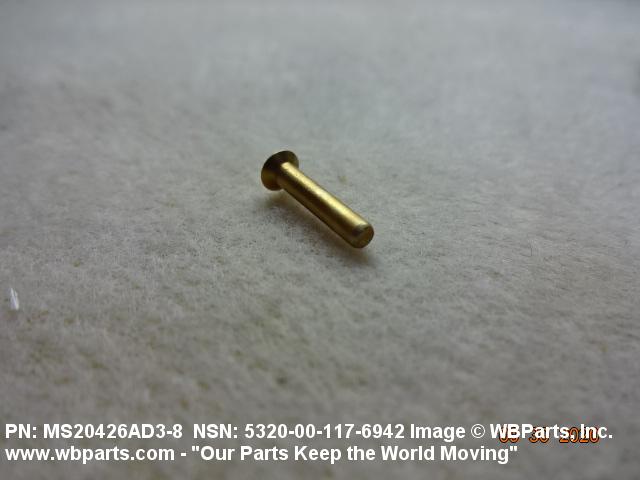

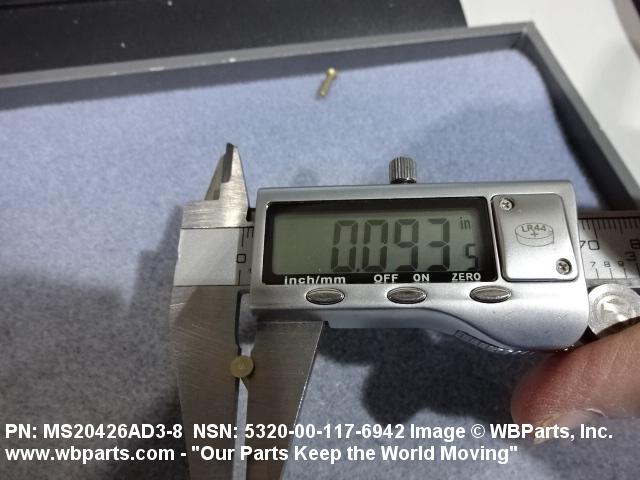

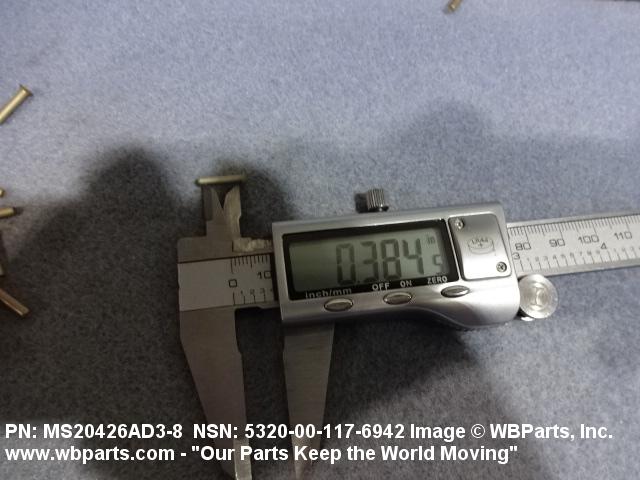

Drawings & Photos | NSN 5320-00-117-6942
Demand History | NSN 5320-00-117-6942
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-117-6942 | 2024-07-197 | 1540 | Taiwan |
| MS20426AD38 | 2023-10-299 | 710 | United States |
| 5320-00-117-6942 | 2021-11-322 | 25 | US |
| MS20426AD38 | 2021-06-153 | 18 | US |
| MS20426AD38 | 2021-04-105 | 2640 | Hong Kong |
| MS20426AD38 | 2021-04-97 | 2640 | CN |
| MS20426AD3-8 | 2020-06-174 | 1040 | Hong Kong |
| 5320-00-117-6942 | 2019-12-357 | 40 | United States |
| 5320-00-117-6942 | 2019-12-350 | 40 | US |
| 5320-00-117-6942 | 2019-05-147 | 1200 | DIBBS |
| 5320-00-117-6942 | 2019-05-140 | 474 | DIBBS |
| MS20426AD38 | 2019-05-136 | 54 | United States |
| MS20426AD38 | 2019-05-136 | 64 | United States |
| 5320-00-117-6942 | 2019-05-132 | 474 | DIBBS |
| MS20426AD38 | 2018-10-283 | 80 | United States |
| MS20426AD38 | 2018-07-211 | 200 | Malaysia |
| MS20426AD38 | 2018-07-211 | 200 | Malaysia |
| MS20426AD38 | 2018-06-159 | 141 | us |
| 5320-00-117-6942 | 2018-04-107 | 300 | Russian Federation |
| 5320-00-117-6942 | 2018-04-103 | 300 | Russian Federation |
| MS20426AD38 | 2017-11-318 | 1 | United States |
| MS20426AD38 | 2017-10-298 | 1100 | Malaysia |
| AN426AD38 | 2016-05-140 | 600 | US |
| AN426AD38 | 2016-05-140 | 3000 | US |
| MS20426AD38 | 2016-04-116 | 100 | US |
| MS20426AD38 | 2015-12-341 | 53 | Malaysia |
| MS20426AD38 | 2015-12-341 | 53 | Malaysia |
| MS20426AD3-8 | 2015-07-201 | 10 | |
| 5320-00-117-6942 | 2014-04-104 | 1000 | PK |
| MS20426AD38 | 2014-03-77 | 1 | United States |
| MS20426AD38 | 2014-01-24 | 35 | United States |
| MS20426AD38 | 2012-05-150 | 525 | Israel |
| MS20426AD38 | 2011-11-305 | 100 | US |
| 5320-00-117-6942 | 2011-04-116 | 500 | US |
| MS20426AD38 | 2011-02-34 | 1 | US |
| MS20426AD38 | 2011-01-28 | 50 | United States |
| 5320-00-117-6942 | 2011-01-11 | 13 | US |
| 5320-00-117-6942 | 2010-09-266 | 1000 | United States |
| 5320-00-117-6942 | 2009-02-55 | 100 | United States |
| 5320-00-117-6942 | 2009-01-19 | 5 | Indonesia |
| 5320-00-117-6942 | 2008-08-242 | 511 | DIBBS |
| MS20426AD38 | 2008-08-221 | 15 | US |
| 5320-00-117-6942 | 2008-04-106 | 990 | DIBBS |
| MS20426AD38 | 2008-03-65 | 500 | United States |
| 5320-00-117-6942 | 2008-03-64 | 492 | DIBBS |
| 5320-00-117-6942 | 2008-02-52 | 10 | US |
| MS20426AD38 | 2007-05-150 | 244 | US |
Cross Reference | NSN 5320-00-117-6942
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0600-183 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 105561 | 21340 | ITT TELECOM PRODUCTS CORP NETWORK SYSTEMS DIV |
| 3439-0038 | 13467 | ASSOCIATED INDUSTRIES A DIV OF ARNOLD A SEMLER INC |
| 5320001176942 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 854884-00 | 32345 | DEFENSE REDUCTION AGENCY |
| AN426AD3-8 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS2229-308 | U1653 | SOCIETY OF BRITISH AEROSPACE COMPANI LTD SBAC |
| MS20426AD3-8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20426AD3-8 | 96900 | HARDMAN INC |
| MS20426AD3-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-117-6942
Related Products | NSN 5320-00-117-6942
Technical Data | NSN 5320-00-117-6942

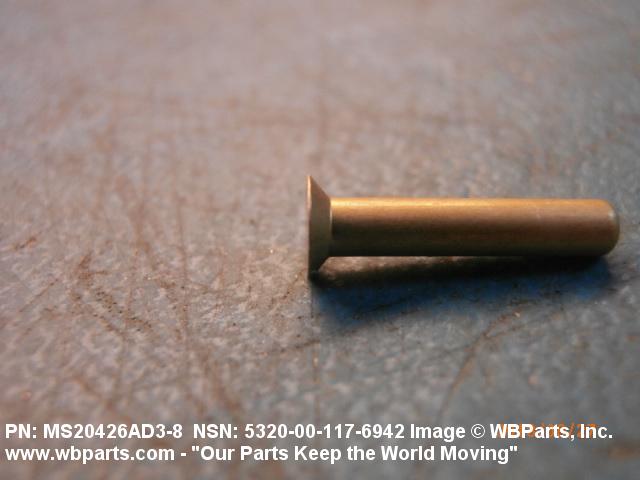

| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |

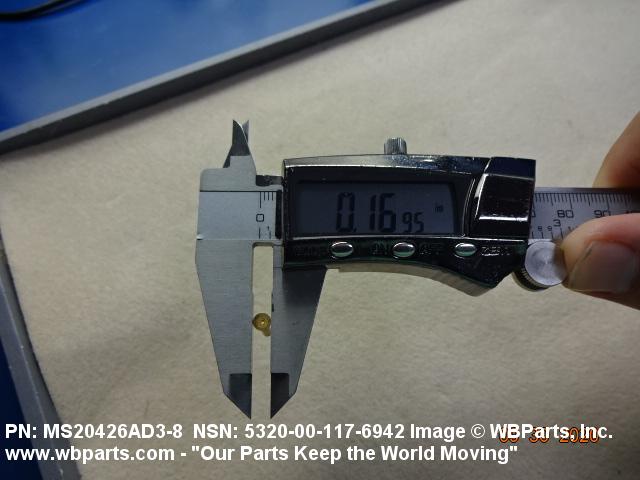

| HEAD MAJOR DIAMETER | 0.175 INCHES MINIMUM AND 0.183 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |

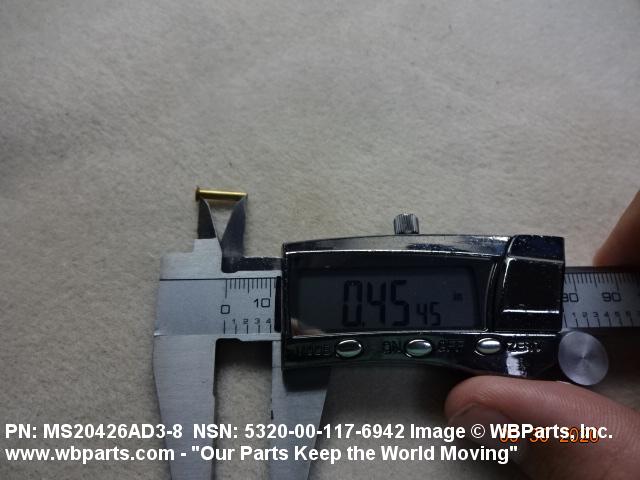

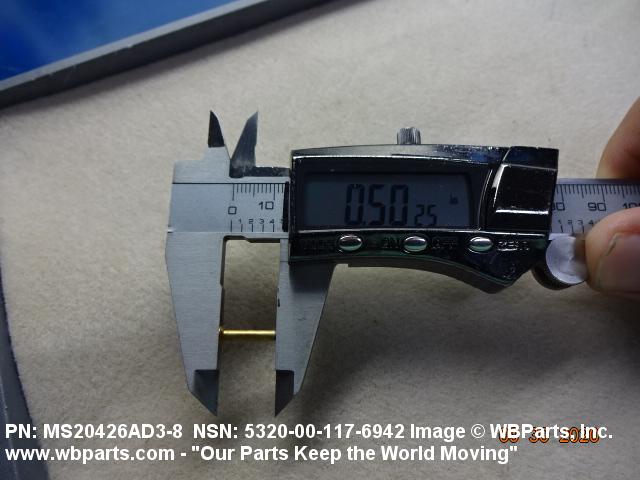

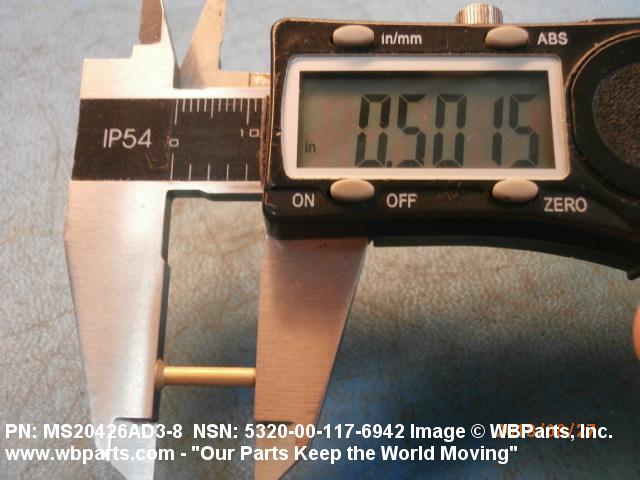

| FASTENER LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
