NSN 5315-01-552-1067 34M7047, 01-552-1067, 015521067
Product Details | SPRING PIN
5315-01-552-1067 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: 34M7047, 5315-01-552-1067, 01-552-1067, 5315015521067, 015521067
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 JUN 2007 | 01-552-1067 | 02389 ( PIN, SPRING ) |

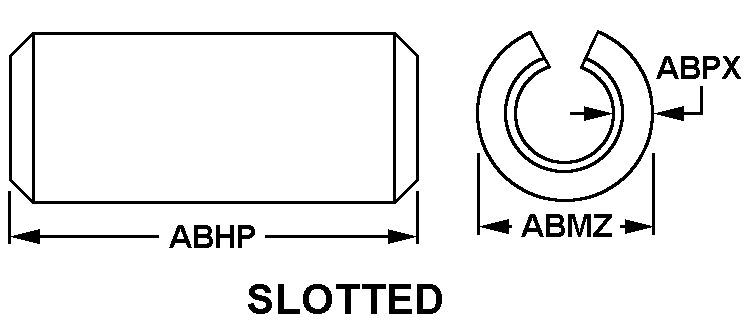

Drawings & Photos | NSN 5315-01-552-1067
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-552-1067
Technical Data | NSN 5315-01-552-1067
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | K174 SLOTTED |
| OVERALL LENGTH | 1.575 INCHES NOMINAL |
| DIAMETER | 0.315 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.063 INCHES NOMINAL |
| SPECIAL FEATURES | SHEAR VALUE 9,612.830 LBF |
| III END ITEM IDENTIFICATION | JOHN DEERE 260/270 SKID-STEER LOADER BOOM DOCK |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SPRING PIN |
Restrictions/Controls & Freight Information | NSN 5315-01-552-1067
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
