NSN 5315-01-552-1365 KV11414, 01-552-1365, 015521365
Product Details | HEADLESS STRAIGHT PIN
5315-01-552-1365 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: KV11414, 5315-01-552-1365, 01-552-1365, 5315015521365, 015521365
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JUN 2007 | 01-552-1365 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-01-552-1365
Demand History | NSN 5315-01-552-1365
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| KV11414 | 2020-04-108 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-552-1365
Technical Data | NSN 5315-01-552-1365
| Characteristic | Specifications |
|---|---|
| FIRST END STYLE | 1 CHAMFERED |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |

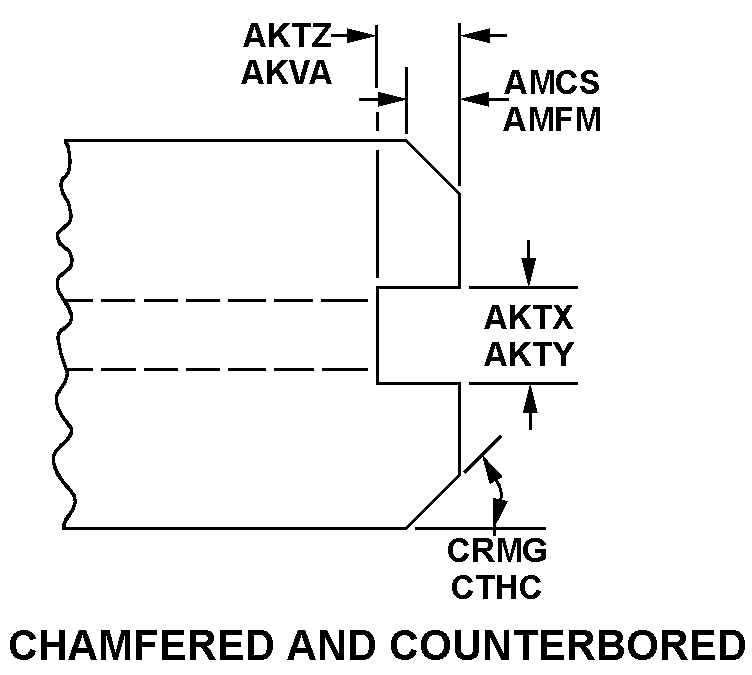

| SECOND END STYLE | 13 CHAMFERED AND COUNTERBORED |
| HOLE ARRANGEMENT STYLE | 2 BOTH ENDS DRILLED |
| PIN OVERALL LENGTH | 4.724 INCHES NOMINAL |
| PIN OVERALL DIAMETER | 1.3780 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | JOHN DEERE 260/270 SKID-STEER LOADER BOOM |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN TILT CYL ROD END |
Restrictions/Controls & Freight Information | NSN 5315-01-552-1365
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
