NSN 5315-01-471-8095 9540781, 954078-1, 01-471-8095
Product Details | HEADLESS SHOULDER PIN
5315-01-471-8095 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 9540781, 954078-1, 5315-01-471-8095, 01-471-8095, 5315014718095, 014718095
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 FEB 2000 | 01-471-8095 | 16749 ( PIN, SHOULDER, HEADLESS ) |
Drawings & Photos | NSN 5315-01-471-8095
Cross Reference | NSN 5315-01-471-8095
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 954078-1 | 1P175 | ENCORE INTERIORS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-471-8095
Related Products | NSN 5315-01-471-8095
Technical Data | NSN 5315-01-471-8095
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766, COMP 304 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

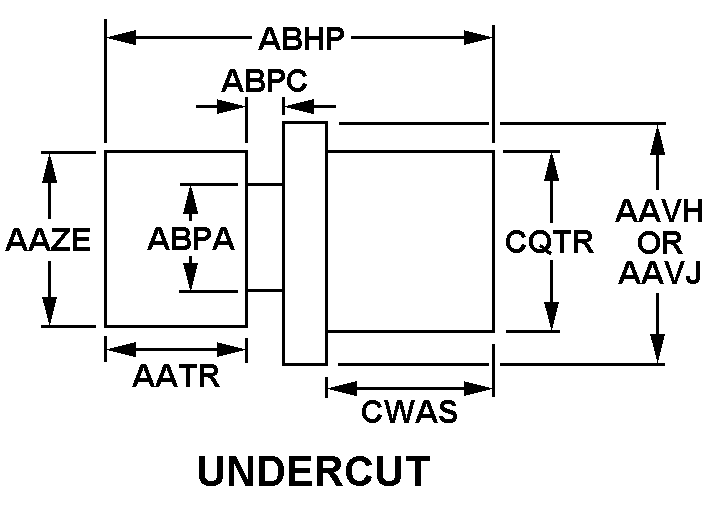

| STYLE DESIGNATOR | J164 UNDERCUT |
| SHANK LENGTH | 0.429 INCHES NOMINAL |
| SHOULDER WIDTH ACROSS FLATS | 0.745 INCHES MINIMUM AND 0.755 INCHES MAXIMUM |
| SHANK DIAMETER | 0.500 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| OVERALL LENGTH | 2.116 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.415 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.001 INCHES MINIMUM AND 0.011 INCHES MAXIMUM |
| SECOND SHANK DIAMETER | 0.368 INCHES MINIMUM AND 0.372 INCHES MAXIMUM |
| SECOND SHANK LENGTH | 1.500 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.010 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| SECOND END TAPER LENGTH | 0.175 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
| SECOND END TAPER ANGLE | 15.0 DEGREES NOMINAL |
| FIRST END LOCATION | THREADED END |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.435 INCHES NOMINAL |
| SPECIAL FEATURES | SHOULDER OF THE ITEM IS LOCATED 0.10 INCH BELOW THE GROOVE. |
| III END ITEM IDENTIFICATION | C-17A |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN, ALIGNMENT |
Restrictions/Controls & Freight Information | NSN 5315-01-471-8095
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5315-01-471-8095
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
