NSN 5315-01-466-9517 AA554877, AA55487-7, AN4157
Product Details | LOCK PIN
5315-01-466-9517 A fastening device formed from resilient wire stock into a shape resembling the letter "U", of which at least one of the prongs is straight for insertion into a hole; the other prong may have one or more curvatures along its length. It is designed to hold itself in place by its inherent spring action. See also CLIP, RETAINING and RING, RETAINING.
Part Alternates: AA554877, AA55487-7, AN4157, AN415-7 , 1241573, 75202561110, 7520-2561-110 , 5315-01-466-9517, 01-466-9517, 5315014669517, 014669517
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 AUG 1999 | 01-466-9517 | 02387 ( PIN, LOCK ) |

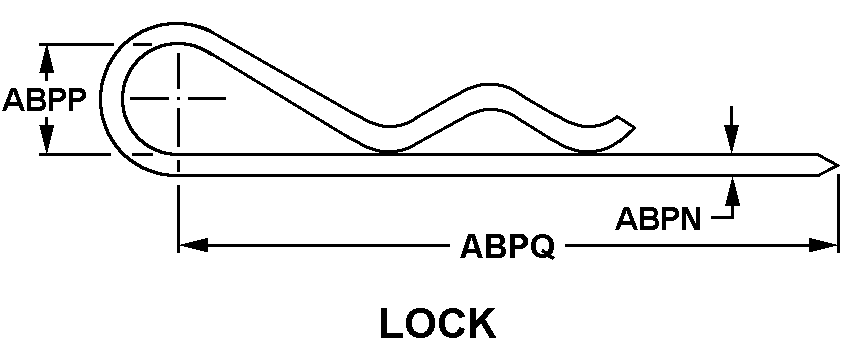

Drawings & Photos | NSN 5315-01-466-9517
Demand History | NSN 5315-01-466-9517
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-466-9517 | 2022-04-110 | 140 | US |
| 5315-01-466-9517 | 2020-01-20 | 25 | United States |
| 5315-01-466-9517 | 2019-01-21 | 500 | US |
| 1241573 | 2018-06-169 | 304 | United States |
| 1241573 | 2018-06-169 | 608 | United States |
| AA554877 | 2015-02-37 | 50 | United States |
| AA554877 | 2015-02-37 | 100 | United States |
| AA554877 | 2015-02-37 | 500 | United States |
| AA554877 | 2015-02-37 | 1000 | United States |
| AN4157 | 2012-10-285 | 84 | US |
| AA554877 | 2010-02-41 | 64 | US |
| 5315-01-466-9517 | 2009-06-152 | 10264 | DIBBS |
| 5315-01-466-9517 | 2009-04-99 | 555 | DIBBS |
| 5315-01-466-9517 | 2009-02-42 | 512 | DIBBS |
Cross Reference | NSN 5315-01-466-9517
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1241573 | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| 1241573 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7520-2561-110 | 27742 | ALL-BANN ENTERPRISES INC |
| AA55487-7 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AN415-7 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-466-9517
Related Products | NSN 5315-01-466-9517
Technical Data | NSN 5315-01-466-9517
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTMA313 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | G130 LOCK |
| WIRE STOCK DIAMETER | 0.146 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| OPENING WIDTH | 0.7654 INCHES MINIMUM AND 0.7966 INCHES MAXIMUM |
| PRONG LENGTH | 2.6724 INCHES MINIMUM AND 2.7036 INCHES MAXIMUM |
| SPECIAL FEATURES | TRUCK,DUMP |
| III END ITEM IDENTIFICATION | TRUCK, FAMILY OF MEDIUM TACTICLE VEHICLES |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA55487-7 |
