NSN 5315-00-281-7745 HCF1755, 8330153, 320619
Product Details | LOCK PIN
5315-00-281-7745 A fastening device formed from resilient wire stock into a shape resembling the letter "U", of which at least one of the prongs is straight for insertion into a hole; the other prong may have one or more curvatures along its length. It is designed to hold itself in place by its inherent spring action. See also CLIP, RETAINING and RING, RETAINING.
Part Alternates: HCF1755, 8330153, 320619, 5315-00-281-7745, 00-281-7745, 5315002817745, 002817745
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-281-7745 | 02387 ( PIN, LOCK ) |
Drawings & Photos | NSN 5315-00-281-7745
Demand History | NSN 5315-00-281-7745
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 320619 | 2024-10-297 | 2 | US |
| 320619 | 2020-02-35 | 24 | United States |
| 5315-00-281-7745 | 2008-12-343 | 96 | DIBBS |
Cross Reference | NSN 5315-00-281-7745
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-281-7745
Related Products | NSN 5315-00-281-7745
Technical Data | NSN 5315-00-281-7745
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PHOSPHATE ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-16232 TY 2 CL 4 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

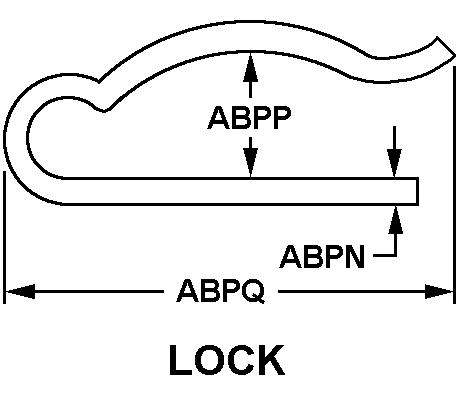

| STYLE DESIGNATOR | G132 LOCK |
| WIRE STOCK DIAMETER | 0.120 INCHES NOMINAL |
| OPENING WIDTH | 1.000 INCHES NOMINAL |
| PRONG LENGTH | 2.859 INCHES MINIMUM AND 2.891 INCHES MAXIMUM |
