NSN 5315-01-333-9005 CA44804, CA4480-4, 8680330081
Product Details | ECCENTRIC PIN
5315-01-333-9005 A headed, cylindrically-shaped metal item having a shank and/or shoulder offset from the geometric center of the head. If shouldered, a portion of the shank and/or shoulder may be concentric with the head.
Part Alternates: CA44804, CA4480-4, 8680330081, 868033-0081, 86803381, 868033-81, 5315-01-333-9005, 01-333-9005, 5315013339005, 013339005
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 FEB 1991 | 01-333-9005 | 21967 ( PIN, ECCENTRIC ) |

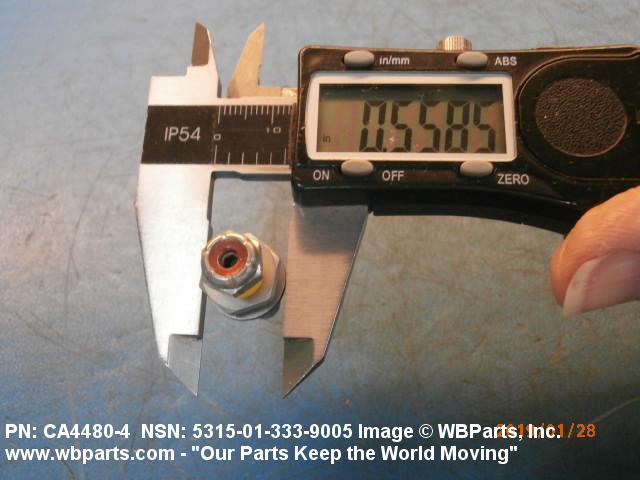

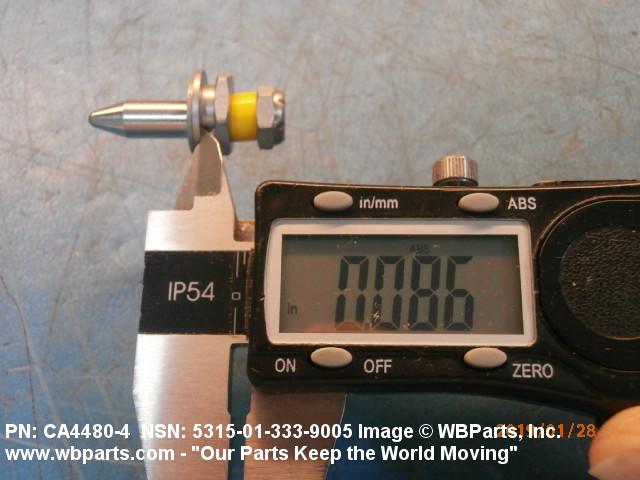

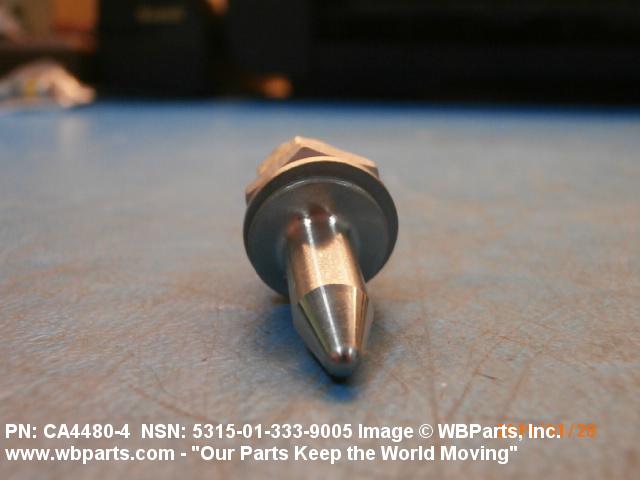

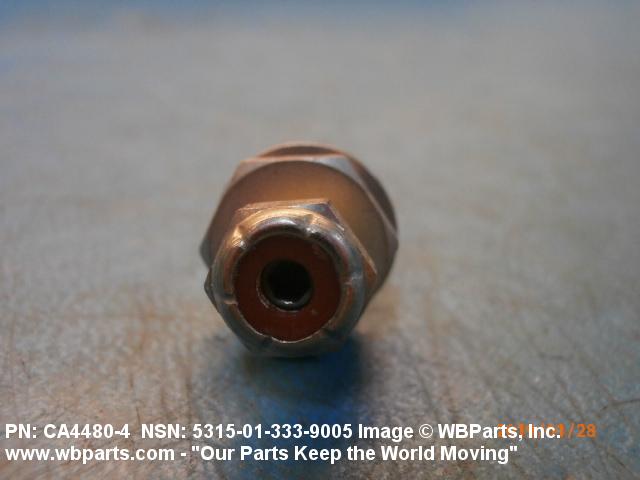

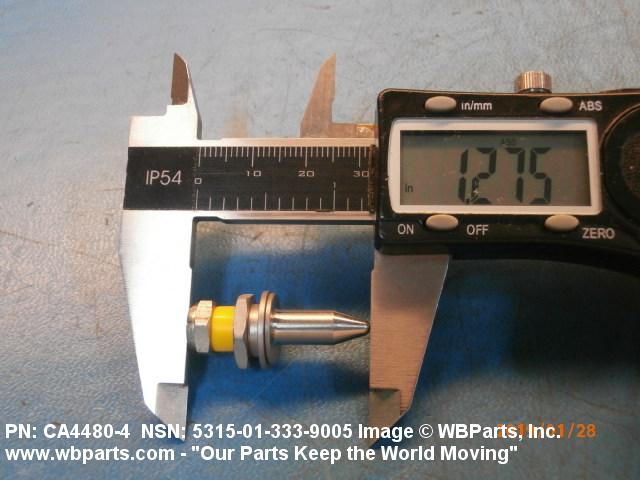

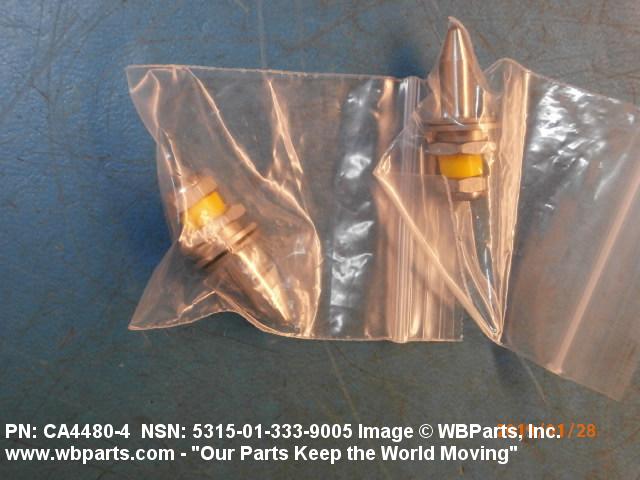

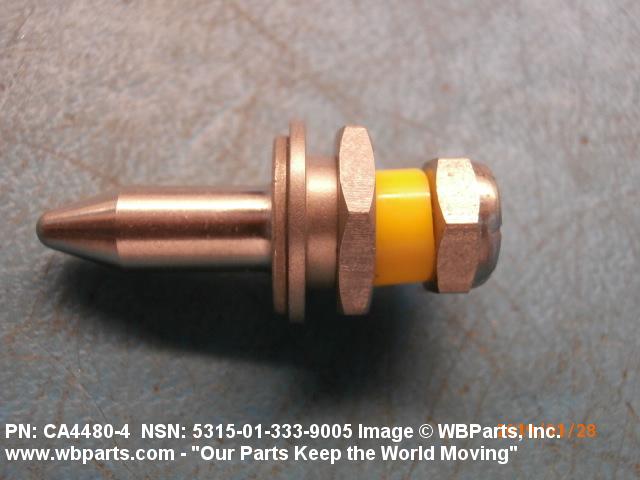

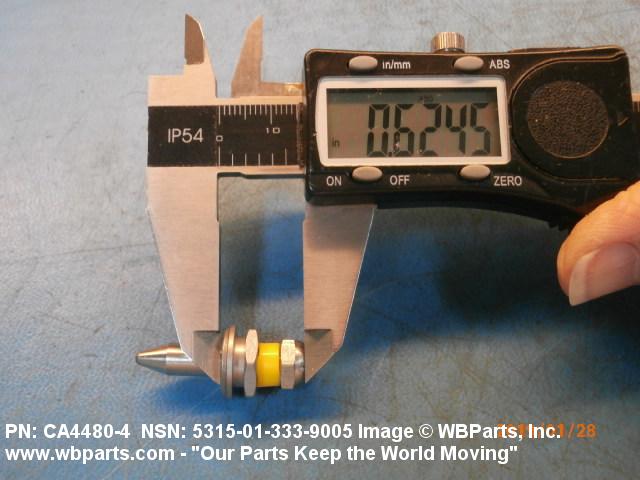

Drawings & Photos | NSN 5315-01-333-9005
Demand History | NSN 5315-01-333-9005
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 868033-81 | 2023-12-355 | 25 | DIBBS |
| CA4480-4 | 2023-12-355 | 25 | DIBBS |
| 868033-81 | 2023-12-347 | 25 | DIBBS |
| CA4480-4 | 2023-12-347 | 25 | DIBBS |
| 5315-01-333-9005 | 2023-11-306 | 100 | US |
| 5315-01-333-9005 | 2019-01-10 | 2 | United States |
| 5315-01-333-9005 | 2017-06-164 | 84 | US |
| 5315-01-333-9005 | 2013-07-186 | 36 | US |
| CA44804 | 2013-05-136 | 36 | US |
| 5315-01-333-9005 | 2012-08-216 | 43 | DIBBS |
| 5315-01-333-9005 | 2012-08-216 | 100 | DIBBS |
| 5315-01-333-9005 | 2012-07-189 | 20 | DIBBS |
| 5315-01-333-9005 | 2012-06-182 | 22 | DIBBS |
| 5315-01-333-9005 | 2012-01-06 | 78 | DIBBS |
| 8680330081 | 2011-05-129 | 1 | US |
| CA44804 | 2011-05-129 | 1 | US |
| 8680330081 | 2011-05-124 | 1 | US |
| 5315-01-333-9005 | 2009-06-175 | 2 | DIBBS |
Cross Reference | NSN 5315-01-333-9005
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 868033-0081 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 868033-0081 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| 868033-81 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 868033-81 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| CA4480-4 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-333-9005
Related Products | NSN 5315-01-333-9005
Technical Data | NSN 5315-01-333-9005
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | D73 ECCENTRIC |
| OVERALL LENGTH | 1.187 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.500 INCHES NOMINAL |
| THIRD STEP DIAMETER | 0.248 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| THIRD STEP LENGTH | 0.672 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | 5 SOCKET |
| WIDTH BETWEEN FLATS | 0.093 INCHES NOMINAL |
| NUMERIC DESIGNATION OF STEP ECCENTRIC TO HEAD | 2 |
| SPECIAL FEATURES | LOCKING NUT IS CRES WITH A NYLON LOCKING INSERT |
Restrictions/Controls & Freight Information | NSN 5315-01-333-9005
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-333-9005
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
