NSN 5315-01-323-2449 5191560, 01-323-2449, 013232449
Product Details | HEADLESS SHOULDER PIN
5315-01-323-2449 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 5191560, 5315-01-323-2449, 01-323-2449, 5315013232449, 013232449
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JUL 1990 | 01-323-2449 | 16749 ( PIN, SHOULDER, HEADLESS ) |
Drawings & Photos | NSN 5315-01-323-2449
Demand History | NSN 5315-01-323-2449
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-323-2449 | 2015-02-55 | 50 | DIBBS |
| 5315-01-323-2449 | 2015-01-29 | 95 | DIBBS |
| 5315-01-323-2449 | 2014-12-352 | 49 | DIBBS |
| 5315-01-323-2449 | 2014-12-341 | 49 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-323-2449
Related Products | NSN 5315-01-323-2449
Technical Data | NSN 5315-01-323-2449
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OR STEEL COMP 304L OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND A FED SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | J166 UNDERCUT |
| SHANK LENGTH | 0.780 INCHES MINIMUM AND 0.820 INCHES MAXIMUM |
| SHOULDER DIAMETER | 0.840 INCHES MINIMUM AND 0.900 INCHES MAXIMUM |
| SHANK DIAMETER | 0.480 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| OVERALL LENGTH | 1.780 INCHES MINIMUM AND 1.820 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.230 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.880 INCHES NOMINAL |
| FIRST END STYLE | 7A COUNTERBORED W/O THRU HOLE |
| FIRST END COUNTERBORE DIAMETER | 0.252 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |
| FIRST END COUNTERBORE DEPTH | 0.600 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 9 SQUARE |
| FIRST END LOCATION | LONG END |

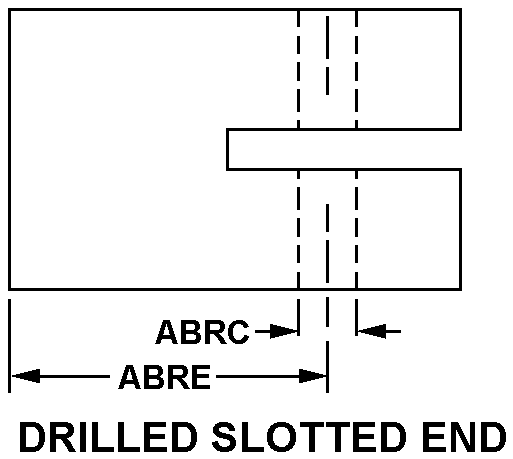

| HOLE ARRANGEMENT STYLE | 7 DRILLED SLOTTED END |
| FIRST HOLE DIAMETER | 0.095 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 1.600 INCHES NOMINAL |
