NSN 5315-01-320-1107 2146947, 01-320-1107, 013201107
Product Details | HEADED GROOVED PIN
5315-01-320-1107 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Part Alternates: 2146947, 5315-01-320-1107, 01-320-1107, 5315013201107, 013201107
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 MAY 1990 | 01-320-1107 | 02382 ( PIN, GROOVED, HEADED ) |
Drawings & Photos | NSN 5315-01-320-1107
Demand History | NSN 5315-01-320-1107
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-320-1107 | 2009-01-16 | 2 | DIBBS |
| 5315-01-320-1107 | 2009-01-12 | 2 | DIBBS |
Cross Reference | NSN 5315-01-320-1107
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2146947 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-320-1107
Related Products | NSN 5315-01-320-1107
Technical Data | NSN 5315-01-320-1107
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TY 1,TY 2,TY 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 32.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | E93 GROOVE |
| DIAMETER | 0.373 INCHES MINIMUM AND 0.374 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.343 INCHES NOMINAL |
| UNDER HEAD LENGTH | 1.250 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.031 INCHES NOMINAL |
| FIRST END STYLE | 17 COUNTERBORED W/O THRU HOLE |
| FIRST END COUNTERBORE DIAMETER | 0.218 INCHES MINIMUM AND 0.223 INCHES MAXIMUM |
| FIRST END COUNTERBORE DEPTH | 0.156 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| HEAD STYLE | 16 FLAT |
| PIN HEAD DIAMETER | 0.437 INCHES NOMINAL |
| HEIGHT | 0.052 INCHES MINIMUM AND 0.072 INCHES MAXIMUM |

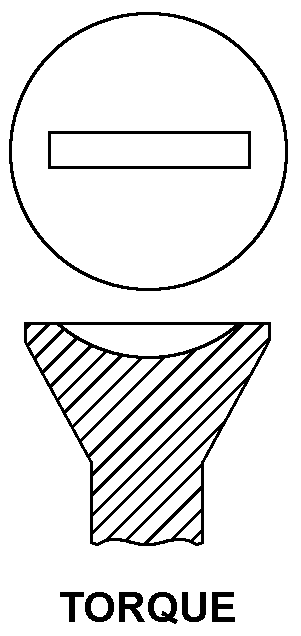

| INTERNAL DRIVE STYLE | 10 TORQUE |
Restrictions/Controls & Freight Information | NSN 5315-01-320-1107
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105840 | NAILS/SPIKES I/S NOI PLAIN ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-320-1107
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
