NSN 5315-01-333-5724 10123296 , 3825052-12, 01-333-5724
Product Details | HEADED GROOVED PIN
5315-01-333-5724 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Part Alternates: 10123296 , 3825052-12, 5315-01-333-5724, 01-333-5724, 5315013335724, 013335724, 382505212
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 FEB 1991 | 01-333-5724 | 02382 ( PIN, GROOVED, HEADED ) |

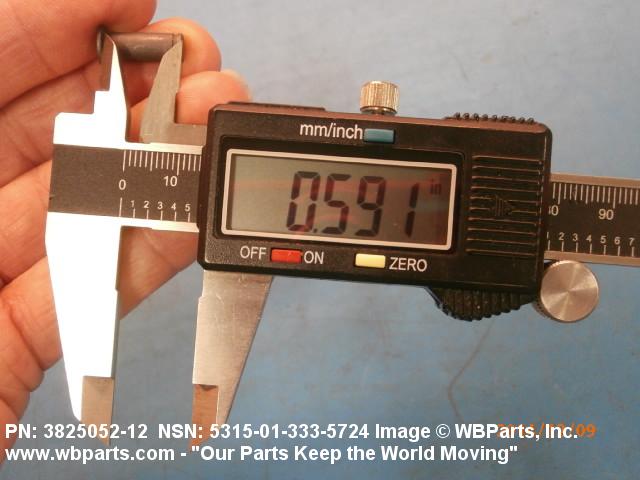

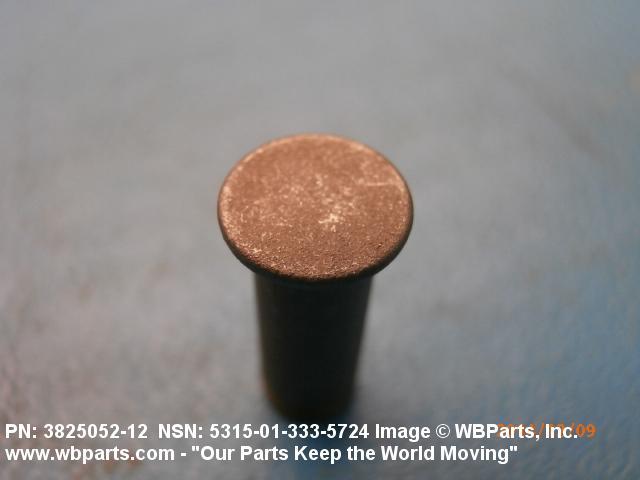

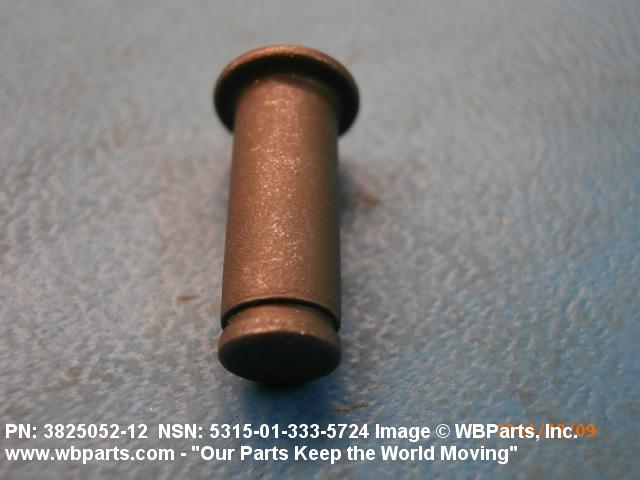

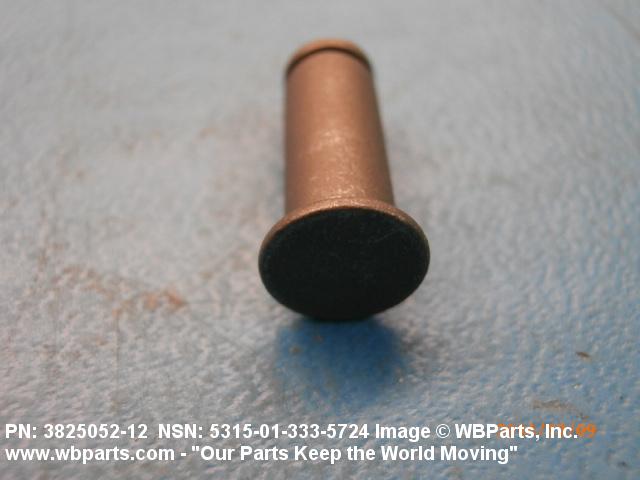

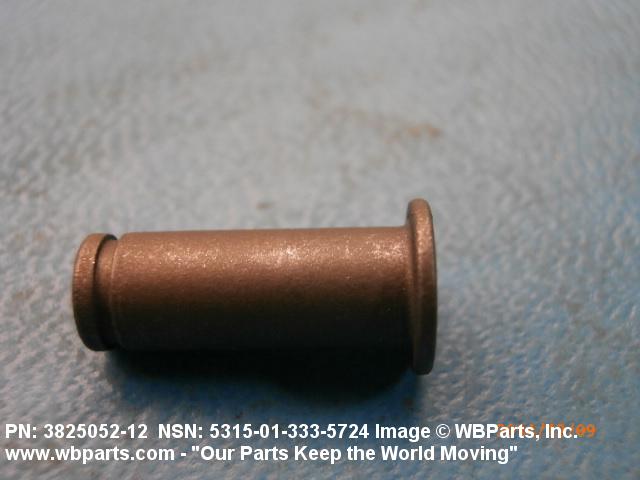

Drawings & Photos | NSN 5315-01-333-5724
Demand History | NSN 5315-01-333-5724
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3825052-12 | 2022-11-312 | 32 | DIBBS |
| 3825052-12 | 2019-03-86 | 80 | DIBBS |
| 3825052-12 | 2019-01-24 | 80 | DIBBS |
| 5315-01-333-5724 | 2018-12-336 | 80 | DIBBS |
| 5315-01-333-5724 | 2018-08-231 | 23 | DIBBS |
| 5315-01-333-5724 | 2018-08-230 | 23 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-333-5724
Related Products | NSN 5315-01-333-5724
Technical Data | NSN 5315-01-333-5724

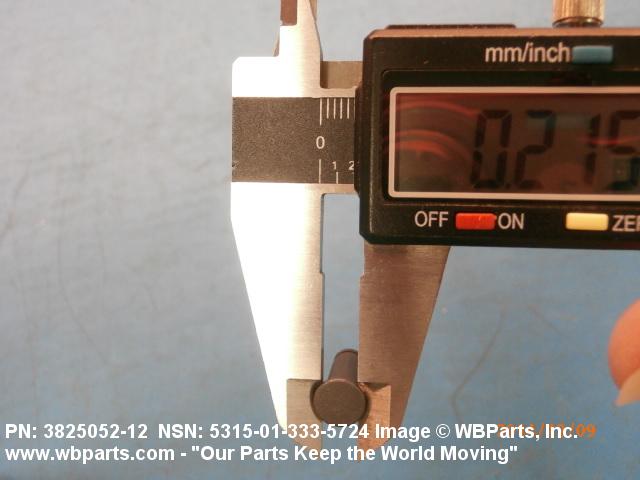

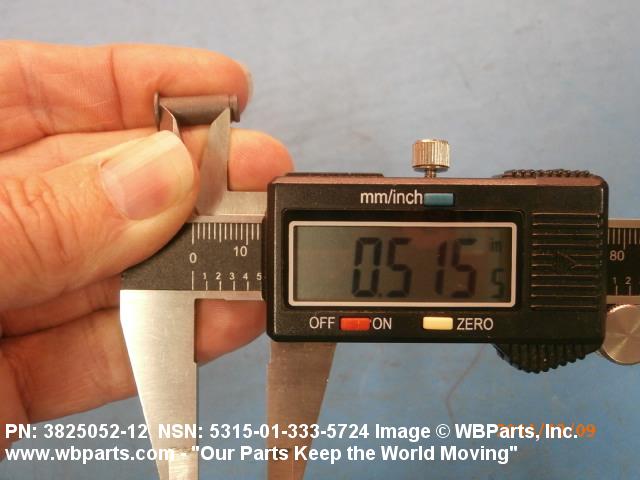

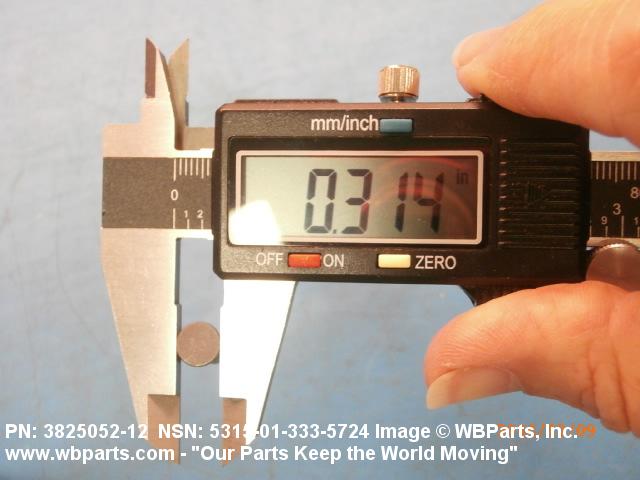

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CERAMIC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-81751,TY 1,CL 4 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | E87 GROOVE |
| DIAMETER | 0.213 INCHES MINIMUM AND 0.215 INCHES MAXIMUM |
| EFFECTIVE LENGTH | 0.515 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.188 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 0.585 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.029 INCHES MINIMUM AND 0.031 INCHES MAXIMUM |
| FIRST END STYLE | 9 SQUARE |
| HEAD STYLE | 16 FLAT |
| PIN HEAD DIAMETER | 0.312 INCHES NOMINAL |
| HEIGHT | 0.030 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-01-333-5724
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
