NSN 5315-01-269-4983 6671010020, 6671010-020, 01-269-4983
Product Details | PLAIN TAPERED PIN

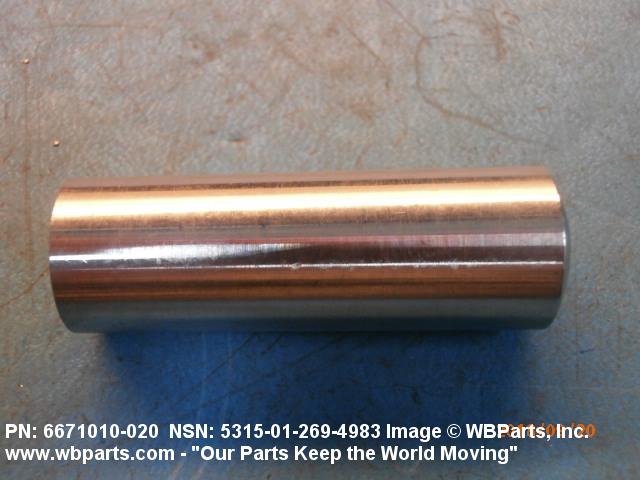

5315-01-269-4983 A cone-shaped, unthreaded, metallic or nonmetallic item, tapered through its entire length, primarily used to position and hold two or more mating parts in alignment.
Part Alternates: 6671010020, 6671010-020, 5315-01-269-4983, 01-269-4983, 5315012694983, 012694983
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 DEC 1987 | 01-269-4983 | 02391 ( PIN, TAPERED, PLAIN ) |
Drawings & Photos | NSN 5315-01-269-4983
Demand History | NSN 5315-01-269-4983
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-269-4983 | 2018-09-255 | 8 | us |
| 5315-01-269-4983 | 2013-11-321 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-269-4983
Related Products | NSN 5315-01-269-4983
Technical Data | NSN 5315-01-269-4983
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A304 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

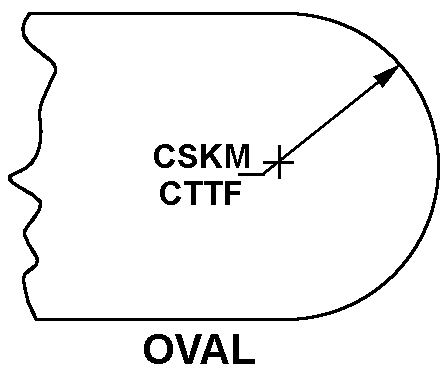

| FIRST END STYLE | 3 OVAL |
| FIRST END OUTER RADIUS | 0.700 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 9 SQUARE |
| FIRST END LOCATION | THREADED END |

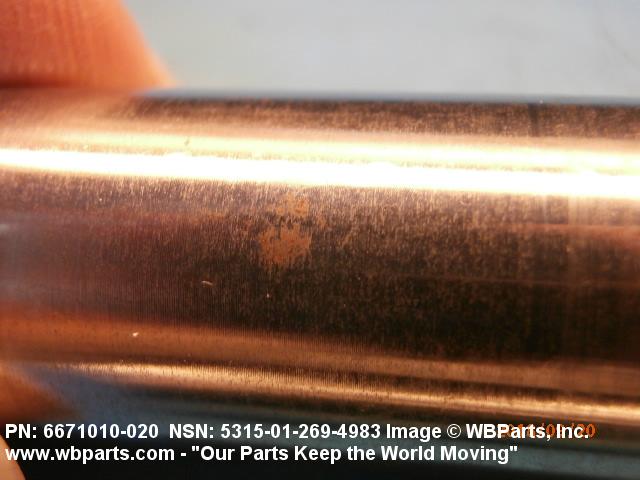

| SURFACE FINISH | 32.0 MICROINCHES OVERALL |

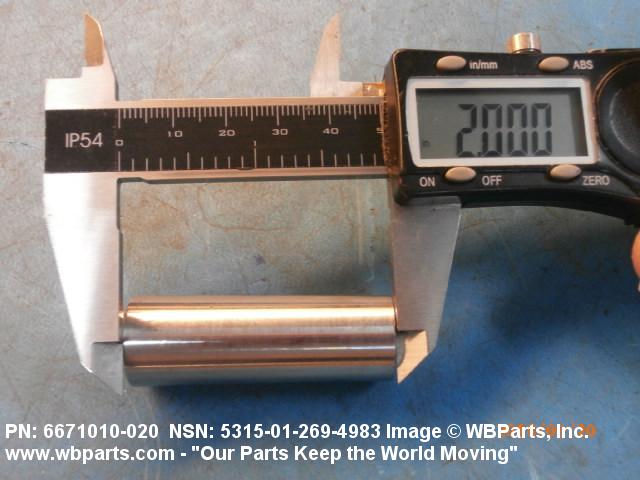

| PIN OVERALL LENGTH | 1.980 INCHES MINIMUM AND 2.020 INCHES MAXIMUM |

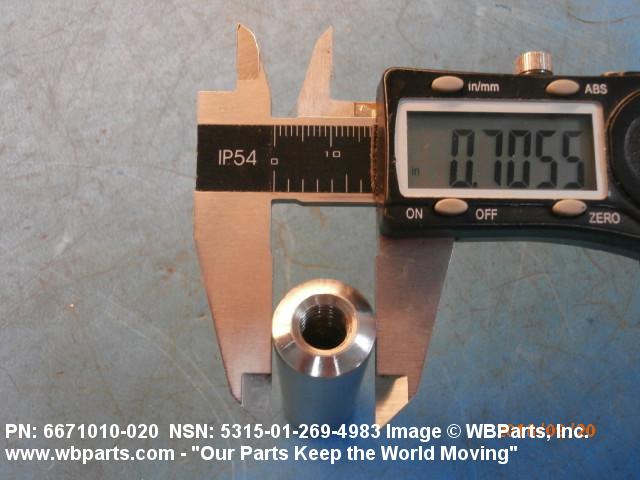

| LARGE END DIAMETER | 0.7053 INCHES MINIMUM AND 0.7073 INCHES MAXIMUM |
| PIN TAPER | 0.250 PER FOOT IN INCHES |

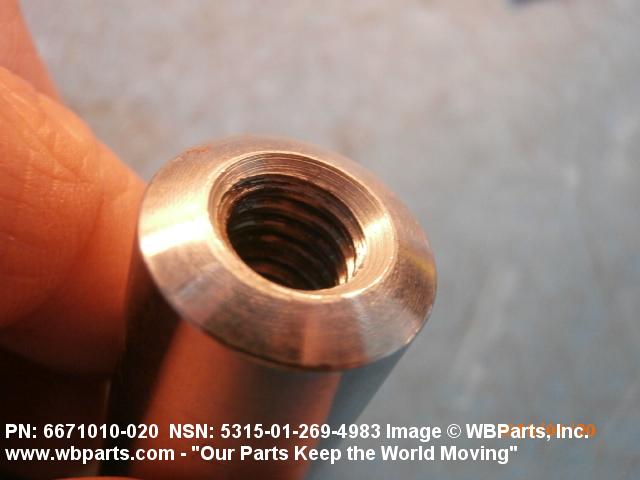

| SPECIAL FEATURES | LARGE END THREADED 0.375 IN.-16 0.500 IN. DEEP AND DRILLED 0.940 IN. DEEP |
Restrictions/Controls & Freight Information | NSN 5315-01-269-4983
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
