NSN 5315-01-264-1548 2007405-29, 01-264-1548, 200740529
Product Details | HEADLESS SHOULDER PIN

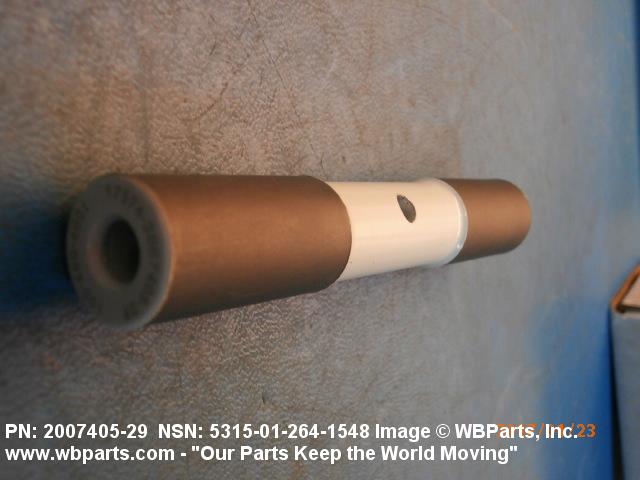

5315-01-264-1548 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 2007405-29, 5315-01-264-1548, 01-264-1548, 5315012641548, 200740529, 012641548
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 SEP 1987 | 01-264-1548 | 16749 ( PIN, SHOULDER, HEADLESS ) |

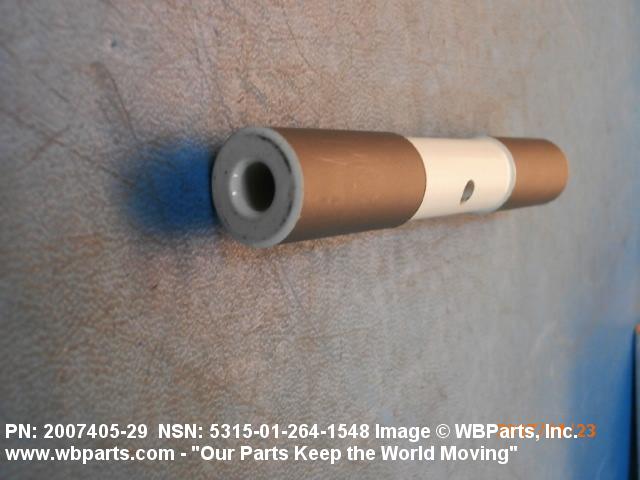

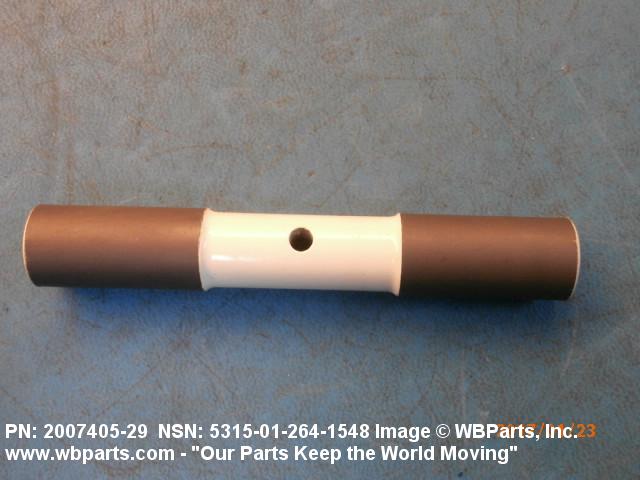

Drawings & Photos | NSN 5315-01-264-1548
Demand History | NSN 5315-01-264-1548
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 200740529 | 2022-07-186 | 4 | United States |
| 200740529 | 2022-06-174 | 2 | United States |
| 200740529 | 2021-01-18 | 2 | United States |
| 200740529 | 2020-12-339 | 2 | United States |
| 5315-01-264-1548 | 2016-11-308 | 3 | us |

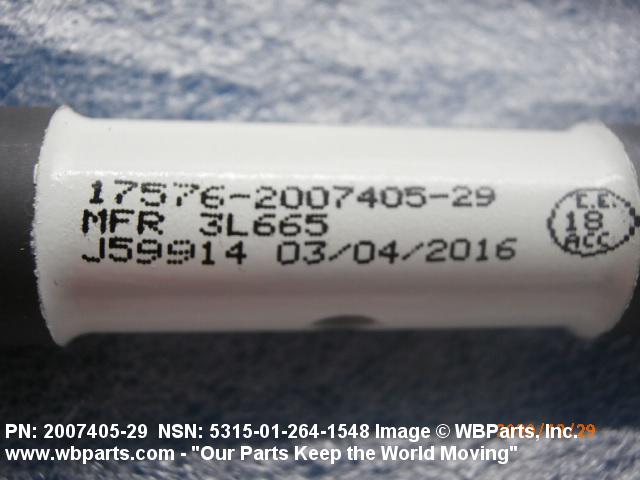

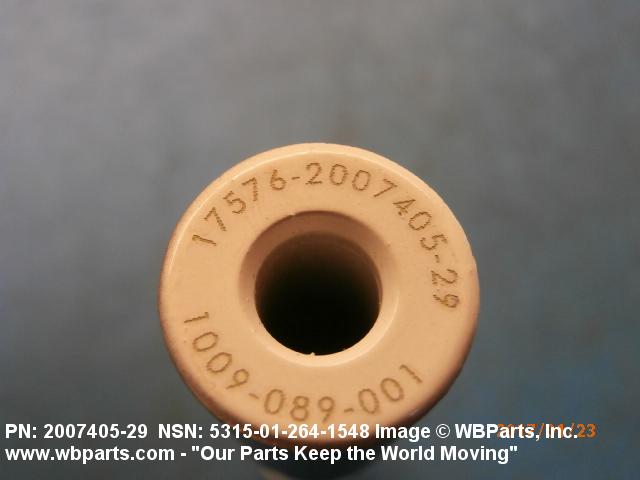

Cross Reference | NSN 5315-01-264-1548
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2007405-29 | 03632 | ARROW SCREW & MACHINE WORKS INC |
| 2007405-29 | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
| 2007405-29 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
| 2007405-29 | 1K556 | ALRO MACHINE,TOOL AND DIE CO., INC. |
| 2007405-29 | 2M490 | NASSAU TOOL WORKS, INC. |
| 2007405-29 | 36164 | HEROUX-DEVTEK INC |
| 2007405-29 | 3DL69 | WORKSAFE SPECIALTY PRODUCTS INC |
| 2007405-29 | 3L665 | C. E. MACHINE CO., INC. |
| 2007405-29 | 3PQR2 | NP PRECISION INC. |
| 2007405-29 | 50601 | CIRCOR AEROSPACE, INC. |
| 2007405-29 | 66922 | OMNI MACHINE CORPORATION |
| 2007405-29 | 6Z056 | CM MANUFACTURING, INC. |
| 2007405-29 | 7Z016 | KAMPI COMPONENTS CO., INC. |
| 2007405-29 | 84596 | AVIATION MANUFACTURING GROUP, LLC DBA FREEMAN CO, THE |
| 2007405-29 | 8P689 | TENS MACHINE COMPANY, INC. |
| 2007405-29 | 98247 | CANADIAN COMMERCIAL CORP DBACORPORATION COMMERCIALE |
| 2007405-29 | H1632 | FOKKER LANDING GEAR DBA FOKKER LANDING GEAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-264-1548
Related Products | NSN 5315-01-264-1548
Technical Data | NSN 5315-01-264-1548

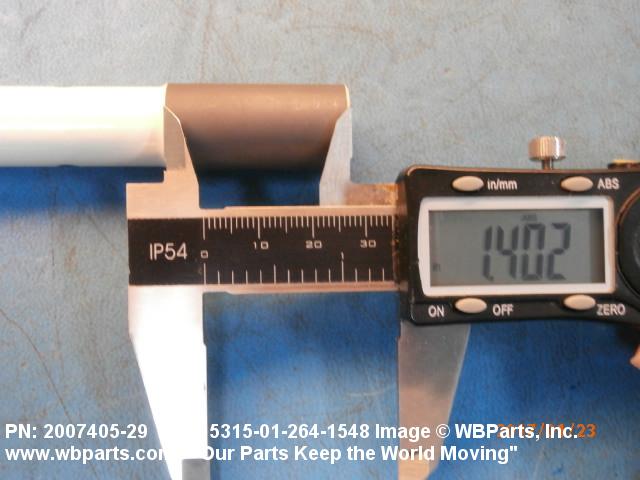

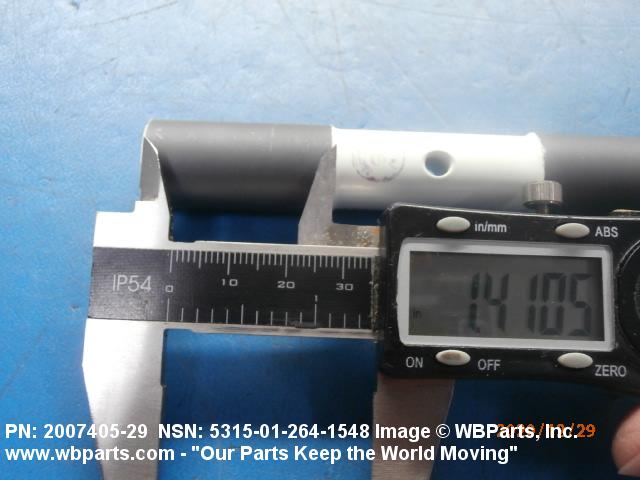

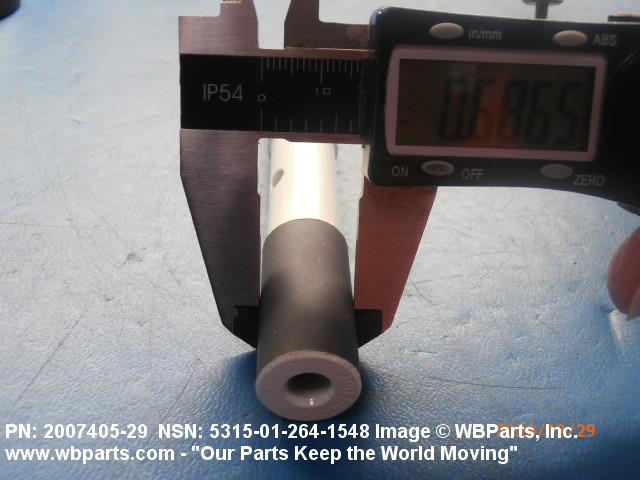

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 300M OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-8844 CL 3,COND E1 OR E4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-C-320 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | J166 UNDERCUT |
| SHANK LENGTH | 1.400 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.6856 INCHES MINIMUM AND 0.6871 INCHES MAXIMUM |

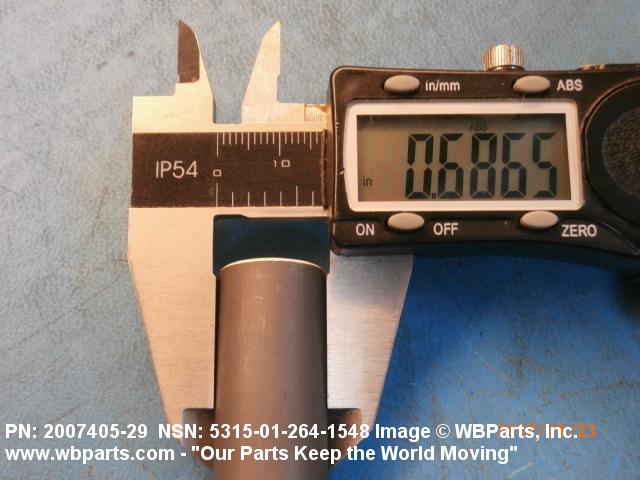

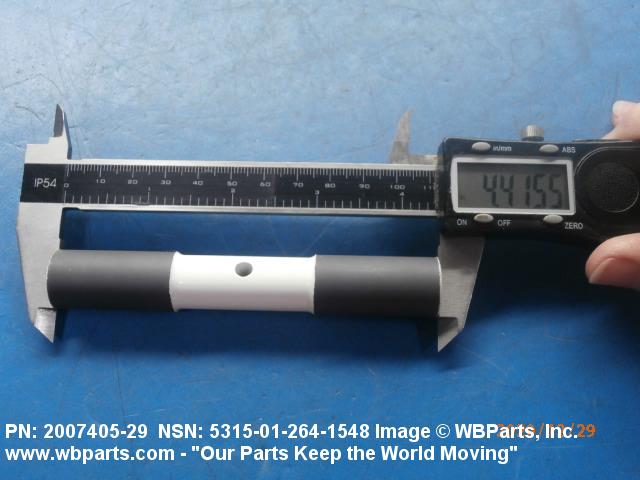

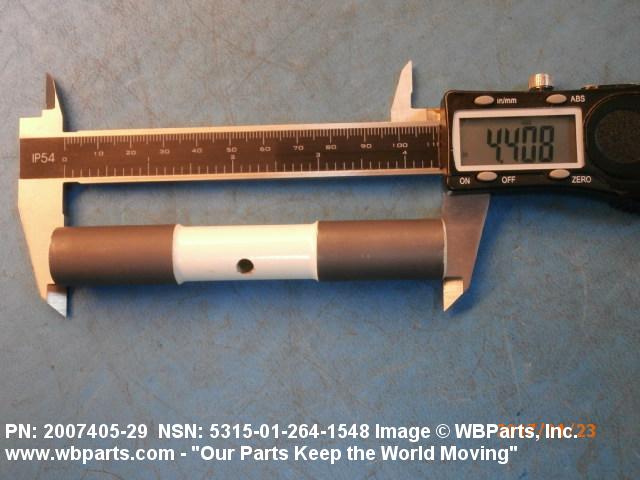

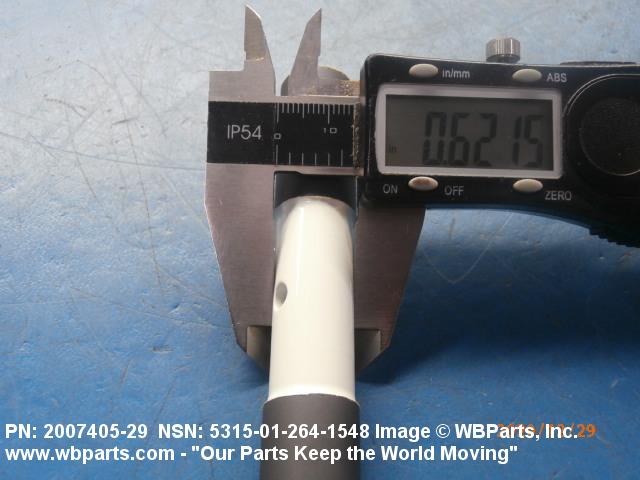

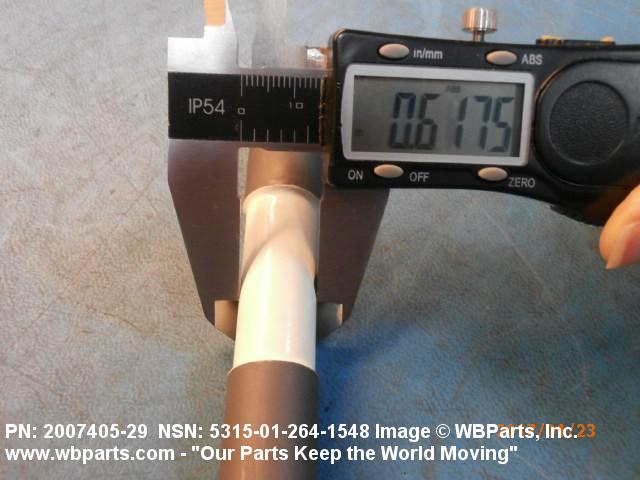

| SHANK DIAMETER | 0.6856 INCHES MINIMUM AND 0.6871 INCHES MAXIMUM |
| OVERALL LENGTH | 4.400 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.615 INCHES NOMINAL |

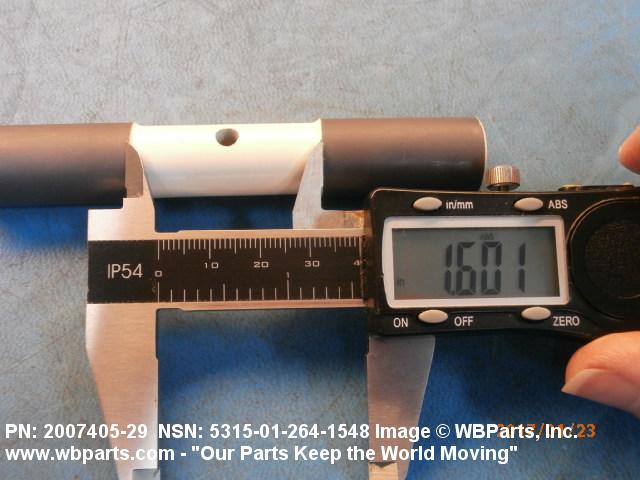

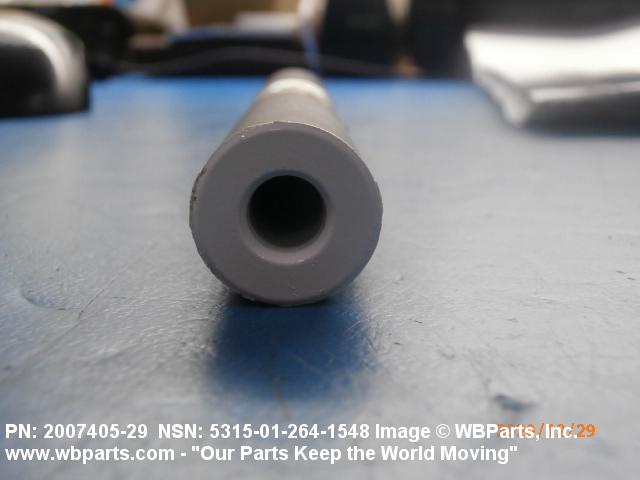

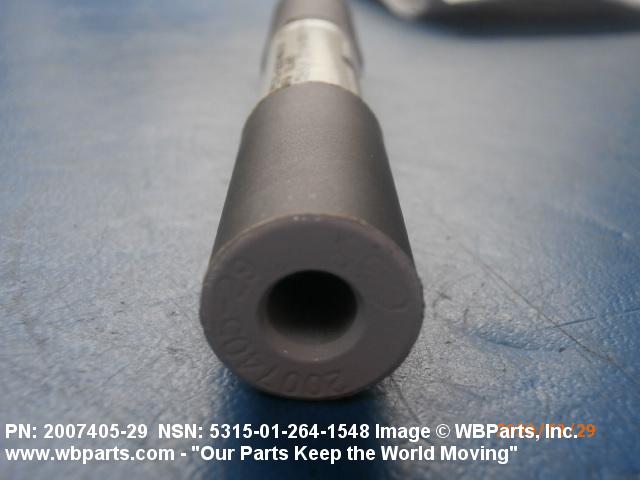

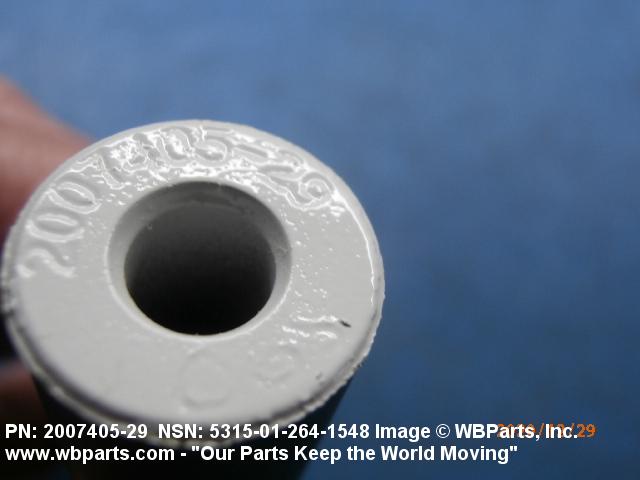

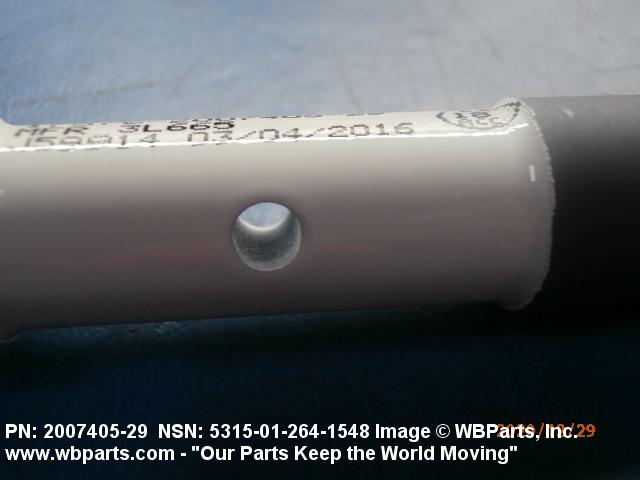

| UNDERCUT WIDTH | 1.600 INCHES NOMINAL |
| FIRST END STYLE | 11 SQUARE W/THRU HOLE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
| HOLE ARRANGEMENT STYLE | 4 DRILLED THRU CENTER |

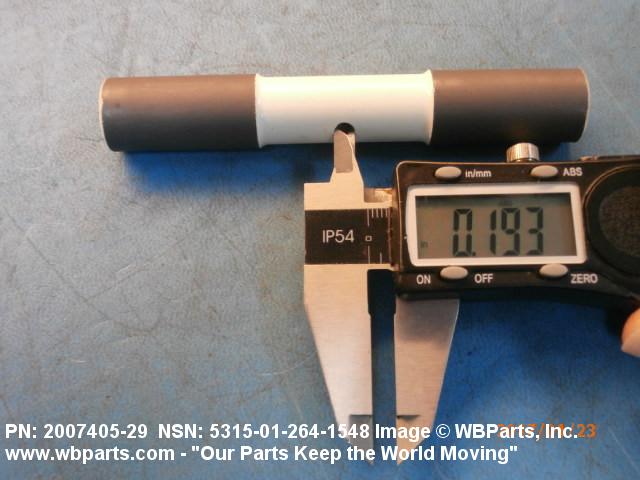

| FIRST HOLE DIAMETER | 0.193 INCHES MINIMUM AND 0.204 INCHES MAXIMUM |
