NSN 5315-01-216-0421 AAP139C426, AAP139C4-2-6, AAP139E426

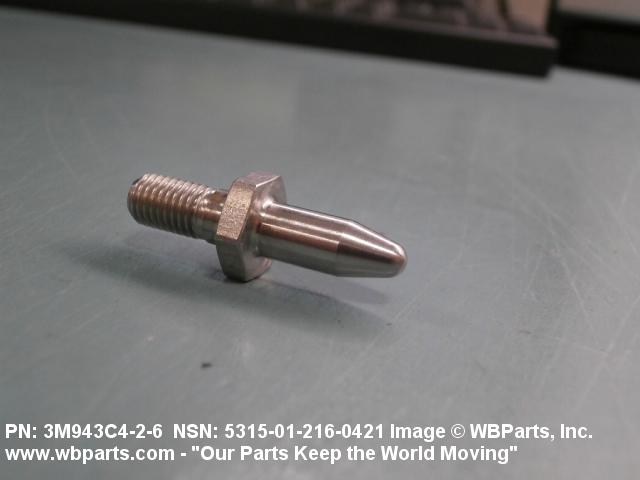

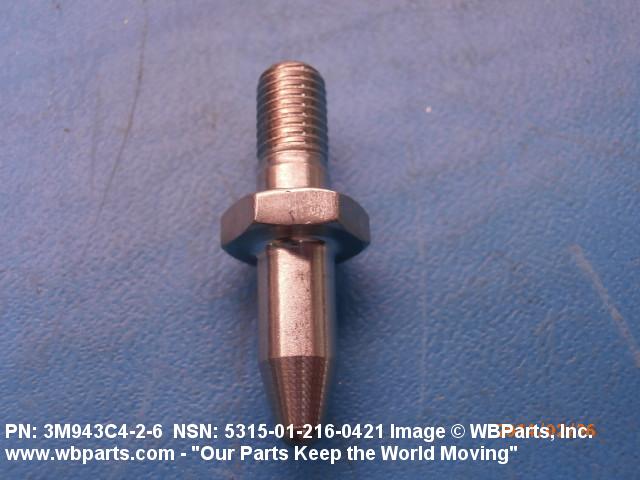

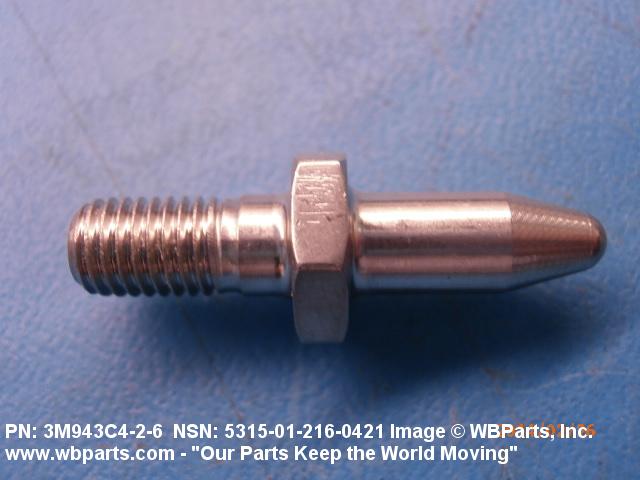

Product Details | HEADLESS SHOULDER PIN
5315-01-216-0421 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: AAP139C426, AAP139C4-2-6, AAP139E426, AAP139E4-2-6, D792683C2N6, VS3258C426, VS3258C4-2-6, VS3258E426, VS3258E4-2-6, 11415C426, 11415C4-2-6, 3M943C426, 3M943C4-2-6, 3M943E426, 3M943E4-2-6, 5315-01-216-0421, 01-216-0421, 5315012160421, 012160421
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 SEP 1985 | 01-216-0421 | 16749 ( PIN, SHOULDER, HEADLESS ) |

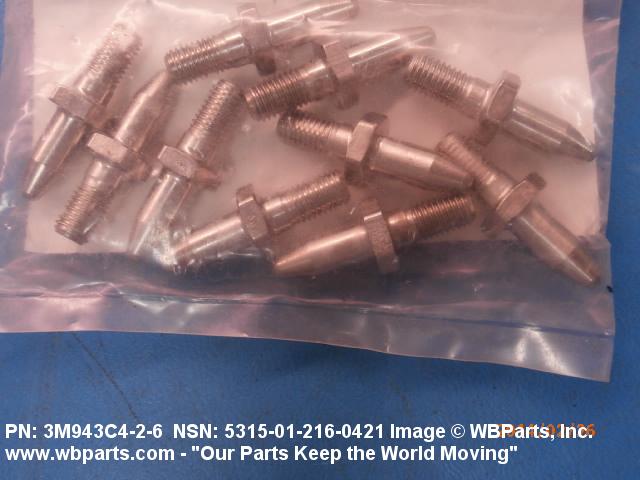

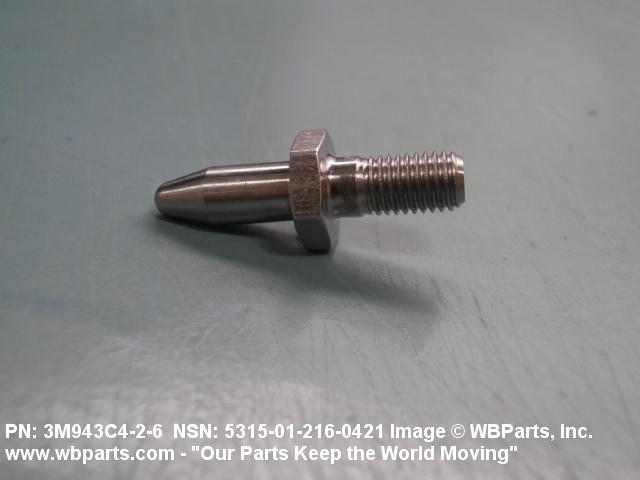

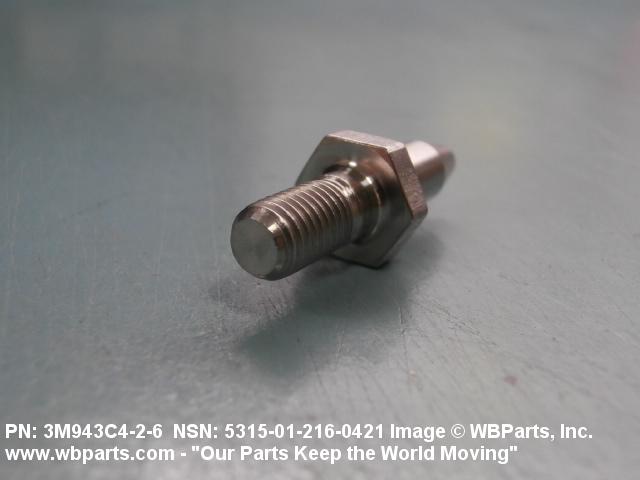

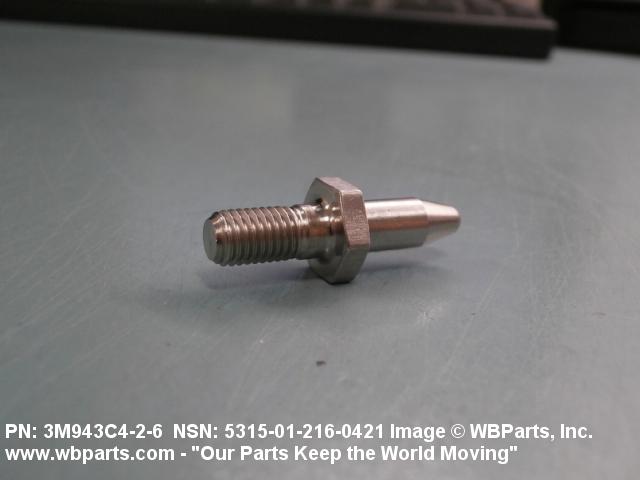

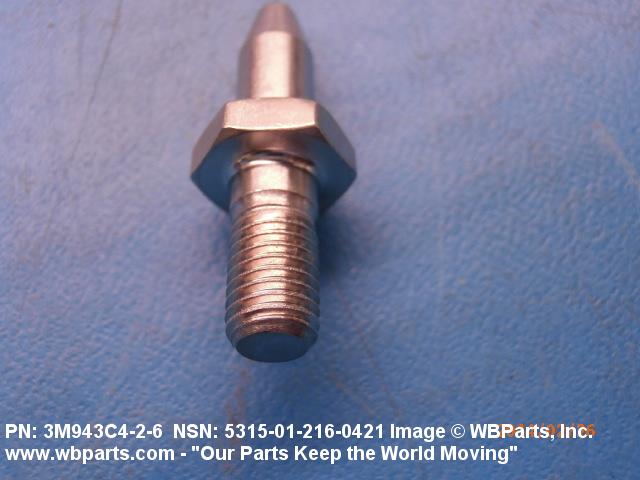

Drawings & Photos | NSN 5315-01-216-0421
Demand History | NSN 5315-01-216-0421
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-216-0421 | 2022-10-278 | 11 | United States |
| 5315-01-216-0421 | 2021-08-225 | 4 | United States |
| 11415C4-2-6 | 2021-05-140 | 5 | DIBBS |
| 3M943C4-2-6 | 2021-05-140 | 5 | DIBBS |
| AAP139C4-2-6 | 2021-05-140 | 5 | DIBBS |
| VS3258C4-2-6 | 2021-05-140 | 5 | DIBBS |
| 11415C4-2-6 | 2021-05-129 | 5 | DIBBS |
| 3M943C4-2-6 | 2021-05-129 | 5 | DIBBS |
| AAP139C4-2-6 | 2021-05-129 | 5 | DIBBS |
| VS3258C4-2-6 | 2021-05-129 | 5 | DIBBS |
| 3M943C426 | 2021-03-67 | 2 | United States |
| 3M943C426 | 2021-01-12 | 1 | United States |
| 3M943C426 | 2021-01-12 | 5 | United States |
| 11415C4-2-6 | 2020-04-100 | 2 | DIBBS |
| 3M943C4-2-6 | 2020-04-100 | 2 | DIBBS |
| AAP139C4-2-6 | 2020-04-100 | 2 | DIBBS |
| VS3258C4-2-6 | 2020-04-100 | 2 | DIBBS |
| 5315-01-216-0421 | 2019-03-60 | 10 | United States |
| 3M943C426 | 2016-03-90 | 24 | United States |
| 3M943C426 | 2014-05-142 | 10 | United States |
| 3M943C426 | 2014-02-44 | 4 | us |
| 5315-01-216-0421 | 2014-02-43 | 10 | United States |
Cross Reference | NSN 5315-01-216-0421
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11415C4-2-6 | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| 3M943C4-2-6 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| 3M943C4-2-6 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 3M943C4-2-6 | 56946 | G. S. PRECISION, INC. |
| 3M943C4-2-6 | 73197 | HI-SHEAR CORPORATION |
| 3M943C4-2-6 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 3M943C4-2-6 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| 3M943C4-2-6 | L4528 | LISI AEROSPACE CANADA CORP |
| 3M943E4-2-6 | 73197 | HI-SHEAR CORPORATION |
| AAP139C4-2-6 | 84256 | AVIBANK MFG., INC. |
| AAP139E4-2-6 | 84256 | AVIBANK MFG., INC. |
| D792683C2N6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| D792683C2N6 | 97928 | HUCK INTL INC |
| VS3258C4-2-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| VS3258E4-2-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-216-0421
Related Products | NSN 5315-01-216-0421
Technical Data | NSN 5315-01-216-0421
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND B FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-763,COND B FED SPEC 2ND MATERIAL RESPONSE OR MMS265,FSCM 76301 MFR REF 3RD MATERIAL RESPONSE OVERALL |

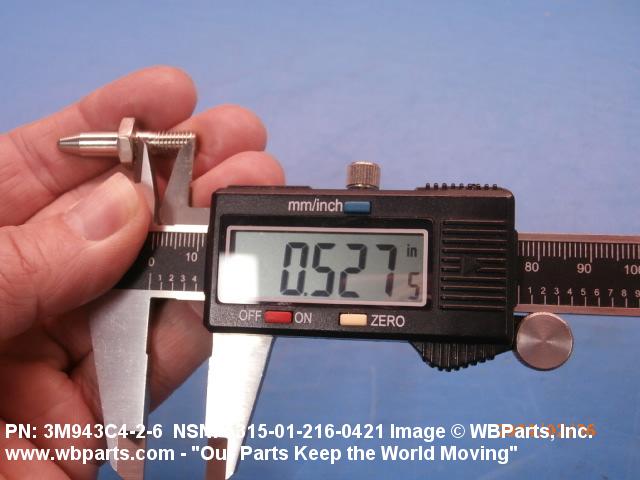

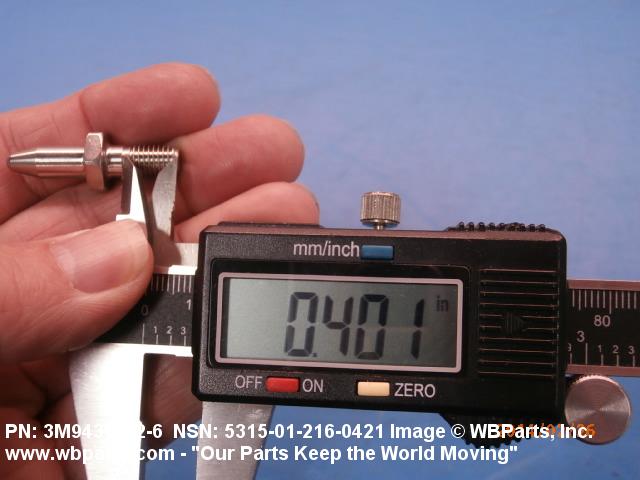

| SHANK LENGTH | 0.530 INCHES NOMINAL |
| SECOND END TAPER ANGLE | ANY ACCEPTABLE |
| SECOND SHANK DIAMETER | 0.2490 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| THREAD LENGTH | 0.405 INCHES NOMINAL |

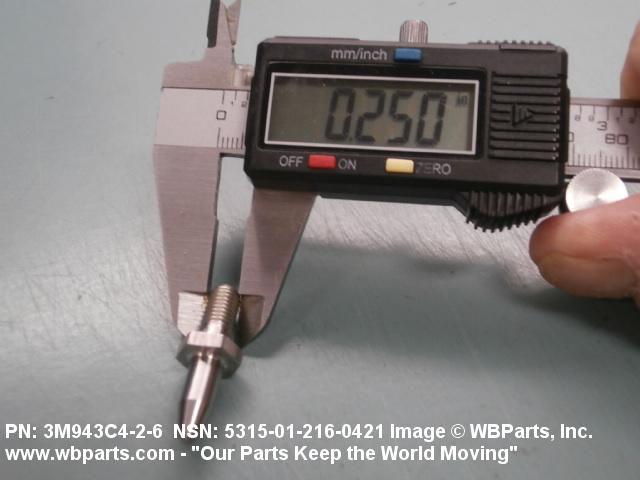

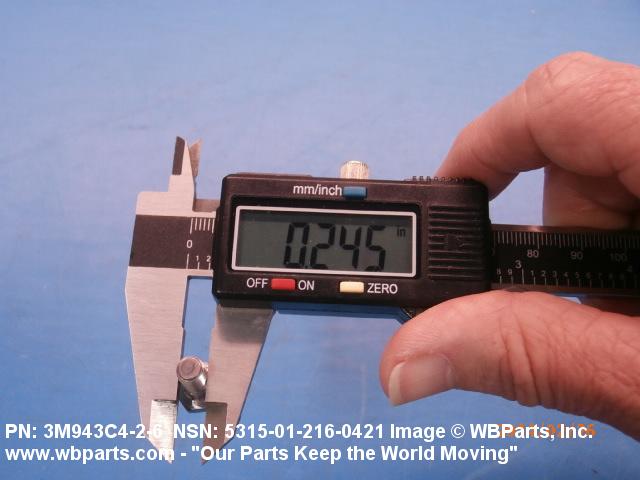

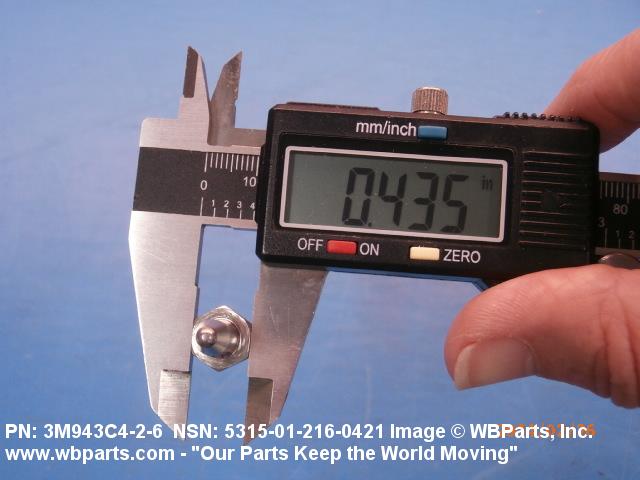

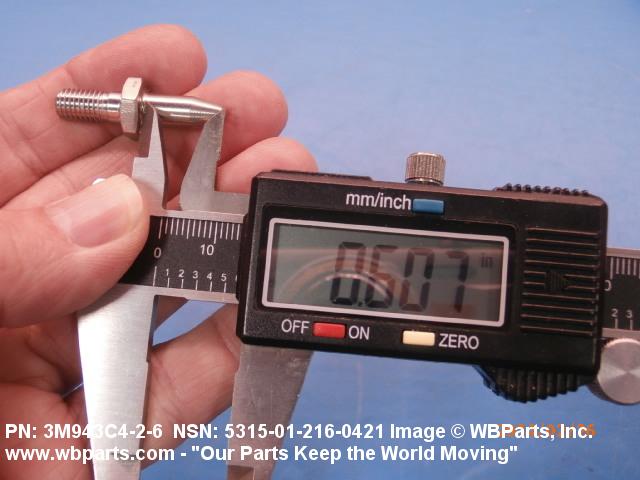

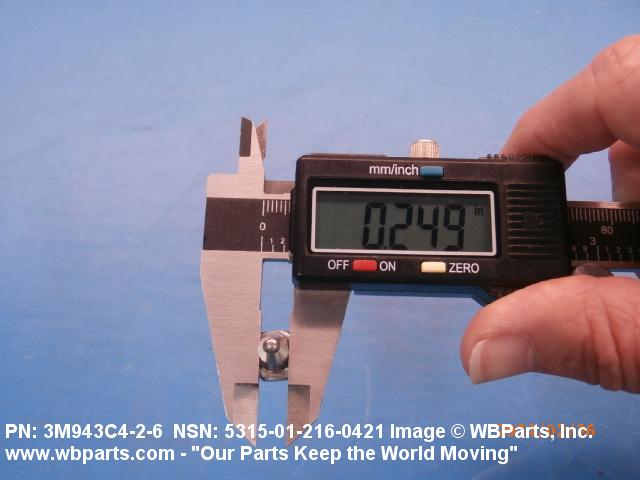

| NOMINAL THREAD SIZE | 0.250 INCHES |
| FIRST END LOCATION | THREADED END |
| SHOULDER WIDTH ACROSS FLATS | 0.438 INCHES NOMINAL |
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 303SE OVERALL |
| SECOND END TAPER LENGTH | 0.250 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| SECOND END TIP RADIUS | 0.060 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | SHOULDER |
| SECOND END STYLE | CHAMFERED |
| SECOND SHANK LENGTH | 0.605 INCHES MINIMUM AND 0.665 INCHES MAXIMUM |
| FIRST END STYLE | SQUARE |
| SHANK DIAMETER | 0.2490 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |

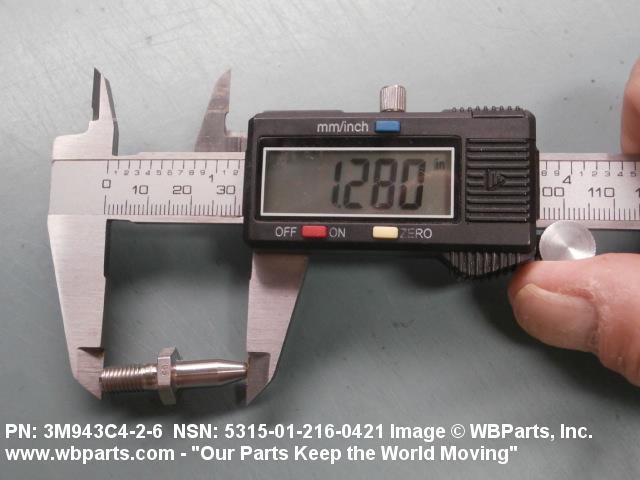

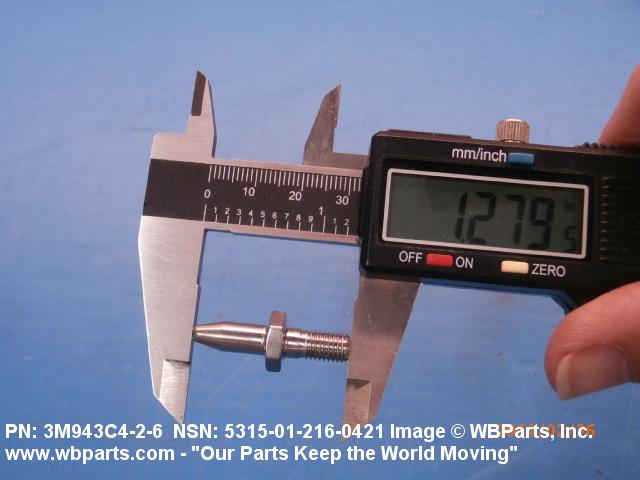

| OVERALL LENGTH | 1.280 INCHES NOMINAL |
