NSN 5315-01-177-5979 10123189 , 7209106001, 7209106-001
Product Details | HEADLESS SHOULDER PIN
5315-01-177-5979 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 10123189 , 7209106001, 7209106-001, 5315-01-177-5979, 01-177-5979, 5315011775979, 011775979
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 APR 1984 | 01-177-5979 | 16749 ( PIN, SHOULDER, HEADLESS ) |
Drawings & Photos | NSN 5315-01-177-5979
Cross Reference | NSN 5315-01-177-5979
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7209106-001 | 93322 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-177-5979
Related Products | NSN 5315-01-177-5979
Technical Data | NSN 5315-01-177-5979
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582,COND A ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

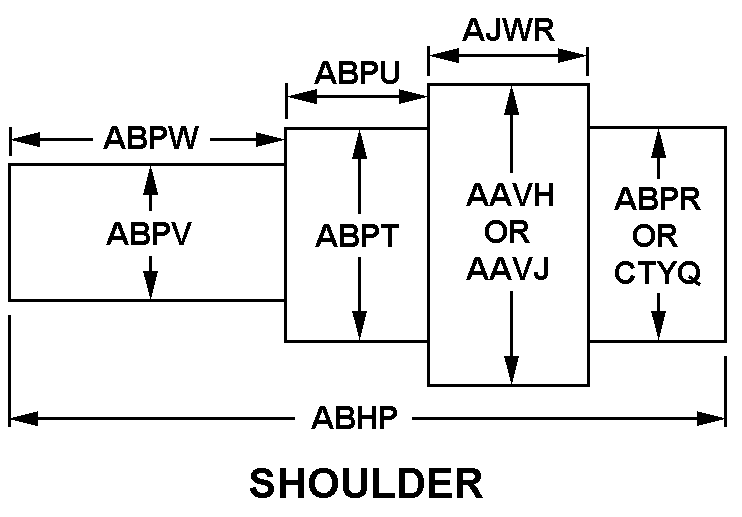

| STYLE DESIGNATOR | J167 SHOULDER |
| SHOULDER DIAMETER | 0.068 INCHES MINIMUM AND 0.072 INCHES MAXIMUM |
| OVERALL LENGTH | 0.708 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.220 INCHES NOMINAL |
| SECOND STEP DIAMETER | 0.088 INCHES MINIMUM AND 0.092 INCHES MAXIMUM |
| SECOND STEP LENGTH | 0.100 INCHES NOMINAL |
| THIRD STEP DIAMETER | 0.086 INCHES NOMINAL |
| THIRD STEP LENGTH | 0.125 INCHES NOMINAL |
| FIRST STEP WIDTH ACROSS FLATS | 0.125 INCHES NOMINAL |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 16 CHAMFERED |
| SECOND END TIP RADIUS | 0.020 INCHES NOMINAL |
| SECOND END TAPER LENGTH | ANY ACCEPTABLE |
| SECOND END TAPER ANGLE | 30.0 DEGREES NOMINAL |
| FIRST END LOCATION | SQUARE END |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.125 INCHES NOMINAL |
| SURFACE FINISH | 63.0 MICROINCHES OVERALL |
Restrictions/Controls & Freight Information | NSN 5315-01-177-5979
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-177-5979
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
