NSN 5315-01-164-1203 AAP139C428, AAP139C4-2-8, D792683C2N8
Product Details | HEADLESS SHOULDER PIN
5315-01-164-1203 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: AAP139C428, AAP139C4-2-8, D792683C2N8, VS3258C428, VS3258C4-2-8, 10123175 , 11415C428, 11415C4-2-8, 3M943C428, 3M943C4-2-8, 5315-01-164-1203, 01-164-1203, 5315011641203, 011641203
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 OCT 1983 | 01-164-1203 | 16749 ( PIN, SHOULDER, HEADLESS ) |
Drawings & Photos | NSN 5315-01-164-1203
Demand History | NSN 5315-01-164-1203
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-164-1203 | 2024-07-192 | 6 | United States |
| 3M943C428 | 2024-03-67 | 70 | US |
| 11415C4-2-8 | 2023-08-232 | 4 | DIBBS |
| 3M943C4-2-8 | 2023-08-232 | 4 | DIBBS |
| AAP139C4-2-8 | 2023-08-232 | 4 | DIBBS |
| VS3258C4-2-8 | 2023-08-232 | 4 | DIBBS |
| 11415C4-2-8 | 2023-01-18 | 3 | DIBBS |
| 3M943C4-2-8 | 2023-01-18 | 3 | DIBBS |
| AAP139C4-2-8 | 2023-01-18 | 3 | DIBBS |
| VS3258C4-2-8 | 2023-01-18 | 3 | DIBBS |
| 11415C4-2-8 | 2022-09-261 | 14 | DIBBS |
| 3M943C4-2-8 | 2022-09-261 | 14 | DIBBS |
| AAP139C4-2-8 | 2022-09-261 | 14 | DIBBS |
| VS3258C4-2-8 | 2022-09-261 | 14 | DIBBS |
| 11415C4-2-8 | 2022-06-156 | 20 | DIBBS |
| 3M943C4-2-8 | 2022-06-156 | 20 | DIBBS |
| AAP139C4-2-8 | 2022-06-156 | 20 | DIBBS |
| VS3258C4-2-8 | 2022-06-156 | 20 | DIBBS |
| 5315-01-164-1203 | 2022-05-130 | 3 | United States |
| 3M943C428 | 2022-04-111 | 4 | United States |
| 11415C4-2-8 | 2021-11-307 | 18 | DIBBS |
| 3M943C4-2-8 | 2021-11-307 | 18 | DIBBS |
| AAP139C4-2-8 | 2021-11-307 | 18 | DIBBS |
| VS3258C4-2-8 | 2021-11-307 | 18 | DIBBS |
| 11415C4-2-8 | 2021-08-213 | 16 | DIBBS |
| 3M943C4-2-8 | 2021-08-213 | 16 | DIBBS |
| AAP139C4-2-8 | 2021-08-213 | 16 | DIBBS |
| VS3258C4-2-8 | 2021-08-213 | 16 | DIBBS |
| 3M943C428 | 2021-06-172 | 1 | United States |
| 3M943C428 | 2020-05-135 | 10 | United States |
Cross Reference | NSN 5315-01-164-1203
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11415C4-2-8 | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| 3M943C4-2-8 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| 3M943C4-2-8 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 3M943C4-2-8 | 56946 | G. S. PRECISION, INC. |
| 3M943C4-2-8 | 73197 | HI-SHEAR CORPORATION |
| 3M943C4-2-8 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 3M943C4-2-8 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| 3M943C4-2-8 | L4528 | LISI AEROSPACE CANADA CORP |
| AAP139C4-2-8 | 84256 | AVIBANK MFG., INC. |
| D792683C2N8 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| D792683C2N8 | 97928 | HUCK INTL INC |
| VS3258C4-2-8 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-164-1203
Related Products | NSN 5315-01-164-1203
Technical Data | NSN 5315-01-164-1203
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 303SE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-763 FED SPEC 2ND MATERIAL RESPONSE OR MMS265,FSCM 76301 MFR REF 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | J161 SHOULDER |
| SHANK LENGTH | 0.530 INCHES NOMINAL |

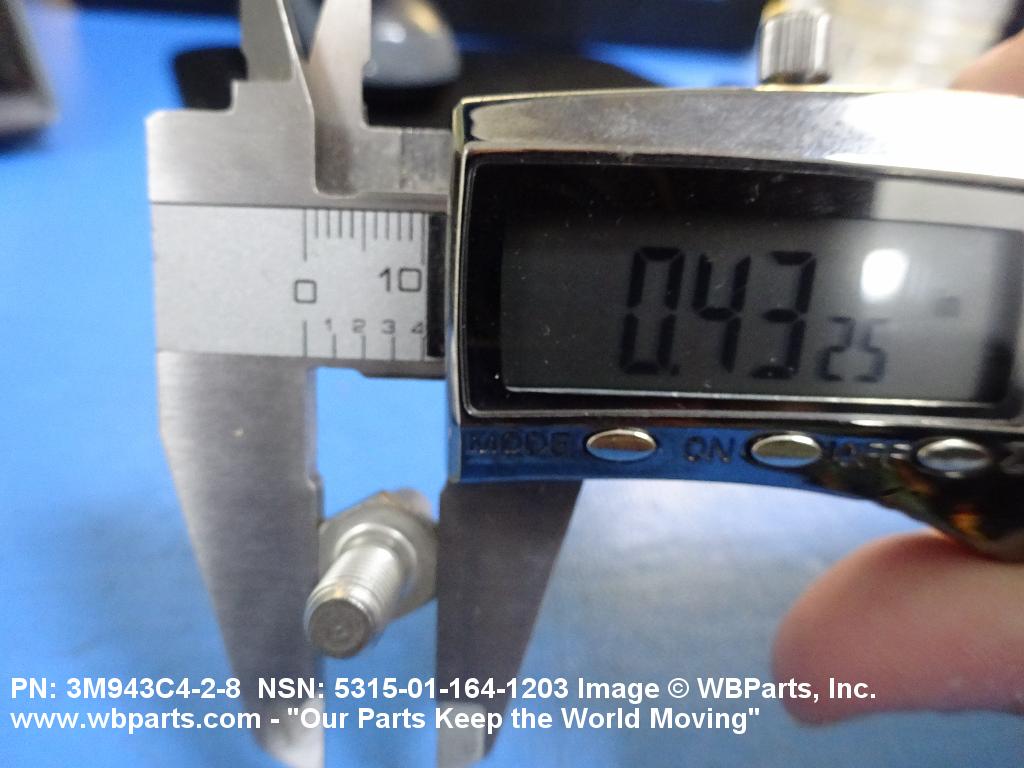

| SHOULDER WIDTH ACROSS FLATS | 0.438 INCHES NOMINAL |

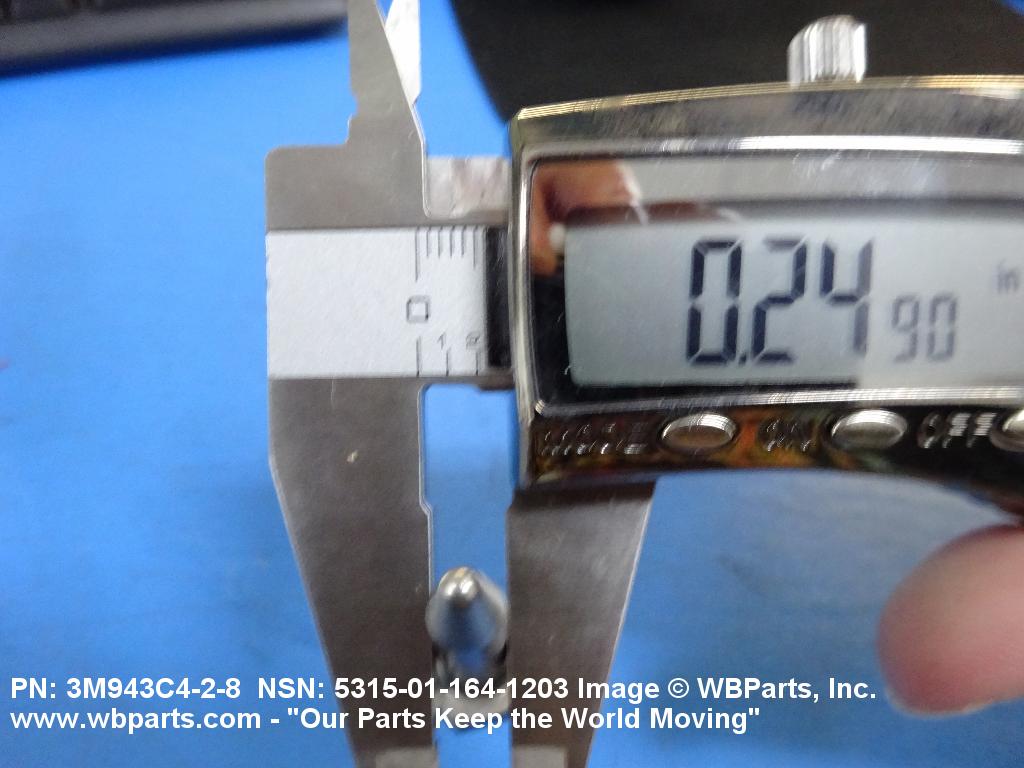

| SHANK DIAMETER | 0.2490 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
