NSN 5315-01-145-7015 8034385051X034, 803-4385051-X-034, 8034385051X34
Product Details | HEADED GROOVED PIN
5315-01-145-7015 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Part Alternates: 8034385051X034, 803-4385051-X-034, 8034385051X34, 803-4385051-X-34, 5315-01-145-7015, 01-145-7015, 5315011457015, 011457015
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 JAN 1983 | 01-145-7015 | 02382 ( PIN, GROOVED, HEADED ) |
Drawings & Photos | NSN 5315-01-145-7015
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-145-7015
Related Products | NSN 5315-01-145-7015
Technical Data | NSN 5315-01-145-7015
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OVERALL |
| STYLE DESIGNATOR | E93 GROOVE |
| DIAMETER | 0.7503 INCHES MINIMUM AND 0.7507 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.688 INCHES NOMINAL |
| UNDER HEAD LENGTH | 6.031 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.125 INCHES NOMINAL |
| FIRST END STYLE | 9 SQUARE |

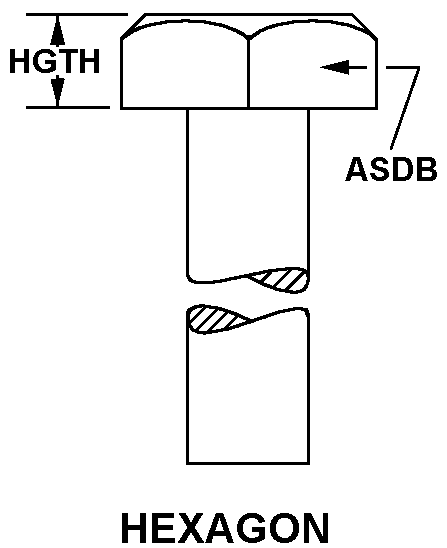

| HEAD STYLE | 22 HEXAGON |
| WIDTH ACROSS FLATS | ANY ACCEPTABLE |
| HEIGHT | 0.156 INCHES NOMINAL |
| SURFACE FINISH | 63.0 MICROINCHES OVERALL |
| SPECIAL FEATURES | SQUARE END THREADED 0.500 IN. DIA 20 UNF-2A,0.625 IN. LONG |
Restrictions/Controls & Freight Information | NSN 5315-01-145-7015
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-145-7015
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
