Product Details | HEADLESS SHOULDER PIN

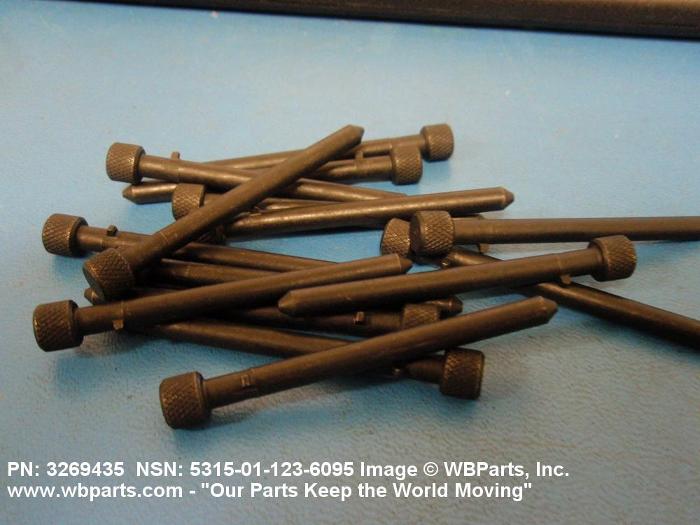

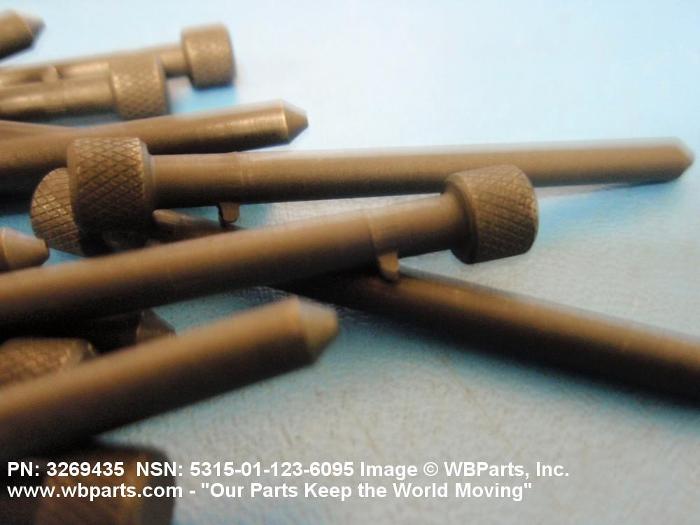

5315-01-123-6095 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 3269435, 5315PL0952941, 717124417904 , 5315-01-123-6095, 01-123-6095, 5315011236095, 011236095
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 DEC 1981 | 01-123-6095 | 16749 ( PIN, SHOULDER, HEADLESS ) |
Drawings & Photos | NSN 5315-01-123-6095
Demand History | NSN 5315-01-123-6095
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-123-6095 | 2024-08-233 | 247 | DIBBS |
| 5315-01-123-6095 | 2019-06-173 | 50 | US |
| 5315-01-123-6095 | 2017-11-318 | 231 | DIBBS |
| 5315-01-123-6095 | 2017-11-306 | 231 | DIBBS |
| 5315-01-123-6095 | 2012-02-58 | 8 | US |
| 3269435 | 2012-01-10 | 5 | United States |
| 3269435 | 2011-07-209 | 10 | US |
| 5315-01-123-6095 | 2011-01-11 | 15 | United States |
| 5315-01-123-6095 | 2010-09-252 | 10 | US |
| 5315-01-123-6095 | 2009-12-345 | 1250 | DIBBS |
| 5315-01-123-6095 | 2009-08-240 | 304 | DIBBS |
Cross Reference | NSN 5315-01-123-6095
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-123-6095
Related Products | NSN 5315-01-123-6095
Technical Data | NSN 5315-01-123-6095
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| STYLE DESIGNATOR | J163 SHOULDER |
| SHANK LENGTH | 2.656 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.370 INCHES NOMINAL |
| SHANK DIAMETER | 0.185 INCHES NOMINAL |
| OVERALL LENGTH | 4.312 INCHES NOMINAL |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 3269435 |
Restrictions/Controls & Freight Information | NSN 5315-01-123-6095
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
