NSN 5315-01-123-6092 3269472, 5315PL0925869, 717124437601
Product Details | KNURLED STRAIGHT PIN

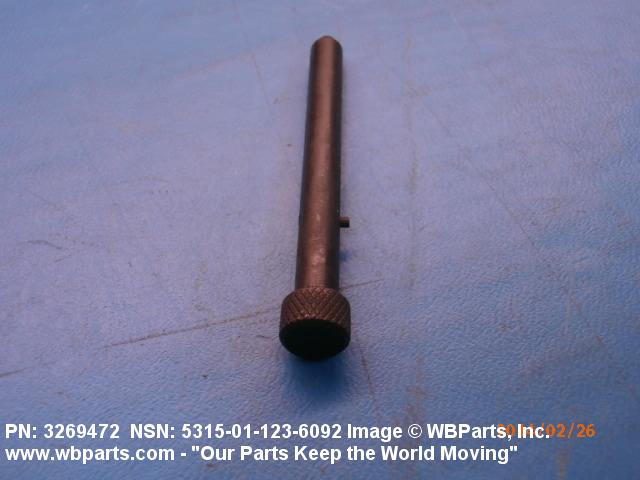

5315-01-123-6092 A headless, cylindrically-shaped, straight, solid item with or without a drilled hole(s). It has a straight or diamond knurl. Its length must not exceed 12 inches (304 MM). It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item.
Part Alternates: 3269472, 5315PL0925869, 717124437601 , 5315-01-123-6092, 01-123-6092, 5315011236092, 011236092
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 DEC 1981 | 01-123-6092 | 33037 ( PIN, STRAIGHT, KNURLED ) |
Drawings & Photos | NSN 5315-01-123-6092
Demand History | NSN 5315-01-123-6092
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-123-6092 | 2024-04-100 | 1 | United States |
| 5315-01-123-6092 | 2023-11-329 | 4 | MA |
| 5315-01-123-6092 | 2023-08-221 | 6 | CL |
| 5315-01-123-6092 | 2023-06-173 | 2 | US |
| 5315-01-123-6092 | 2022-09-270 | 2650 | DIBBS |
| 5315-01-123-6092 | 2022-03-79 | 2756 | DIBBS |
| 5315-01-123-6092 | 2021-07-196 | 50 | US |
| 5315-01-123-6092 | 2021-07-196 | 600 | US |
| 5315-01-123-6092 | 2021-07-196 | 1000 | US |
| 5315-01-123-6092 | 2021-05-140 | 20 | United Arab Emirates |
| 5315-01-123-6092 | 2021-02-53 | 5 | US |
| 5315-01-123-6092 | 2020-10-287 | 2481 | DIBBS |
| 5315-01-123-6092 | 2020-03-91 | 35 | US |
| 5315-01-123-6092 | 2019-12-336 | 2692 | DIBBS |
| 3269472 | 2019-08-218 | 3 | United States |
| 5315-01-123-6092 | 2019-06-171 | 3014 | DIBBS |
| 3269472 | 2019-06-162 | 3 | United States |
| 5315-01-123-6092 | 2018-03-64 | 4865 | DIBBS |
| 5315-01-123-6092 | 2018-01-04 | 1 | DIBBS-RFPs |
| 5315-01-123-6092 | 2017-08-243 | 3377 | DIBBS |
| 5315-01-123-6092 | 2017-01-08 | 4945 | DIBBS |
| 5315-01-123-6092 | 2016-10-300 | 4132 | DIBBS |
| 5315-01-123-6092 | 2016-08-215 | 4132 | DIBBS |
| 5315-01-123-6092 | 2014-02-50 | 25 | United States |
| 5315-01-123-6092 | 2012-02-58 | 10 | US |
| 3269472 | 2012-01-10 | 10 | United States |
| 3269472 | 2011-07-209 | 20 | US |
| 5315-01-123-6092 | 2011-01-11 | 100 | United States |
| 5315-01-123-6092 | 2010-11-311 | 6 | US |
| 5315-01-123-6092 | 2010-09-252 | 50 | US |
| 5315-01-123-6092 | 2008-01-16 | 1000 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-123-6092
Related Products | NSN 5315-01-123-6092
Technical Data | NSN 5315-01-123-6092
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| STYLE DESIGNATOR | R266 DIAMOND KNURLED |

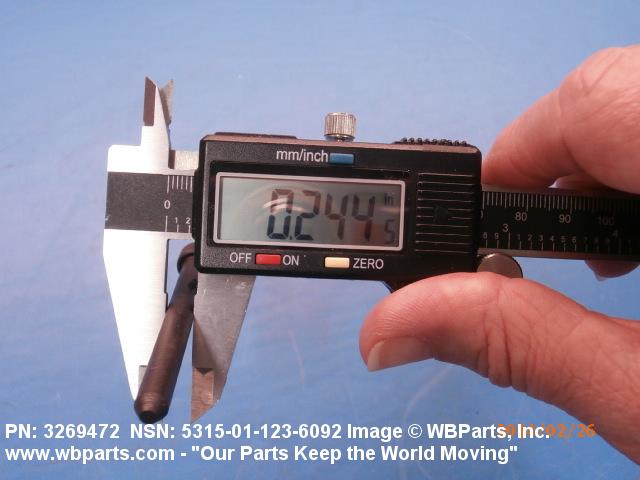

| OVERALL LENGTH | 2.710 INCHES NOMINAL |

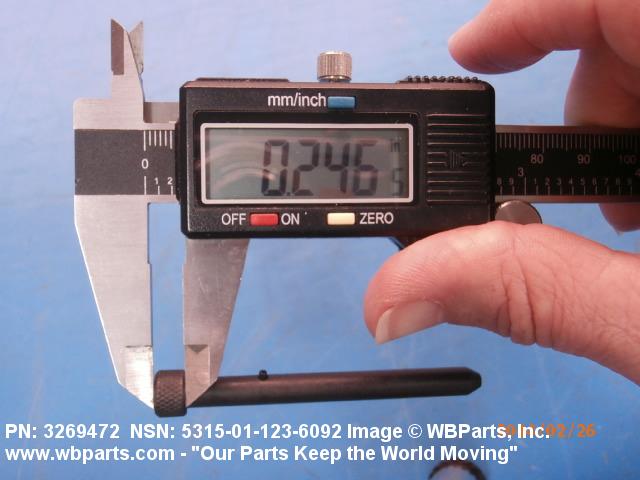

| DIAMETER | 0.247 INCHES NOMINAL |

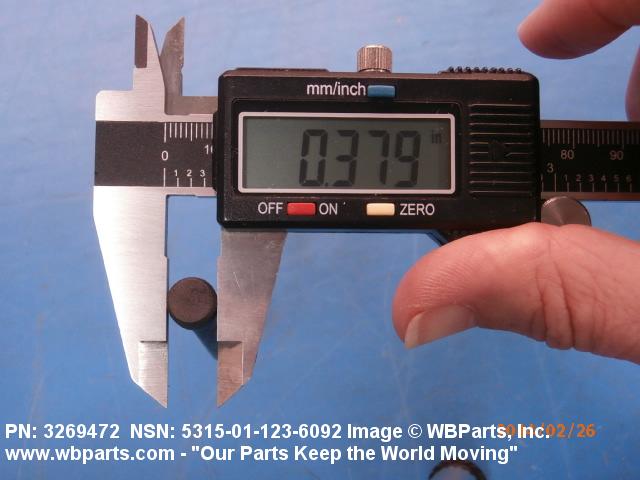

| KNURL OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| KNURL LENGTH | 0.250 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.120 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 30.0 DEGREES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |

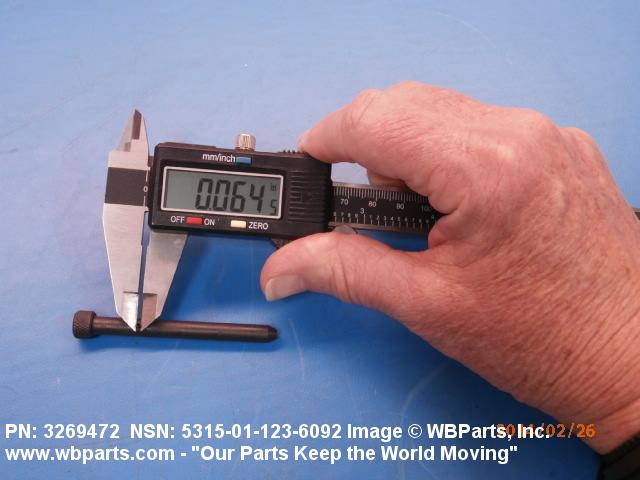

| FIRST HOLE DIAMETER | 0.063 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.615 INCHES NOMINAL |

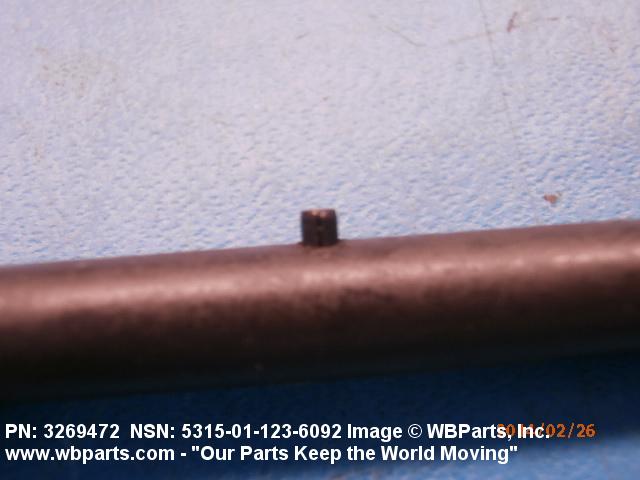

| SPECIAL FEATURES | WITH PIN STRAIGHT HEADED;0.312 IN L;0.063 IN DIA |
