NSN 5315-01-116-7606 P04519, P045-19, 01-116-7606

Product Details | HEADLESS SHOULDER PIN

5315-01-116-7606 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.

Part Alternates: P04519, P045-19, 5315-01-116-7606, 01-116-7606, 5315011167606, 011167606

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	02 AUG 1981	01-116-7606	16749 ( PIN, SHOULDER, HEADLESS )

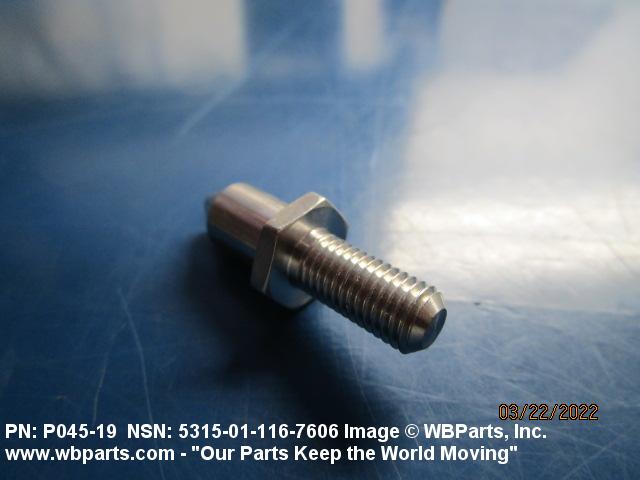

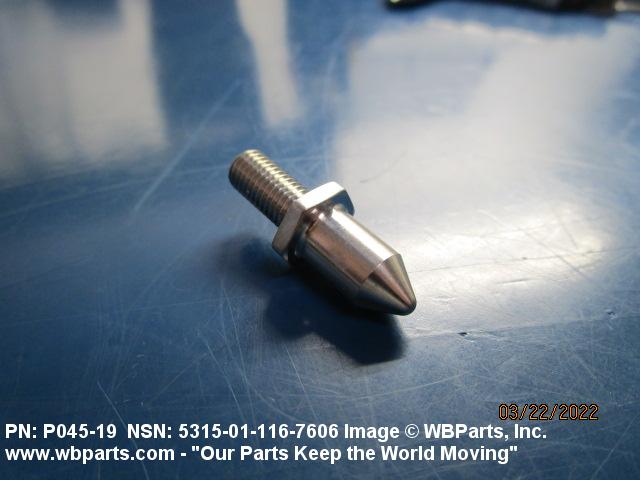

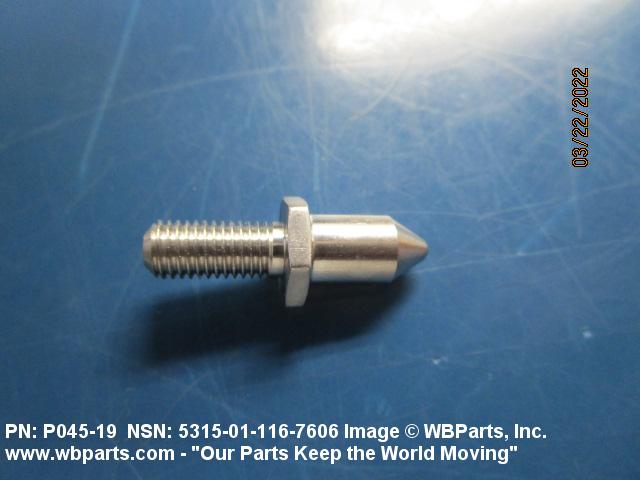

Drawings & Photos | NSN 5315-01-116-7606

Part Number	Request Date	QTY	Origin
5315-01-116-7606	2023-04-102	3	DIBBS
5315-01-116-7606	2023-04-94	3	DIBBS
5315-01-116-7606	2023-02-41	1	DIBBS
5315-01-116-7606	2023-02-33	1	DIBBS
5315-01-116-7606	2022-03-60	16	Israel
5315-01-116-7606	2021-11-312	100	DIBBS
5315-01-116-7606	2021-10-299	100	DIBBS
5315-01-116-7606	2021-04-110	25	DIBBS
5315-01-116-7606	2017-06-177	17	DIBBS
5315-01-116-7606	2017-06-169	17	DIBBS
P04519	2010-04-98	12	IL

Cross Reference | NSN 5315-01-116-7606

Part Number	Cage Code	Manufacturer
P045-19	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-116-7606

Compare

Related Products | NSN 5315-01-116-7606

5315-01-116-7607, 5315-01-116-7902, 5315-01-116-7948, 5315-01-116-7964, 5315-01-116-7991

Technical Data | NSN 5315-01-116-7606

Characteristic	Specifications
MATERIAL	STEEL COMP 302 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7720 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	J161 SHOULDER

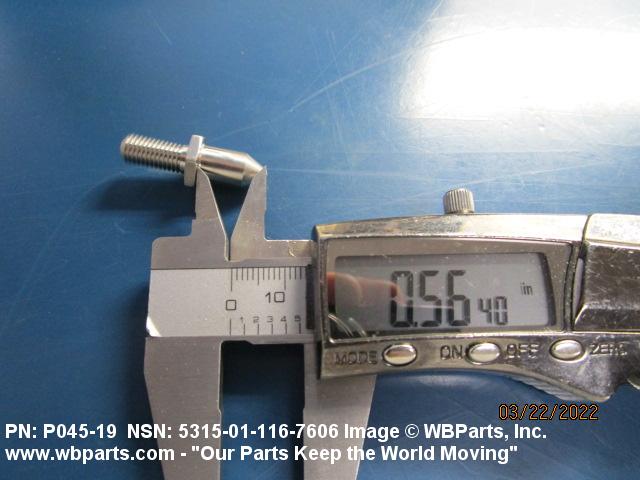

SHANK LENGTH	0.560 INCHES NOMINAL

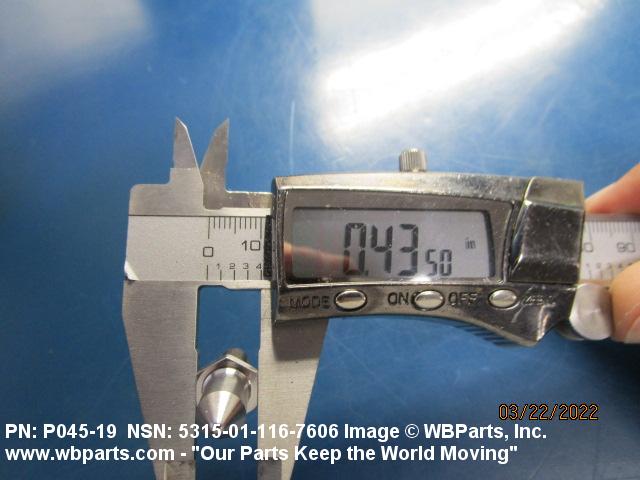

SHOULDER WIDTH ACROSS FLATS	0.437 INCHES NOMINAL

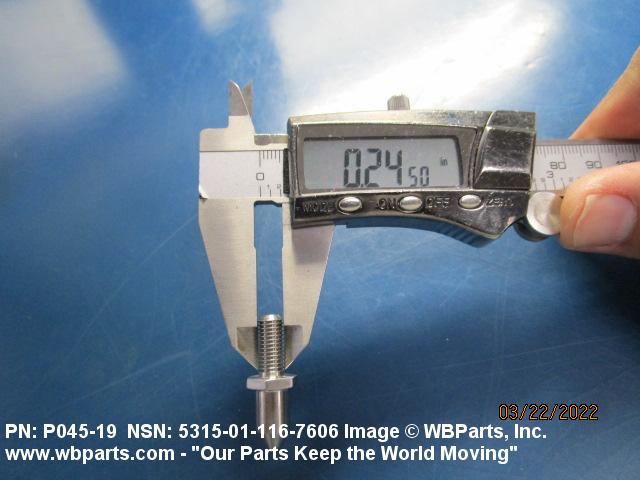

SHANK DIAMETER	0.250 INCHES NOMINAL

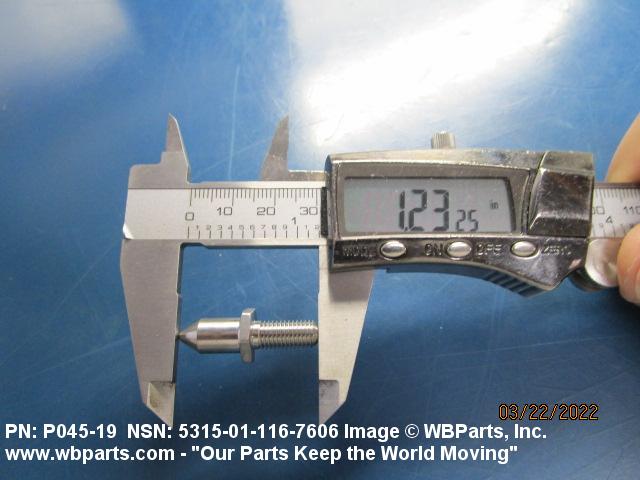

OVERALL LENGTH	1.218 INCHES NOMINAL
SECOND SHANK DIAMETER	0.311 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
SECOND SHANK LENGTH	0.578 INCHES NOMINAL
FIRST END STYLE	1 CHAMFERED
FIRST END TAPER LENGTH	0.050 INCHES NOMINAL
FIRST END TAPER ANGLE	45.0 DEGREES NOMINAL
SECOND END RELATIONSHIP WITH FIRST END	NOT IDENTICAL
SECOND END STYLE	16 CHAMFERED
SECOND END TIP RADIUS	0.060 INCHES NOMINAL
SECOND END TAPER LENGTH	0.200 INCHES NOMINAL
SECOND END TAPER ANGLE	ANY ACCEPTABLE
FIRST END LOCATION	THREADED END
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

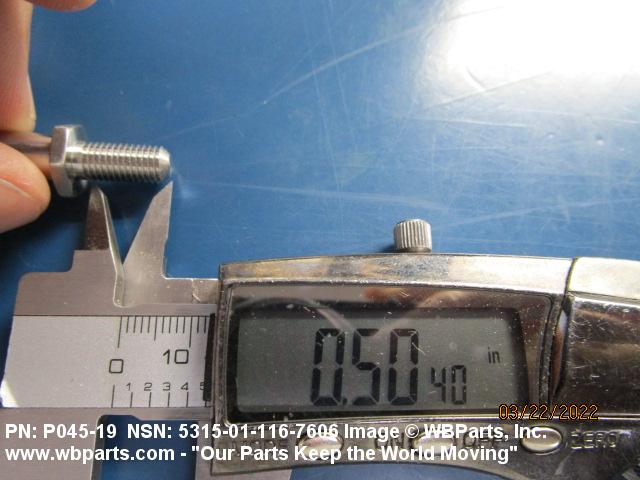

THREAD LENGTH	0.500 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5315-01-116-7606

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-01-116-7606

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
