Product Details | KNURLED STRAIGHT PIN

5315-01-115-1745 A headless, cylindrically-shaped, straight, solid item with or without a drilled hole(s). It has a straight or diamond knurl. Its length must not exceed 12 inches (304 MM). It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item.

Part Alternates: A51J1103913, A51J11039-13, 5315-01-115-1745, 01-115-1745, 5315011151745, 011151745

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 30 JUN 1981 01-115-1745

Drawings & Photos | NSN 5315-01-115-1745


Cross Reference | NSN 5315-01-115-1745

Part Number Cage Code Manufacturer
A51J11039-13 26512 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
A51J11039-13 61174 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-115-1745

Technical Data | NSN 5315-01-115-1745

Characteristic Specifications

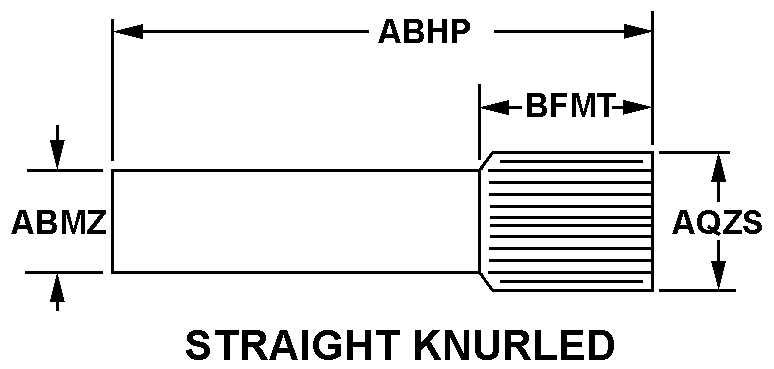

STYLE DESIGNATOR R262 STRAIGHT KNURLED
OVERALL LENGTH 0.562 INCHES NOMINAL
DIAMETER 0.023 INCHES MINIMUM AND 0.027 INCHES MAXIMUM
KNURL OUTSIDE DIAMETER 0.032 INCHES NOMINAL
KNURL LENGTH 0.187 INCHES NOMINAL
FIRST END STYLE 3 OVAL
SECOND END RELATIONSHIP WITH FIRST END NOT IDENTICAL
SECOND END STYLE 9 SQUARE
SPECIAL FEATURES 80 TEETH FINE KNURL

Restrictions/Controls & Freight Information | NSN 5315-01-115-1745

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5315-01-115-1745

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
