NSN 5315-01-085-3035 P04517, P045-17, 01-085-3035

Product Details | HEADLESS SHOULDER PIN

5315-01-085-3035 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.

Part Alternates: P04517, P045-17, 5315-01-085-3035, 01-085-3035, 5315010853035, 010853035

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	06 NOV 1979	01-085-3035	16749 ( PIN, SHOULDER, HEADLESS )

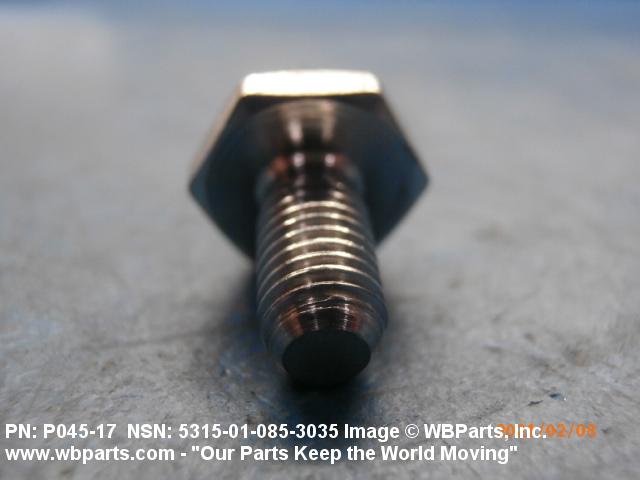

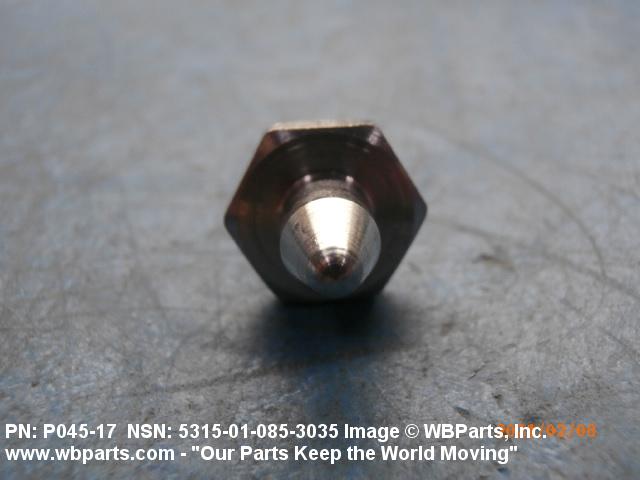

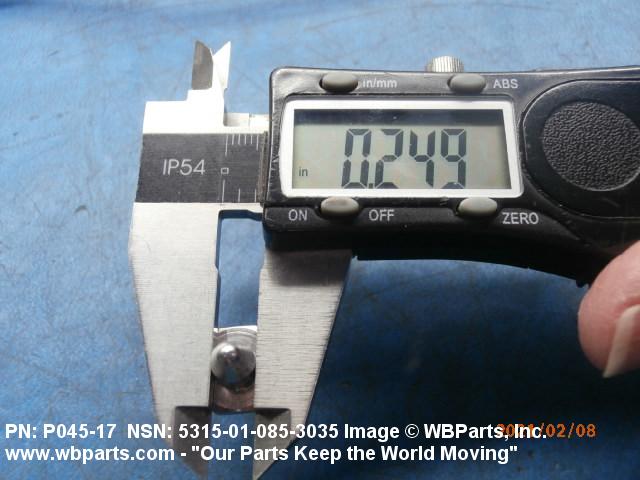

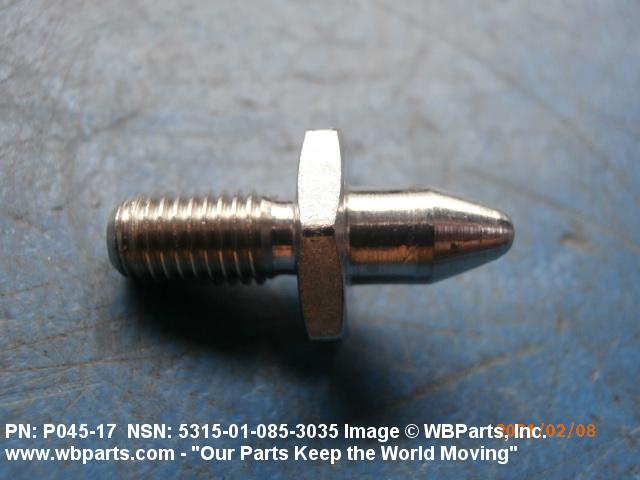

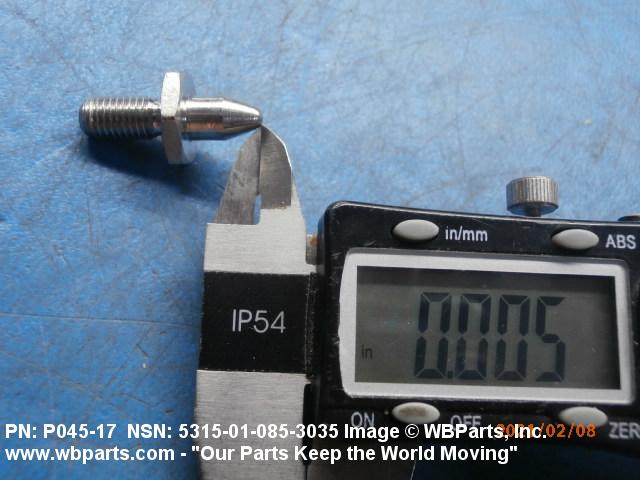

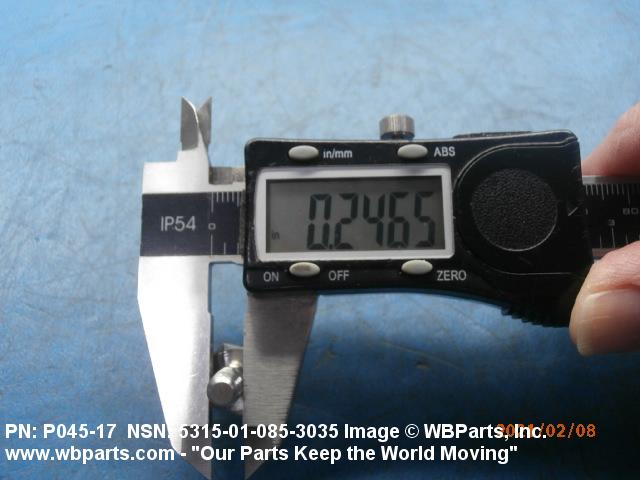

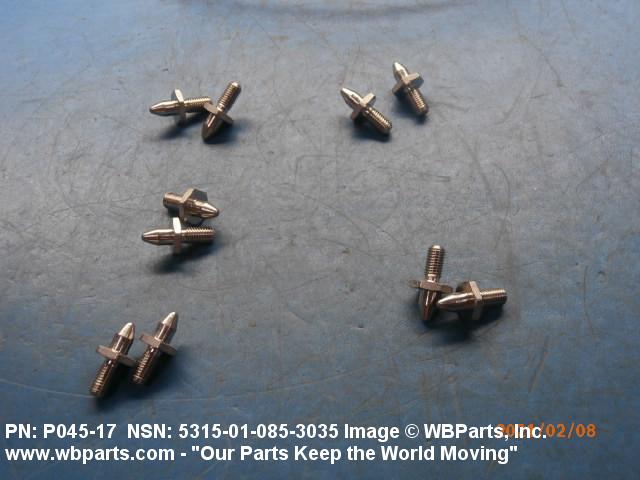

Drawings & Photos | NSN 5315-01-085-3035

Part Number	Request Date	QTY	Origin
5315-01-085-3035	2021-05-129	331	DIBBS
5315-01-085-3035	2021-03-87	121	DIBBS
5315-01-085-3035	2021-01-21	5	Israel
5315-01-085-3035	2021-01-21	10	Israel
5315-01-085-3035	2020-11-331	327	DIBBS
5315-01-085-3035	2019-04-107	200	DIBBS
5315-01-085-3035	2019-03-90	351	DIBBS
5315-01-085-3035	2018-10-289	50	United States
5315-01-085-3035	2018-04-93	200	DIBBS
5315-01-085-3035	2018-02-50	100	DIBBS
5315-01-085-3035	2016-11-307	85	DIBBS
5315-01-085-3035	2015-08-225	118	DIBBS
5315-01-085-3035	2010-12-361	107	DIBBS
5315-01-085-3035	2010-10-288	100	DIBBS
5315-01-085-3035	2010-07-182	16	DIBBS
5315-01-085-3035	2008-03-67	50	US
5315-01-085-3035	2008-03-67	50	US
P04517	2007-02-54	8	US

Cross Reference | NSN 5315-01-085-3035

Part Number	Cage Code	Manufacturer
P045-17	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-085-3035

Compare

Related Products | NSN 5315-01-085-3035

5315-01-085-3164, 5315-01-085-3428, 5315-01-085-3430, 5315-01-085-3434, 5315-01-085-3557

Technical Data | NSN 5315-01-085-3035

Characteristic	Specifications
MATERIAL	STEEL COMP 302 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7720 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	J161 SHOULDER

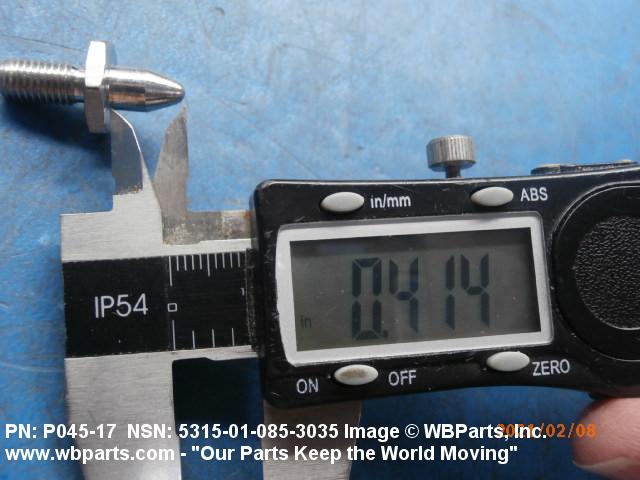

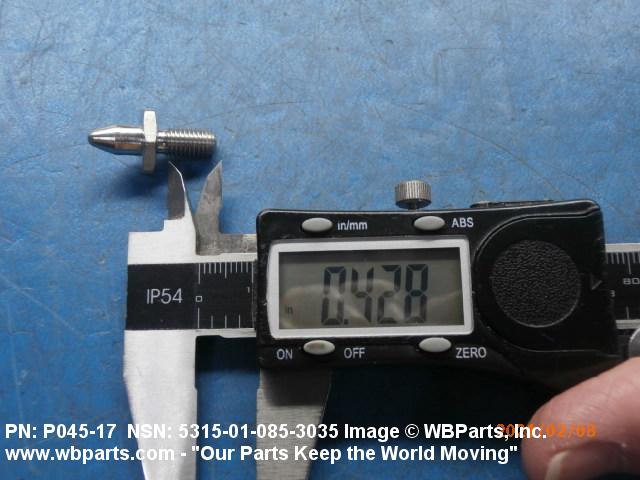

SHANK LENGTH	0.410 INCHES NOMINAL

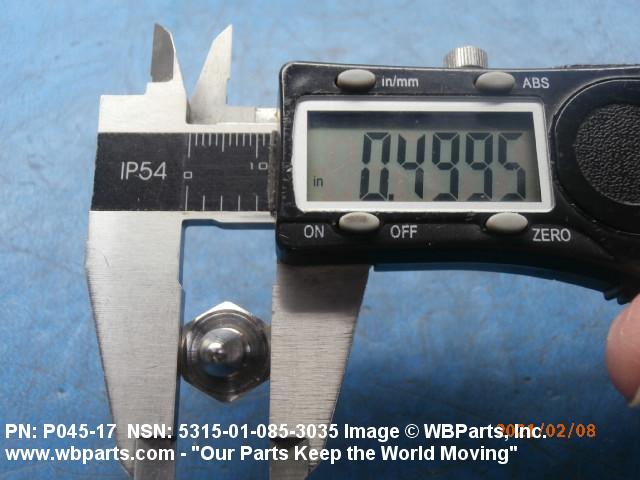

SHOULDER WIDTH ACROSS FLATS	0.500 INCHES NOMINAL
