Product Details | HEADLESS SHOULDER PIN
5315-01-083-9324 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 37675653001, 37675653-001, 5315-01-083-9324, 01-083-9324, 5315010839324, 010839324
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 OCT 1979 | 01-083-9324 | 16749 ( PIN, SHOULDER, HEADLESS ) |
Drawings & Photos | NSN 5315-01-083-9324
Cross Reference | NSN 5315-01-083-9324
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 37675653-001 | 08783 | RAYTHEON CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-083-9324
Related Products | NSN 5315-01-083-9324
Technical Data | NSN 5315-01-083-9324
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE1 OR TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | J163 SHOULDER |
| SHANK LENGTH | 0.380 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.375 INCHES NOMINAL |
| SHANK DIAMETER | 0.281 INCHES NOMINAL |
| OVERALL LENGTH | 1.560 INCHES NOMINAL |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |

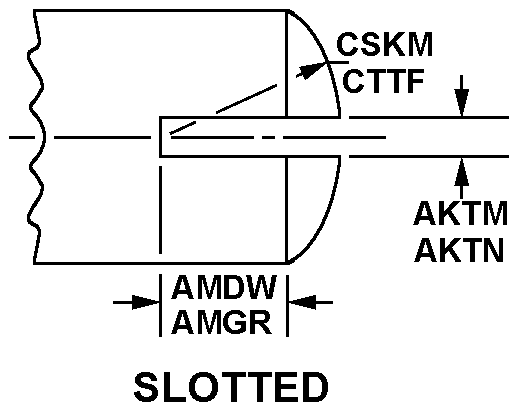

| SECOND END STYLE | 15 SLOTTED |
| SECOND END SLOT DEPTH | 0.060 INCHES NOMINAL |
| SECOND END SLOT WIDTH | 0.050 INCHES NOMINAL |
| SECOND END OUTER RADIUS | 0.140 INCHES NOMINAL |
| FIRST END LOCATION | SHOULDER END |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.180 INCHES NOMINAL |
| MANUFACTURERS CODE | 08783 |
| DESIGN CONTROL REFERENCE | 37675653-001 |
