NSN 5315-01-049-8718 P04514, P045-14, 01-049-8718

Product Details | HEADLESS SHOULDER PIN

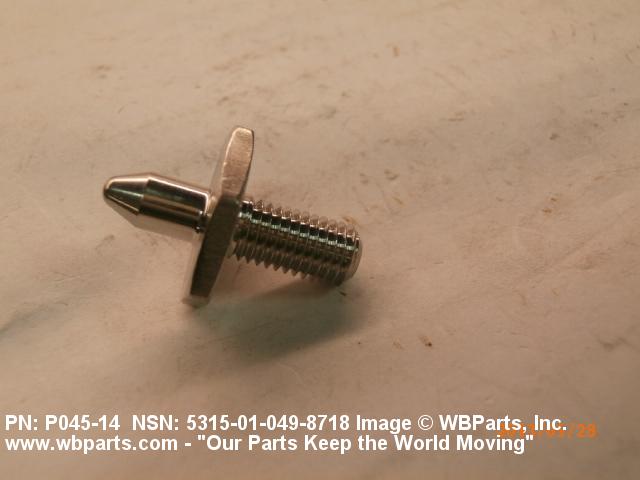

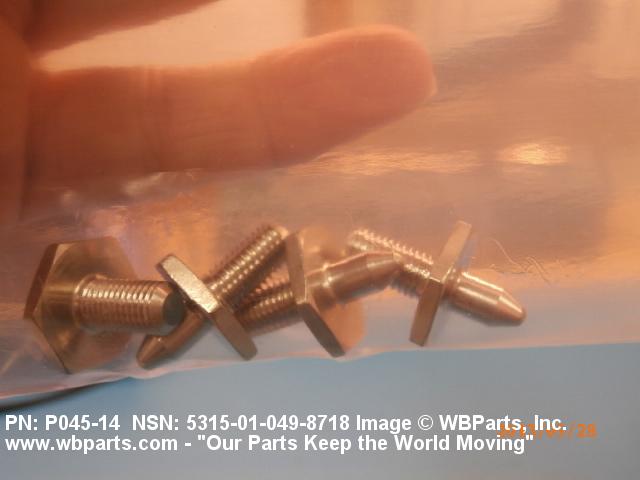

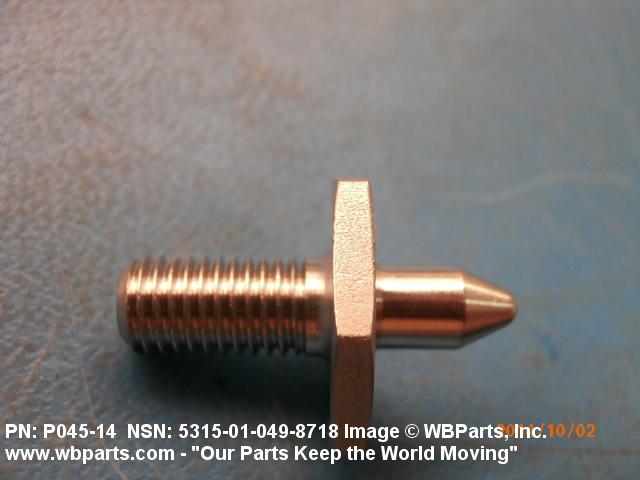

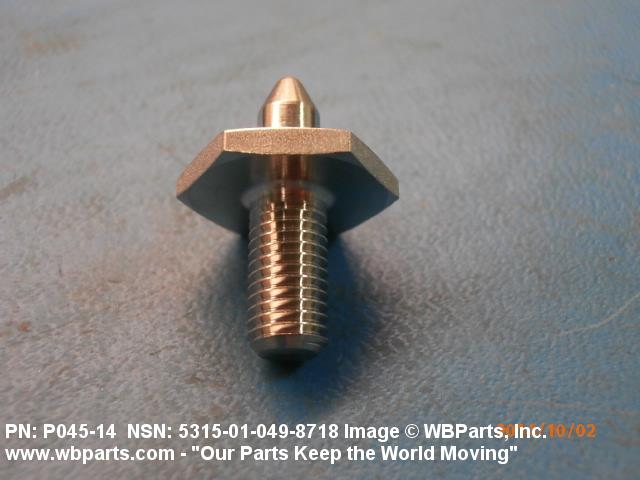

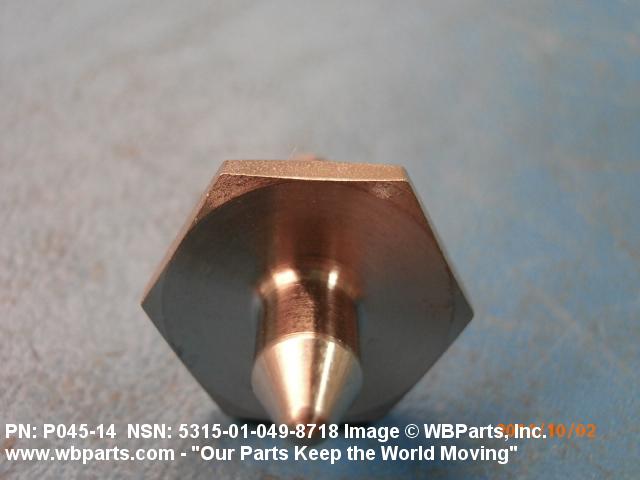

5315-01-049-8718 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.

Part Alternates: P04514, P045-14, 5315-01-049-8718, 01-049-8718, 5315010498718, 010498718

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	28 OCT 1977	01-049-8718	16749 ( PIN, SHOULDER, HEADLESS )

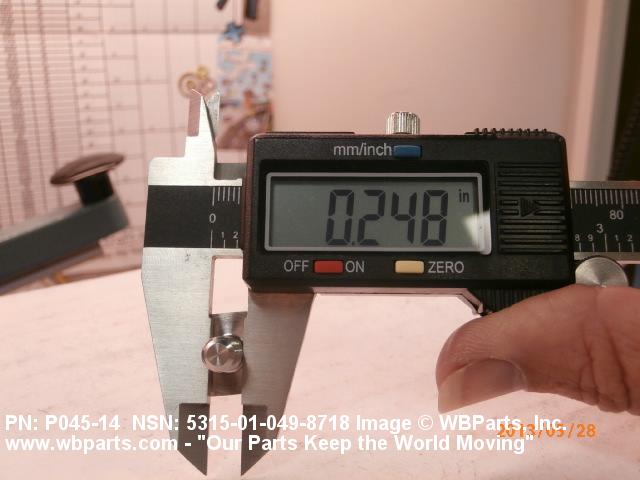

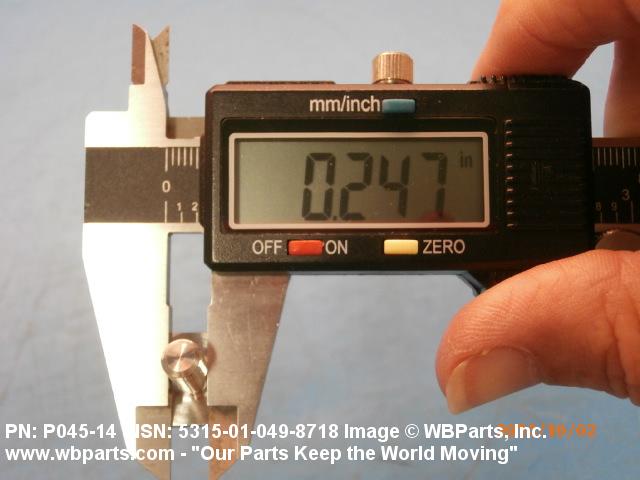

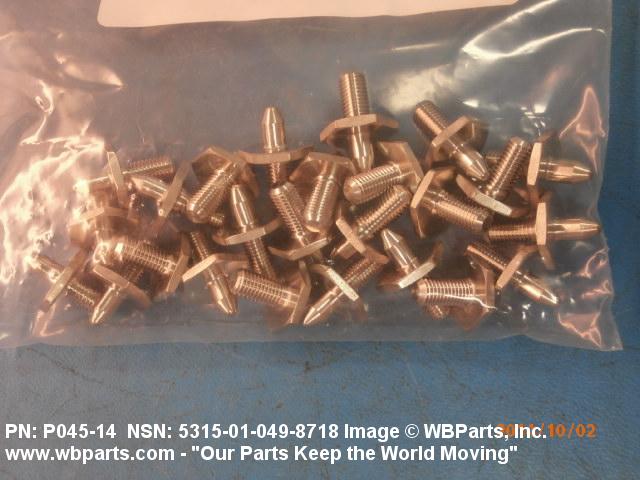

Drawings & Photos | NSN 5315-01-049-8718

Part Number	Request Date	QTY	Origin
5315-01-049-8718	2024-02-57	97	DIBBS
5315-01-049-8718	2019-08-219	52	DIBBS
P04514	2019-07-189	50	United States
5315-01-049-8718	2019-01-30	52	DIBBS
5315-01-049-8718	2019-01-18	1	US
5315-01-049-8718	2018-07-191	60	United States
5315-01-049-8718	2018-02-45	30	US
5315-01-049-8718	2018-02-37	15	United States
P04514	2017-11-334	14	Israel
5315-01-049-8718	2017-11-334	14	Israel
5315-01-049-8718	2017-11-311	15	Israel
5315-01-049-8718	2017-09-256	6	US
P04514	2017-08-221	4	US
5315-01-049-8718	2017-05-128	25	DIBBS
5315-01-049-8718	2017-04-120	25	DIBBS
5315-01-049-8718	2017-01-05	50	United States
5315-01-049-8718	2016-05-130	50	United States
5315-01-049-8718	2014-12-349	40	United States
5315-01-049-8718	2014-12-345	40	United States
5315-01-049-8718	2014-09-254	25	United States
5315-01-049-8718	2014-09-254	50	United States
5315-01-049-8718	2014-09-254	100	United States
5315-01-049-8718	2014-09-254	250	United States
5315-01-049-8718	2014-04-98	64	DIBBS
5315-01-049-8718	2013-05-140	122	DIBBS
5315-01-049-8718	2013-05-122	2	United States
5315-01-049-8718	2010-10-299	136	DIBBS
5315-01-049-8718	2010-08-231	160	DIBBS
5315-01-049-8718	2010-08-228	59	DIBBS
5315-01-049-8718	2009-09-244	272	DIBBS
5315-01-049-8718	2008-11-316	301	DIBBS

Cross Reference | NSN 5315-01-049-8718

Part Number	Cage Code	Manufacturer
P045-14	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-049-8718

Compare

Related Products | NSN 5315-01-049-8718

5315-01-049-9067, 5315-01-049-9413, 5315-01-049-9414, 5315-01-049-9439, 5315-01-049-9446

Technical Data | NSN 5315-01-049-8718

Characteristic	Specifications
MATERIAL	STEEL COMP 302 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7720 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	J161 SHOULDER

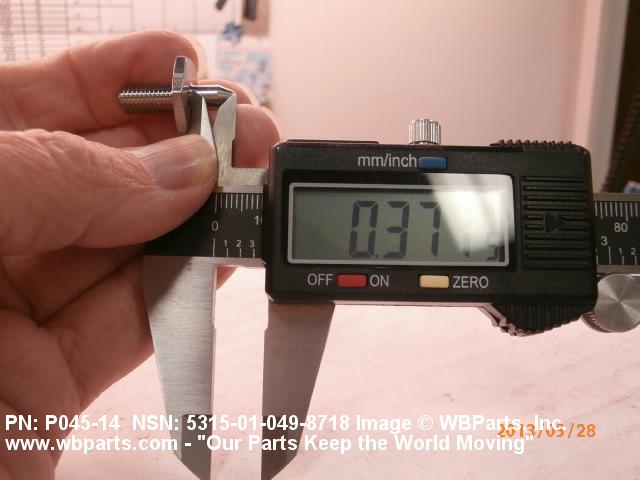

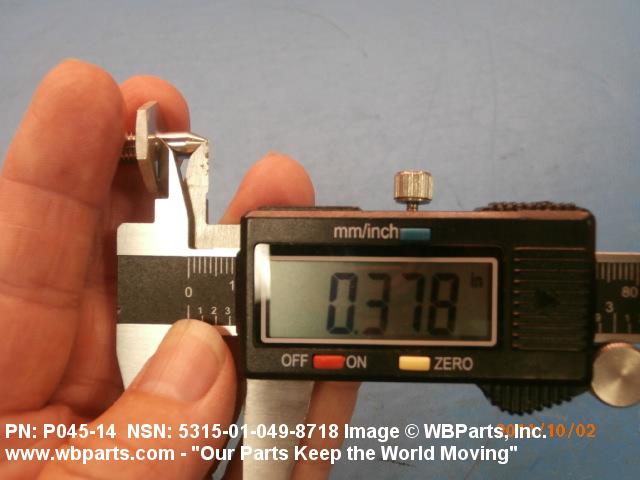

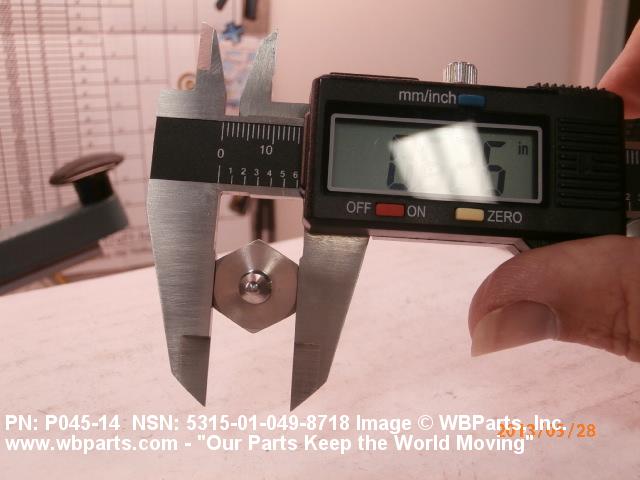

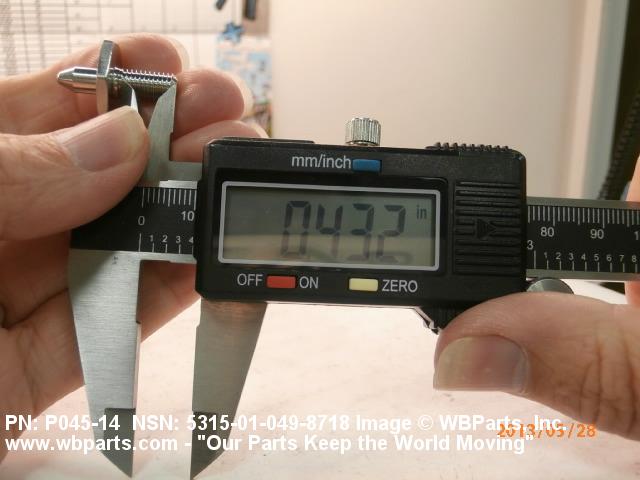

SHANK LENGTH	0.370 INCHES NOMINAL

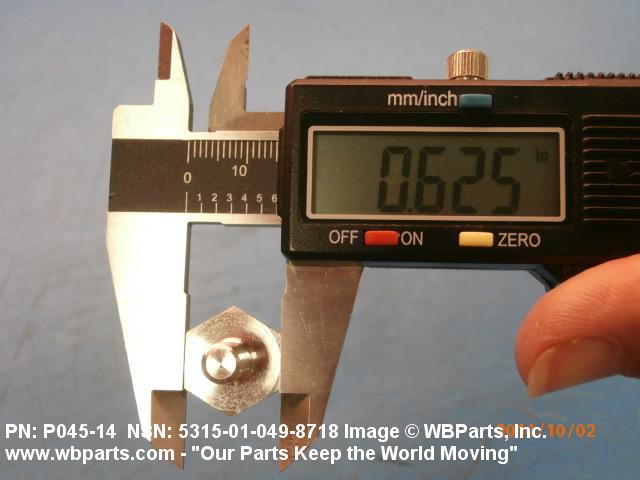

SHOULDER WIDTH ACROSS FLATS	0.625 INCHES NOMINAL

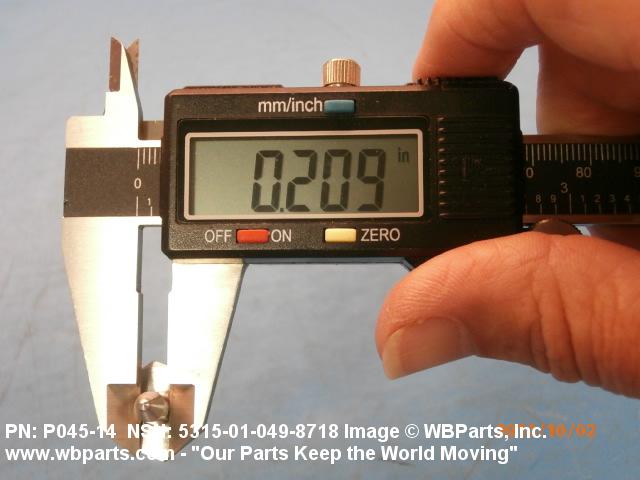

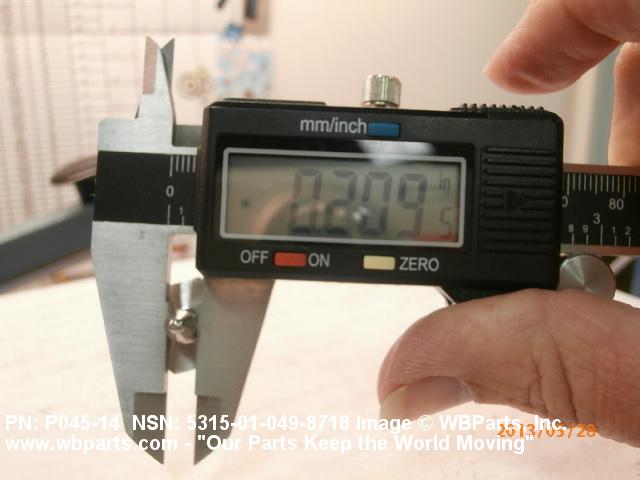

SHANK DIAMETER	0.209 INCHES MINIMUM AND 0.210 INCHES MAXIMUM

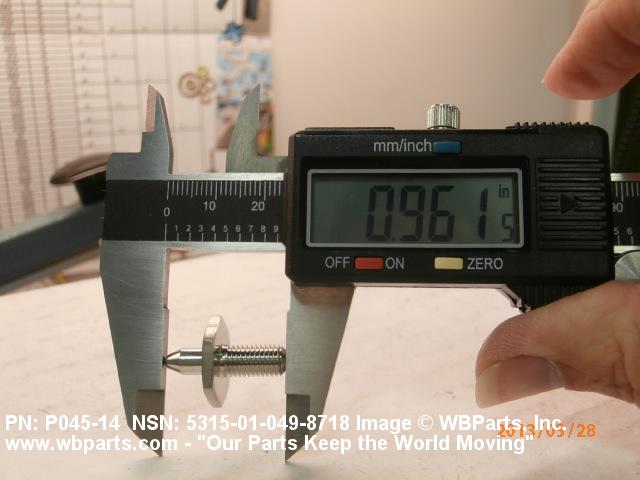

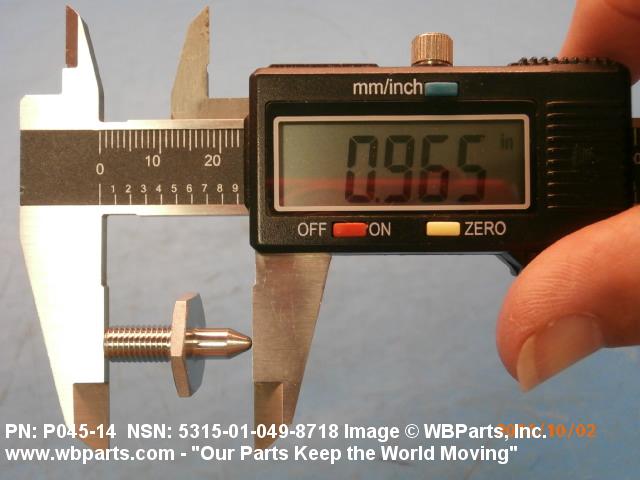

OVERALL LENGTH	0.960 INCHES NOMINAL
SECOND SHANK DIAMETER	0.209 INCHES MINIMUM AND 0.210 INCHES MAXIMUM

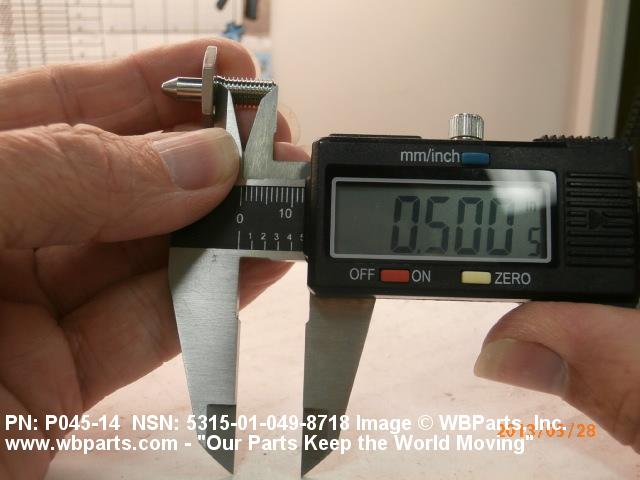

SECOND SHANK LENGTH	0.500 INCHES NOMINAL
FIRST END STYLE	1 CHAMFERED
FIRST END TAPER LENGTH	0.050 INCHES NOMINAL
FIRST END TAPER ANGLE	45.0 DEGREES NOMINAL
SECOND END RELATIONSHIP WITH FIRST END	NOT IDENTICAL
SECOND END STYLE	5 ROUND
SECOND END OUTER RADIUS	0.060 INCHES NOMINAL
FIRST END LOCATION	THREADED END
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

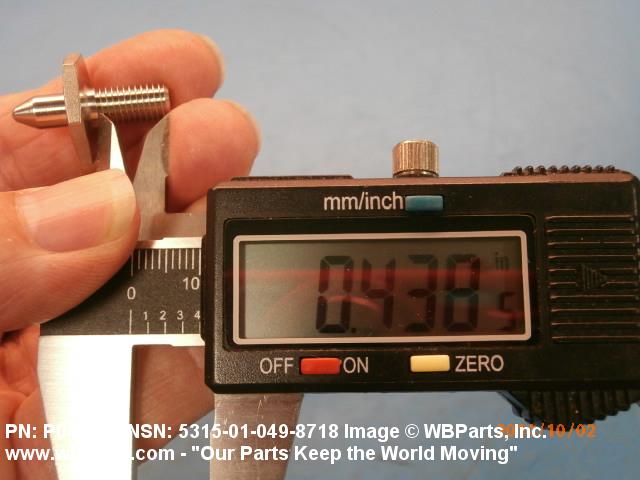

THREAD LENGTH	0.440 INCHES NOMINAL
