Product Details | HEADLESS STRAIGHT PIN

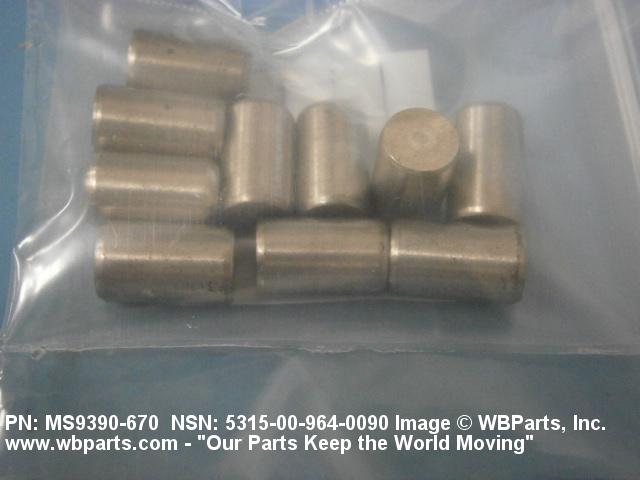

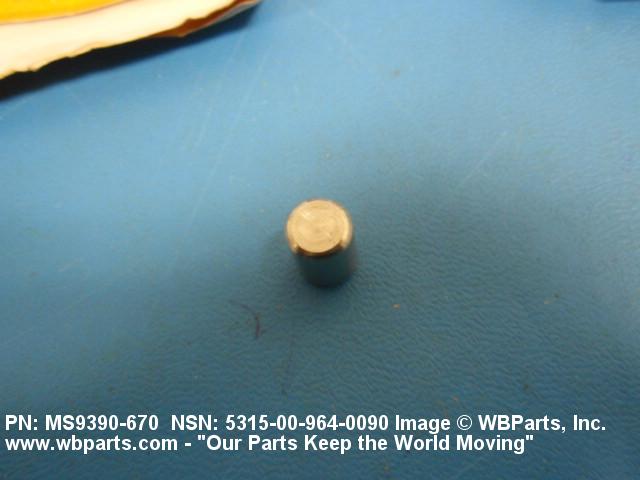

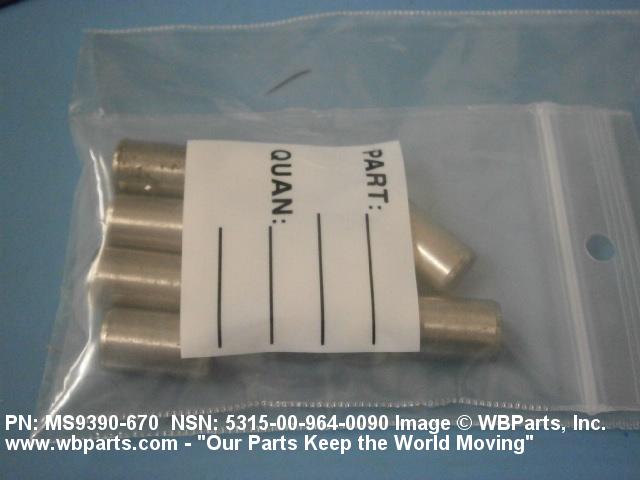

5315-00-964-0090 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.

Part Alternates: MS939067, MS9390-67, MS9390670, MS9390-670, 10122834 , 5315-00-964-0090, 00-964-0090, 5315009640090, 009640090

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-964-0090

Drawings & Photos | NSN 5315-00-964-0090


Demand History | NSN 5315-00-964-0090

Part Number Request Date QTY Origin
5315-00-964-0090 2022-09-264 89 DIBBS
5315-00-964-0090 2022-03-75 89 DIBBS
5315-00-964-0090 2020-12-342 10 US
5315-00-964-0090 2014-08-219 121 DIBBS
5315-00-964-0090 2014-07-208 121 DIBBS
5315-00-964-0090 2014-03-69 121 DIBBS
5315-00-964-0090 2014-02-54 121 DIBBS
5315-00-964-0090 2012-01-11 20 United States
MS9390670 2011-12-364 4 United States
MS9390670 2009-06-167 150 United States
MS939067 2009-05-128 140 US

Cross Reference | NSN 5315-00-964-0090

Part Number Cage Code Manufacturer
MS9390-67 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS9390-670 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS9390-670 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS9390-670 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-964-0090

Technical Data | NSN 5315-00-964-0090

Characteristic Specifications
MATERIAL IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
FIRST END STYLE 4 RADIUS
FIRST END CORNER RADIUS 0.090 INCHES MINIMUM AND 0.110 INCHES MAXIMUM
SECOND END RELATIONSHIP WITH FIRST END IDENTICAL
SURFACE FINISH 32.0 MICROINCHES OUTSIDE DIAMETER
PIN OVERALL LENGTH 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM
PIN OVERALL DIAMETER 0.37475 INCHES MINIMUM AND 0.37525 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5315-00-964-0090

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
