NSN 5315-00-961-6900 644343, 00-961-6900, 009616900
Product Details | HEADED SHOULDER PIN
5315-00-961-6900 A cylindrically-shaped headed item, having a solid shank in steps of two or more different diameters under and in addition to the head. Excludes PIN, ECCENTRIC.
Part Alternates: 644343, 5315-00-961-6900, 00-961-6900, 5315009616900, 009616900
Hardware and Abrasives | Nails, Machine Keys, and Pins
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1962 | 00-961-6900 | 16563 ( PIN, SHOULDER, HEADED ) |
Cross Reference | NSN 5315-00-961-6900
Part Number | Cage Code | Manufacturer |
---|---|---|
644343 | 99551 | GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-961-6900
Related Products | NSN 5315-00-961-6900
Technical Data | NSN 5315-00-961-6900
Characteristic | Specifications |
---|---|
MATERIAL | STEEL CORROSION RESISTING OVERALL |
HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |
STYLE DESIGNATOR | H149 SHOULDER |
UNDER HEAD LENGTH | 0.330 INCHES NOMINAL |
FIRST STEP DIAMETER | 0.1245 INCHES MINIMUM AND 0.1250 INCHES MAXIMUM |
FIRST STEP LENGTH | 0.252 INCHES NOMINAL |
SECOND STEP DIAMETER | 0.1223 INCHES MINIMUM AND 0.1233 INCHES MAXIMUM |
SECOND STEP LENGTH | 0.078 INCHES NOMINAL |
FIRST END STYLE | 9 SQUARE |

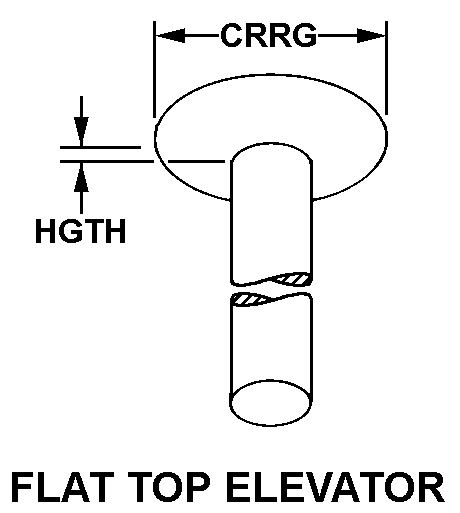

HEAD STYLE | 21 FLAT TOP ELEVATOR |
HEIGHT | 0.025 INCHES MINIMUM AND 0.030 INCHES MAXIMUM |
MANUFACTURERS CODE | 99551 |
DESIGN CONTROL REFERENCE | 644343 |
