NSN 5315-01-623-7719 17337941, 17-3-3794-1 , 01-623-7719
Product Details | HEADED SHOULDER PIN
5315-01-623-7719 A cylindrically-shaped headed item, having a solid shank in steps of two or more different diameters under and in addition to the head. Excludes PIN, ECCENTRIC.
Part Alternates: 17337941, 17-3-3794-1 , 5315-01-623-7719, 01-623-7719, 5315016237719, 016237719
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2013336 | 01-623-7719 | 16563 ( PIN, SHOULDER, HEADED ) |

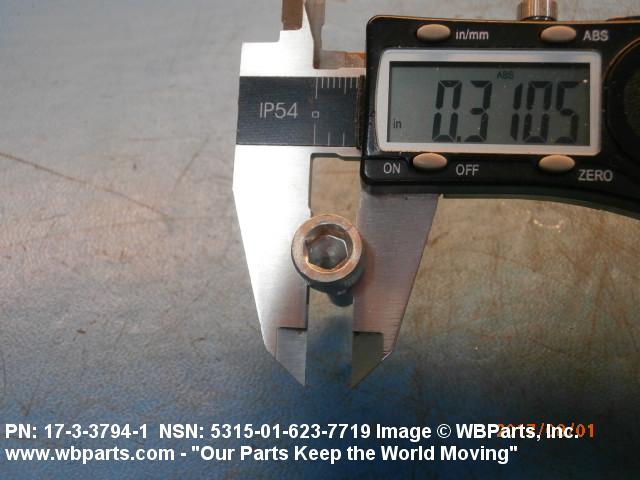

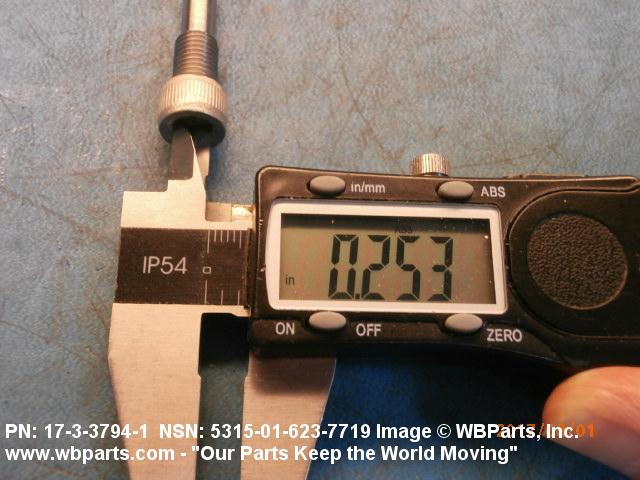

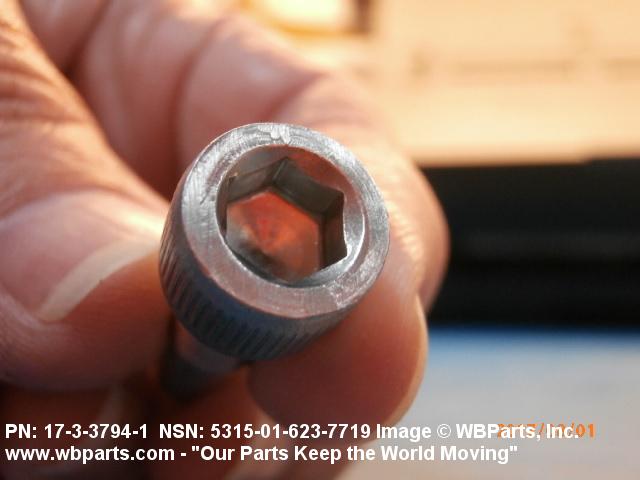

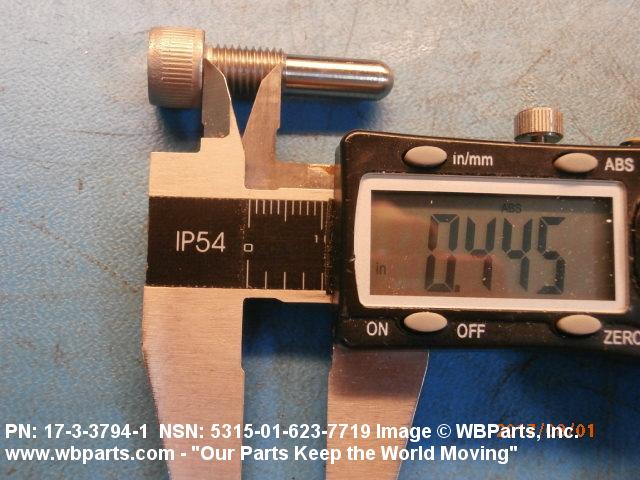

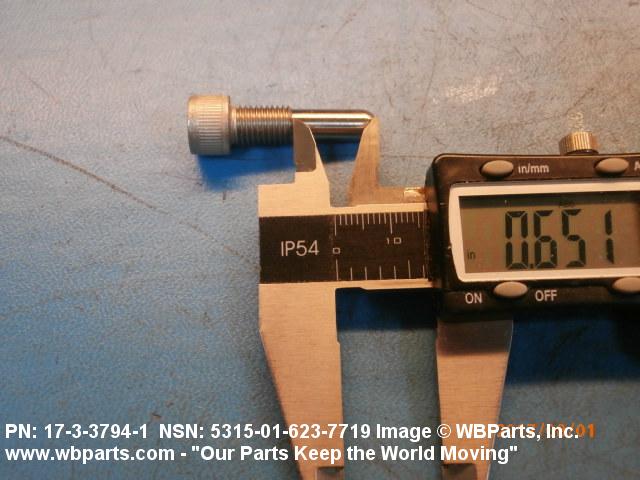

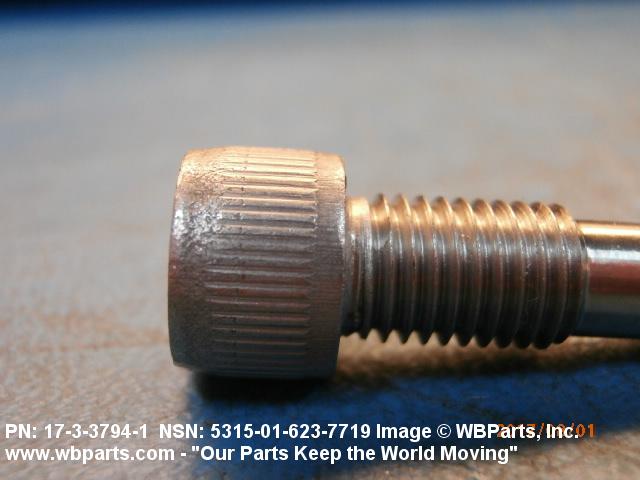

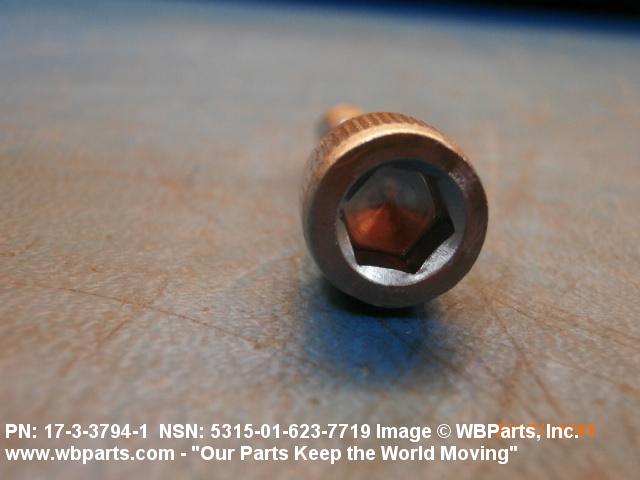

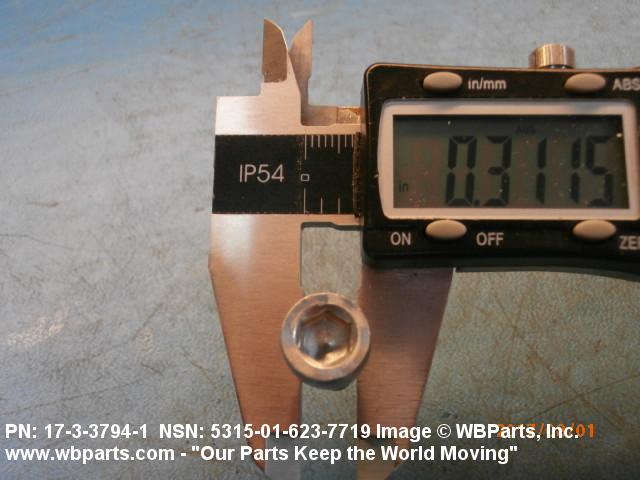

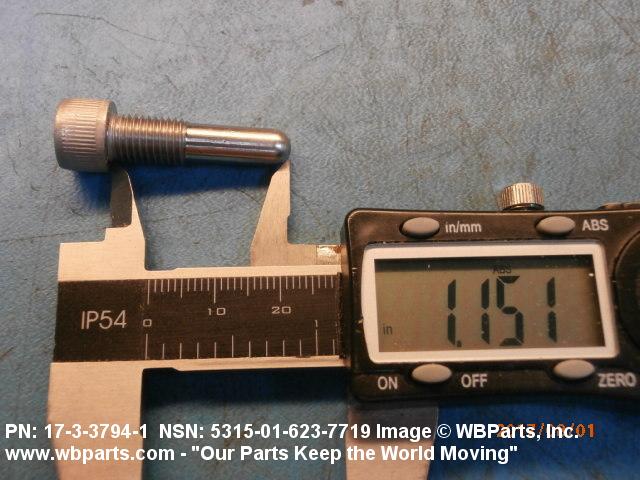

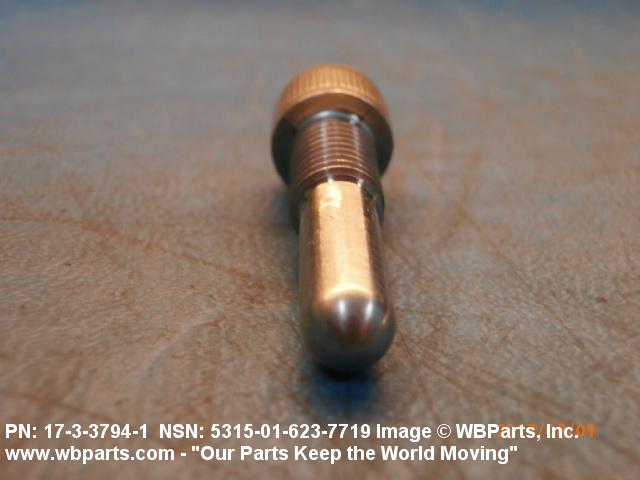

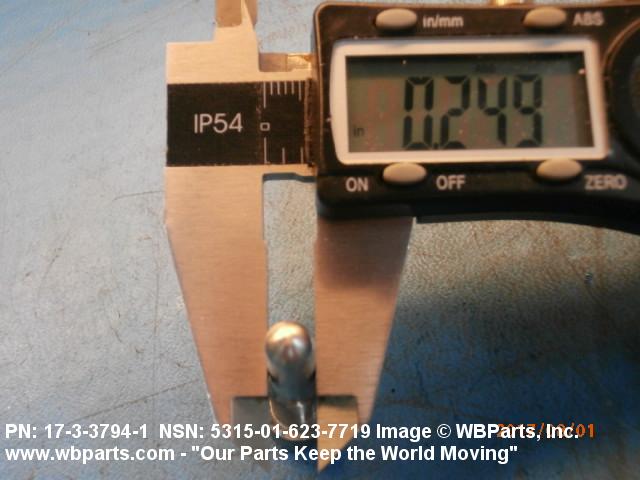

Drawings & Photos | NSN 5315-01-623-7719
Demand History | NSN 5315-01-623-7719
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-623-7719 | 2022-07-192 | 18 | United States |
| 5315-01-623-7719 | 2017-12-346 | 80 | DIBBS |
| 5315-01-623-7719 | 2017-07-193 | 24 | United States |
| 5315-01-623-7719 | 2017-05-136 | 144 | DIBBS |
| 5315-01-623-7719 | 2016-09-252 | 24 | DIBBS |
Cross Reference | NSN 5315-01-623-7719
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17-3-3794-1 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
