Product Details | HEADLESS SHOULDER PIN
5315-00-947-3950 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 63A81B102, 5315-00-947-3950, 00-947-3950, 5315009473950, 009473950
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 MAR 1966 | 00-947-3950 | 16749 ( PIN, SHOULDER, HEADLESS ) |
Drawings & Photos | NSN 5315-00-947-3950
Cross Reference | NSN 5315-00-947-3950
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 63A81B102 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-947-3950
Related Products | NSN 5315-00-947-3950
Technical Data | NSN 5315-00-947-3950
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8620 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-8690 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 58.0 ROCKWELL C MINIMUM AND 61.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | J163 SHOULDER |
| SHANK LENGTH | 1.562 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.6226 INCHES MINIMUM AND 0.6234 INCHES MAXIMUM |
| SHANK DIAMETER | 0.4966 INCHES MINIMUM AND 0.4984 INCHES MAXIMUM |
| OVERALL LENGTH | 2.562 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.060 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |

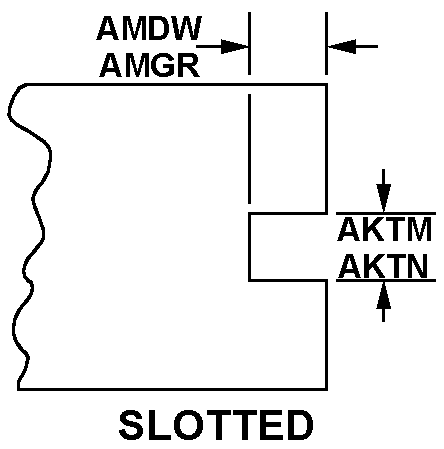

| SECOND END STYLE | 8 SLOTTED |
| SECOND END SLOT DEPTH | 0.133 INCHES MINIMUM AND 0.168 INCHES MAXIMUM |
| SECOND END SLOT WIDTH | 0.081 INCHES MINIMUM AND 0.094 INCHES MAXIMUM |
| FIRST END LOCATION | THREADED END |
| INTERNAL DRIVE STYLE | 14 SLOT |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.562 INCHES MINIMUM |
| SURFACE FINISH | 63.0 MICROINCHES SHOULDER END |
| FEATURES PROVIDED | CASEHARDENED |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 63A81B102 |
