NSN 5315-00-889-2607 MS16562261, MS16562-261, NAS561C1028
Product Details | SPRING PIN
5315-00-889-2607 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS16562261, MS16562-261, NAS561C1028, NAS561C10-28, 42P117009280, 42P11700-9280, 7076E54PC49 , 752B698P1, 790623121750, 79-062-312-1750, 5315-00-889-2607, 00-889-2607, 5315008892607, 008892607
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-889-2607 | 02389 ( PIN, SPRING ) |

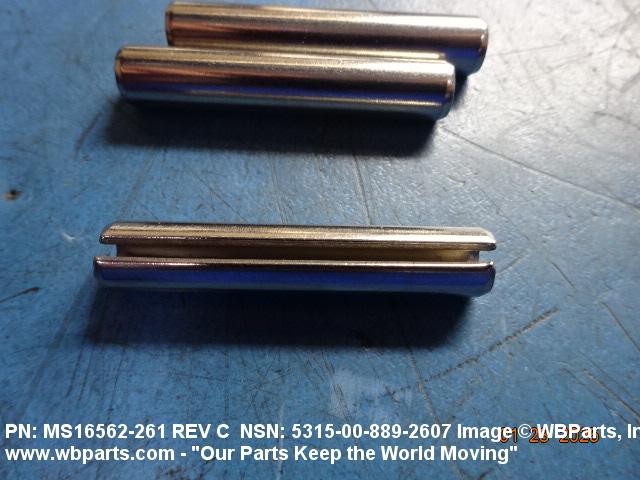

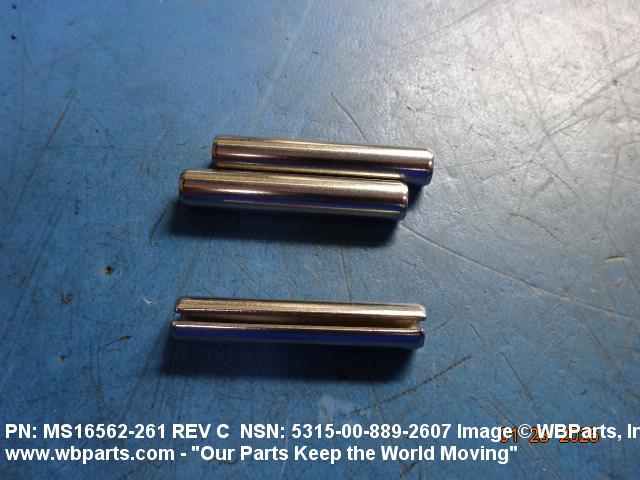

Drawings & Photos | NSN 5315-00-889-2607
Demand History | NSN 5315-00-889-2607
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-889-2607 | 2024-10-282 | 3 | France |
| 5315-00-889-2607 | 2020-06-176 | 20 | India |
| 5315-00-889-2607 | 2020-06-176 | 20 | India |
| 5315-00-889-2607 | 2020-06-169 | 20 | United States |
| 5315-00-889-2607 | 2020-06-166 | 20 | Singapore |
| 5315-00-889-2607 | 2020-06-164 | 20 | Singapore |
| 5315-00-889-2607 | 2018-05-122 | 1923 | DIBBS |
| 5315-00-889-2607 | 2016-12-353 | 334 | DIBBS |
| 5315-00-889-2607 | 2016-08-230 | 2191 | DIBBS |
| MS16562-261 | 2015-07-182 | 10 | UK |
| 5315-00-889-2607 | 2014-08-229 | 2381 | DIBBS |
| 5315-00-889-2607 | 2009-05-151 | 2277 | DIBBS |
| 5315-00-889-2607 | 2009-05-125 | 2471 | DIBBS |
| 5315-00-889-2607 | 2009-02-54 | 770 | DIBBS |
Cross Reference | NSN 5315-00-889-2607
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3887002530 | B0897 | FN HERSTAL SA |
| 42P11700-9280 | 94135 | NAVAL ORDNANCE STANDARDS |
| 79-062-312-1750 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 79-062-312-1750 | 72962 | HARVARD INDUSTRIES INC |
| MS16562-261 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16562-261 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS561C10-28 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-889-2607
Related Products | NSN 5315-00-889-2607
Technical Data | NSN 5315-00-889-2607
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OR STEEL COMP 420 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 43.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | K174 SLOTTED |

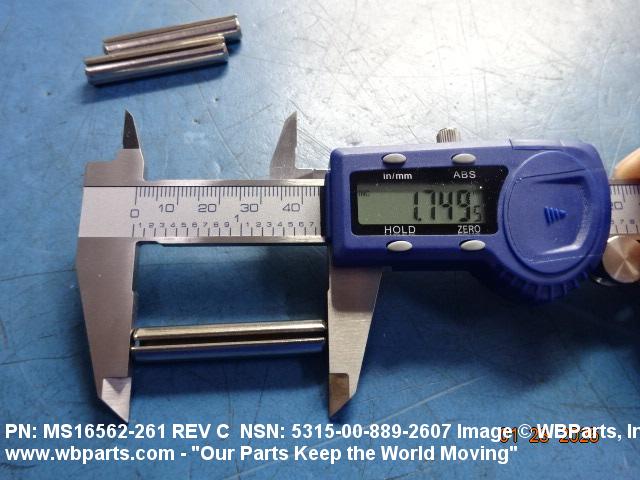

| OVERALL LENGTH | 1.730 INCHES MINIMUM AND 1.770 INCHES MAXIMUM |

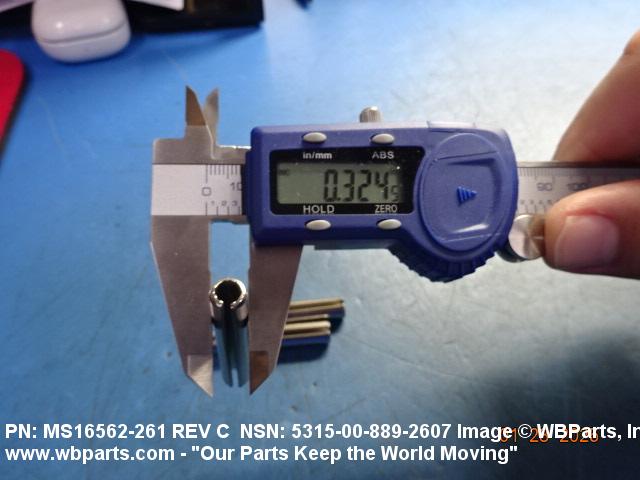

| DIAMETER | 0.321 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |

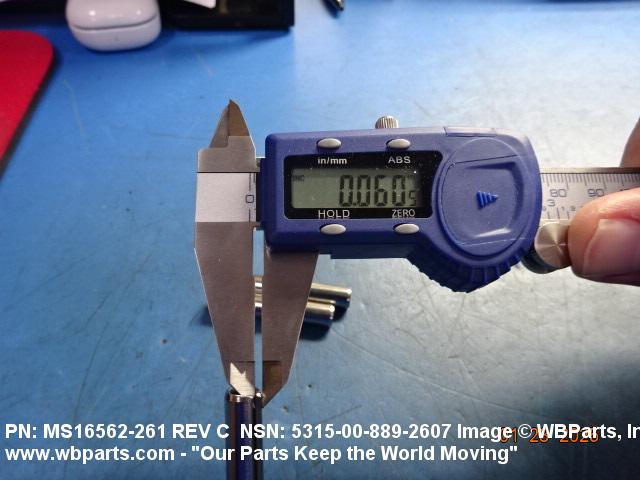

| MATERIAL THICKNESS | 0.062 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-00-889-2607
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5315-00-889-2607
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X6 | |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
