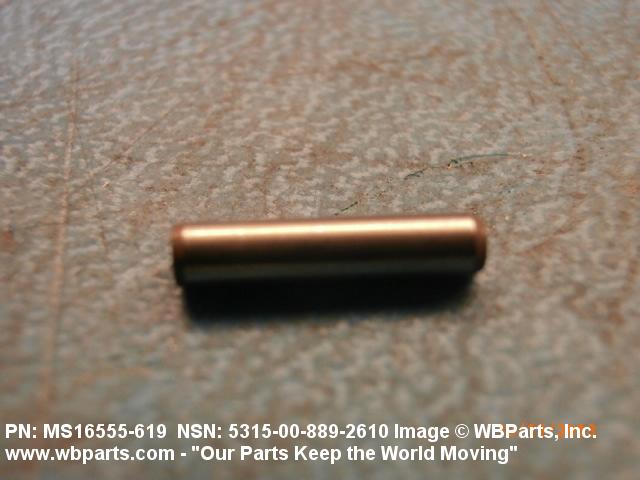

5315-00-889-2610 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.

Part Alternates: MS16555619, MS16555-619, 010062-619, 946339-619, 5315-00-889-2610, 00-889-2610, 5315008892610, 010062619, 946339619, 008892610

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-889-2610

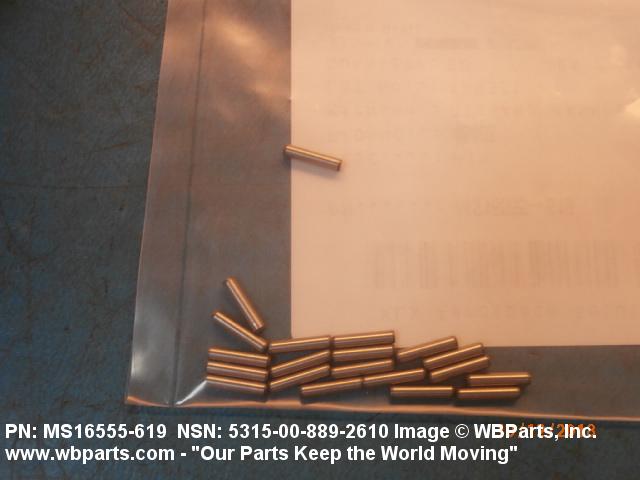

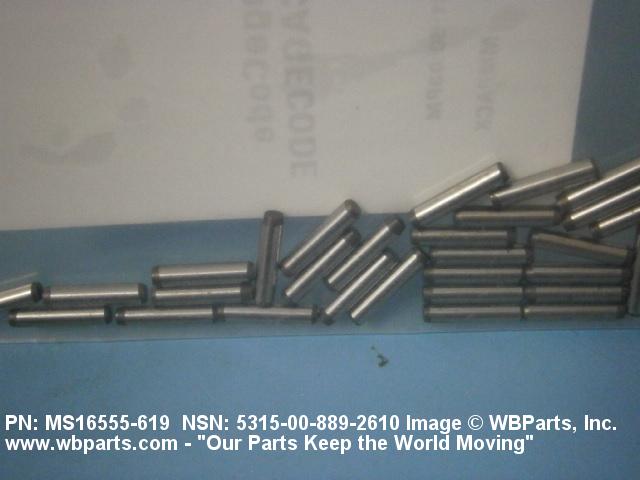

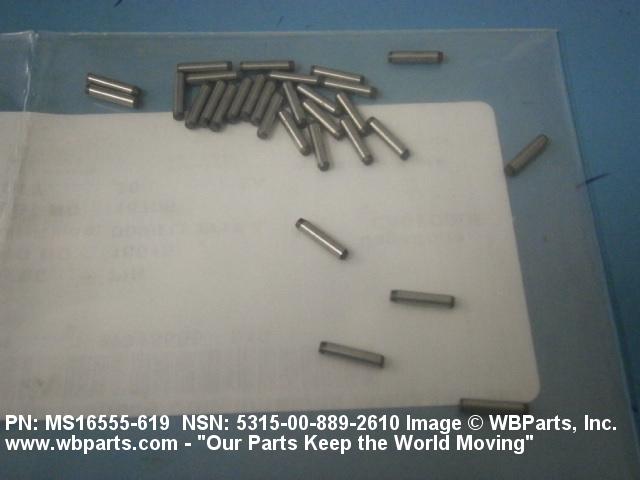

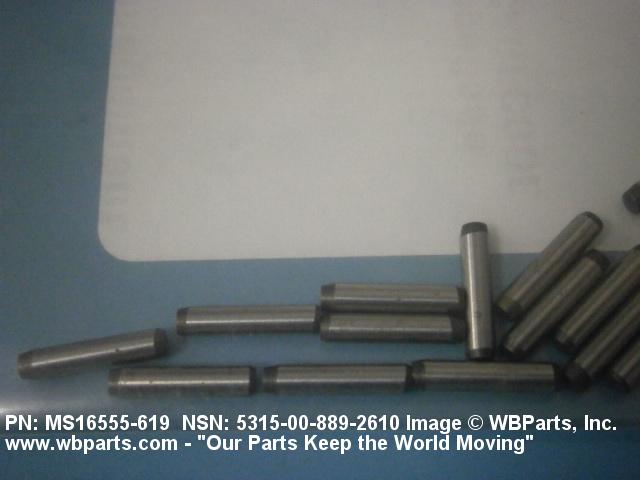

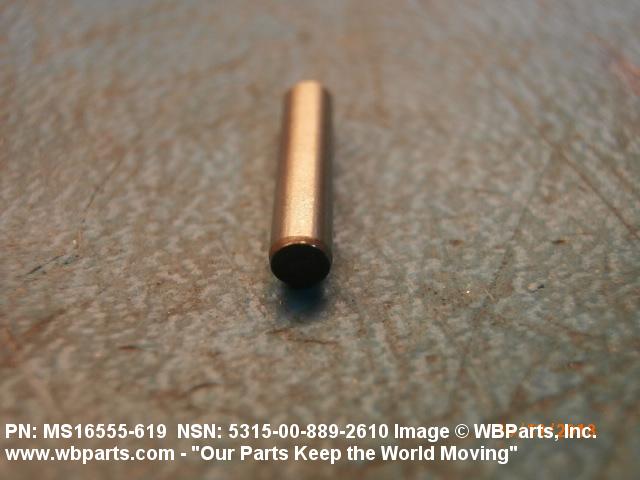

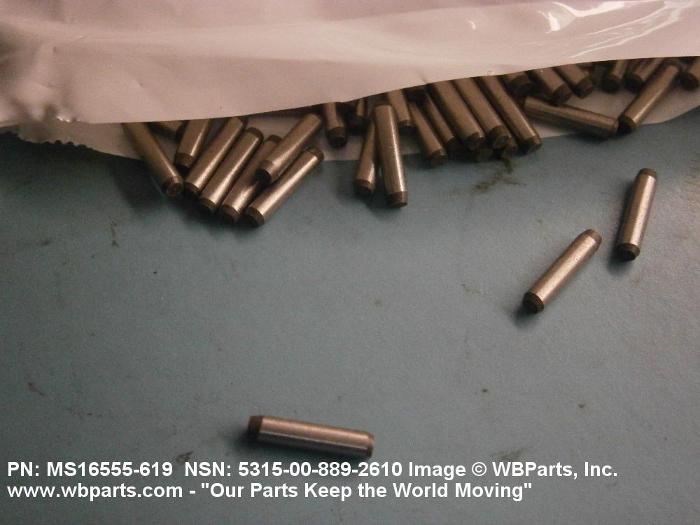

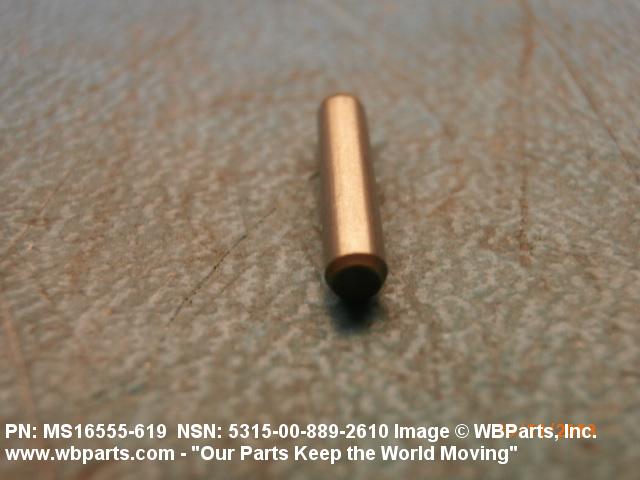

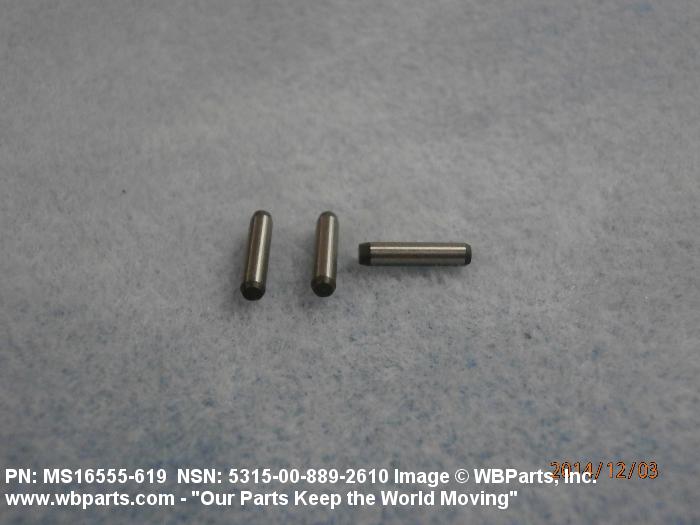

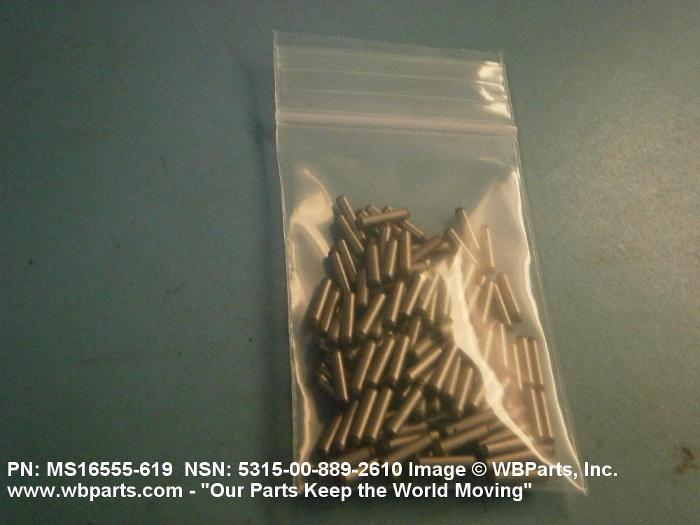

Drawings & Photos | NSN 5315-00-889-2610


Demand History | NSN 5315-00-889-2610

Part Number Request Date QTY Origin
MS16555619 2022-06-181 50 United States
5315-00-889-2610 2021-12-353 770 DIBBS
MS16555619 2020-09-258 50 South Korea
MS16555619 2018-10-282 20 United States
MS16555619 2018-10-277 30 United States
MS16555619 2017-05-136 15 US
5315-00-889-2610 2016-12-343 770 DIBBS
MS16555619 2016-08-215 30 United States
MS16555619 2015-05-140 30 United States
MS16555619 2014-06-153 30 United States
5315-00-889-2610 2014-03-62 1600 DIBBS
MS16555619 2014-01-13 100 US
5315-00-889-2610 2013-11-326 556 DIBBS
5315-00-889-2610 2013-11-311 556 DIBBS
MS16555619 2013-04-91 40 United States
MS16555619 2012-06-167 90 United States
5315-00-889-2610 2012-03-82 30 United States
MS16555619 2012-02-38 10 US
MS16555619 2012-02-38 500 US
MS16555619 2010-04-120 280 United States
MS16555619 2010-02-42 80 US

Cross Reference | NSN 5315-00-889-2610

Part Number Cage Code Manufacturer
010062-619 81413 BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
946339-619 06481 NORTHROP GRUMMAN SYSTEMS CORPORATION
MS16555-619 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-889-2610

Technical Data | NSN 5315-00-889-2610

Characteristic Specifications
MATERIAL STEEL COMP 410 OR STEEL COMP 416 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION ASTM A493 ASSN STD 1ST MATERIAL RESPONSE OR ASTMA582 ASSN STD 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
SHEAR STRENGTH 1000 DOUBLE POUND
FIRST END STYLE 1 CHAMFERED
FIRST END TAPER LENGTH 0.087 INCHES NOMINAL
FIRST END TAPER ANGLE 4.0 DEGREES MINIMUM AND 16.0 DEGREES MAXIMUM
SECOND END RELATIONSHIP WITH FIRST END NOT IDENTICAL
SECOND END STYLE 9 SQUARE
SURFACE FINISH 16.0 MICROINCHES OUTSIDE DIAMETER

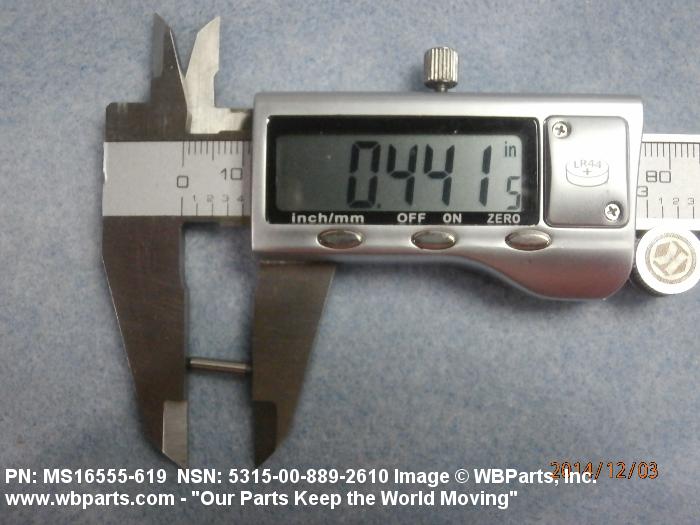

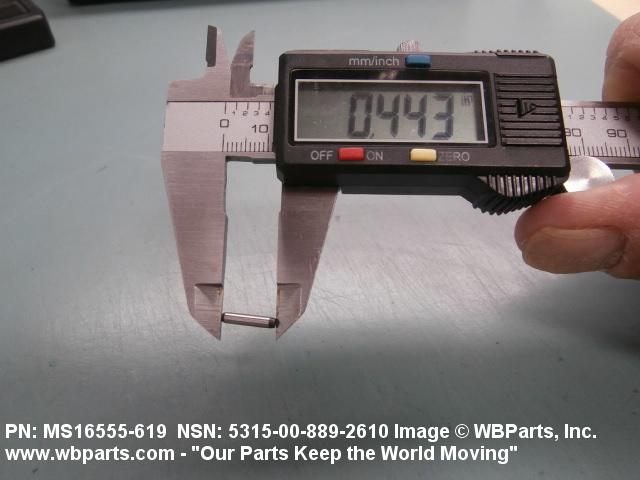

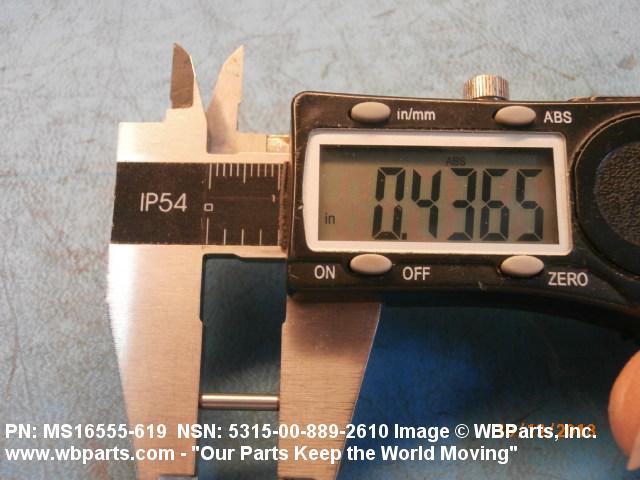

PIN OVERALL LENGTH 0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM

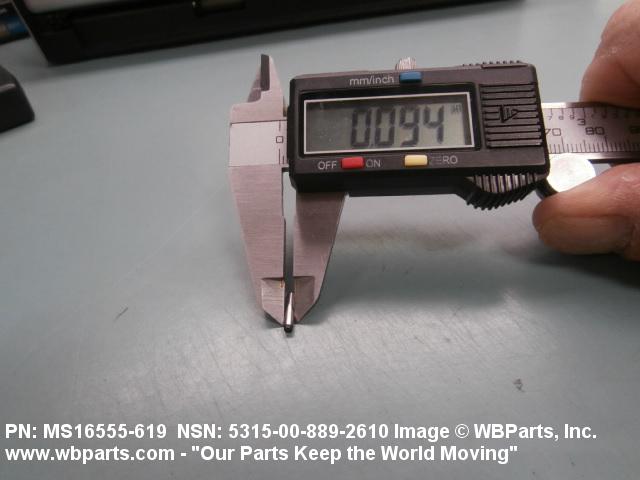

PIN OVERALL DIAMETER 0.0939 INCHES MINIMUM AND 0.0941 INCHES MAXIMUM
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS16555-619
