NSN 5315-00-869-3193 265425, 387881, 00-869-3193
Product Details | HEADED GROOVED PIN
5315-00-869-3193 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Part Alternates: 265425, 387881, 5315-00-869-3193, 00-869-3193, 5315008693193, 008693193
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 OCT 1967 | 00-869-3193 | 02382 ( PIN, GROOVED, HEADED ) |

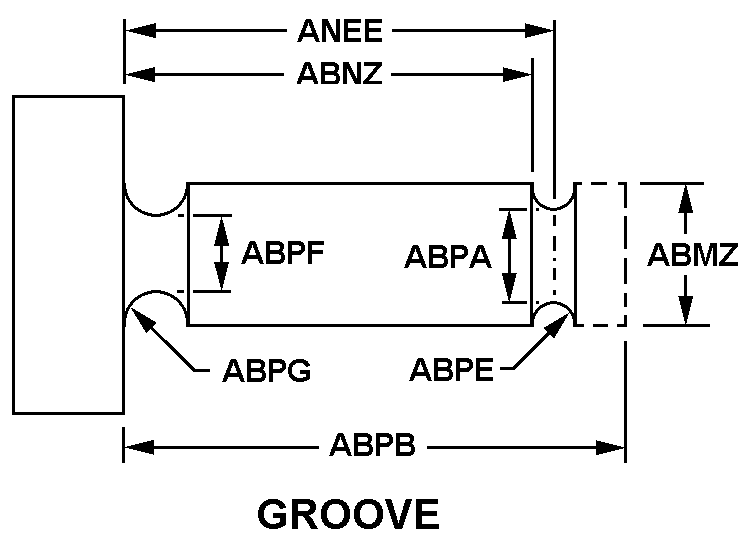

Drawings & Photos | NSN 5315-00-869-3193
Demand History | NSN 5315-00-869-3193
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-869-3193 | 2017-08-226 | 32 | DIBBS |
| 5315-00-869-3193 | 2017-06-165 | 32 | DIBBS |
| 5315-00-869-3193 | 2009-09-258 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-869-3193
Related Products | NSN 5315-00-869-3193
Technical Data | NSN 5315-00-869-3193
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | E88 GROOVE |
| DIAMETER | 0.750 INCHES NOMINAL |
| EFFECTIVE LENGTH | 1.000 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.500 INCHES NOMINAL |
| UNDER HEAD LENGTH | 1.625 INCHES NOMINAL |
| UNDERCUT RADIUS | 0.219 INCHES NOMINAL |
| SECOND UNDERCUT DIAMETER | 0.710 INCHES NOMINAL |
| SECOND UNDERCUT RADIUS | 0.032 INCHES NOMINAL |
| GRIP LENGTH | 1.250 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.040 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 15.0 DEGREES NOMINAL |
| HEAD STYLE | 16 FLAT |
| PIN HEAD DIAMETER | 0.980 INCHES NOMINAL |
| HEIGHT | 0.235 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-00-869-3193
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
