NSN 5315-00-840-0907 MS16562214, MS16562-214, MS171497

Product Details | SPRING PIN

5315-00-840-0907 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.

Part Alternates: MS16562214, MS16562-214, MS171497, NAS561C39, NAS561C3-9, BA9820336, BA98203-36, MILP10971, MIL-P-10971, MILP10971TYPE1C0MP0SITI0NB, PS0940562CRPA022, PS094-0562CRPA022, 049536DRAWING0495, 0495-36DRAWING0495, 3110373000, 311-0373-000, 3110387000, 311-0387-000, 31S0940562, 540071-033, 56862523, 568625-23, 790220940562, 79-022-094-0562, 790220940570, 5315-00-840-0907, 00-840-0907, 5315008400907, 008400907, 540071033

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-840-0907	02389 ( PIN, SPRING )

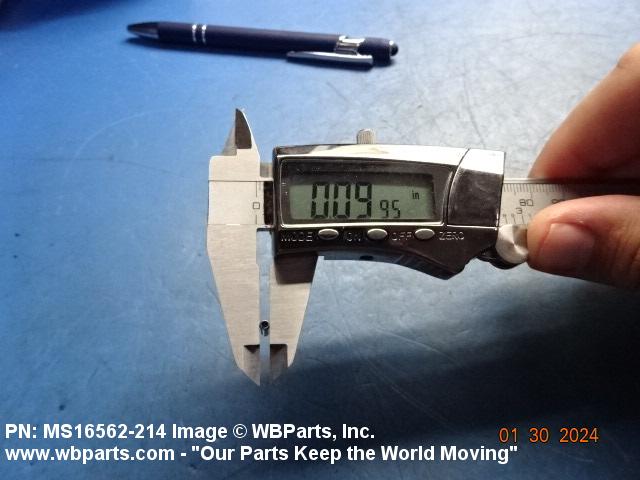

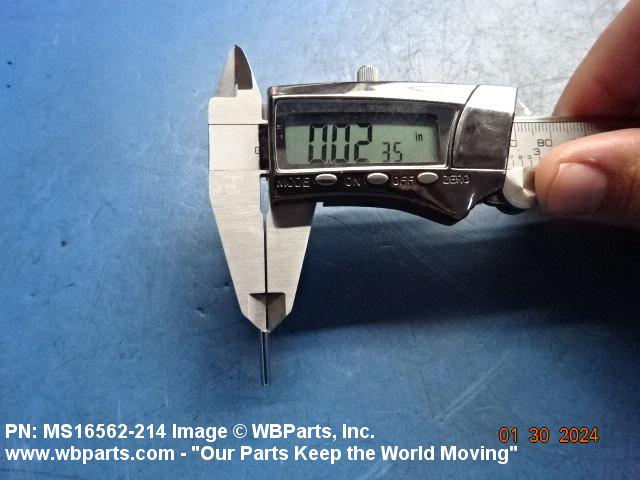

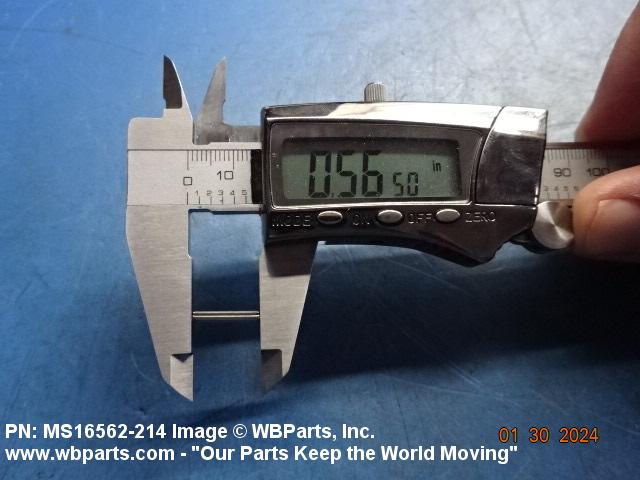

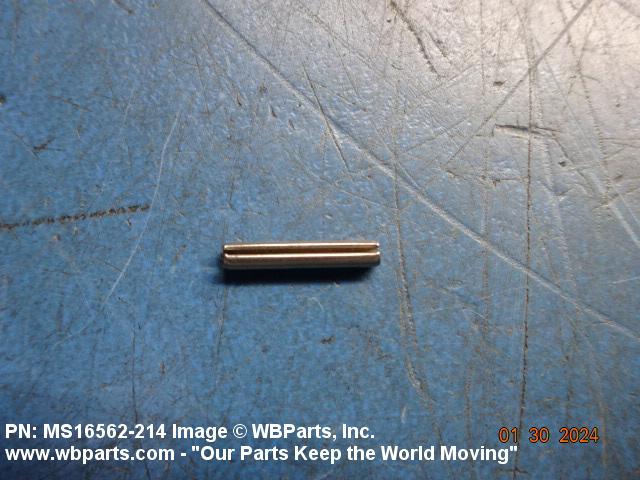

Drawings & Photos | NSN 5315-00-840-0907

Part Number	Request Date	QTY	Origin
NAS561C39	2024-02-46	5	Malta
MS16562214	2024-01-08	350	Korea
MS171497	2019-05-133	20	Japan
5315-00-840-0907	2017-11-332	331	DIBBS
5315-00-840-0907	2017-11-323	331	DIBBS
MS171497	2016-04-112	5	India
MS16562214	2015-04-97	5000	US
MS171497	2014-05-122	17	United States
5315-00-840-0907	2014-04-119	231	DIBBS
MS171497	2013-10-280	2	India
MS16562214	2011-08-237	1000	Germany
NAS561C39	2011-08-237	1000	Germany
MS16562214	2011-08-237	1000	United States
NAS561C39	2011-08-237	1000	United States
MILP10971	2011-03-73	10	United States
MS16562214	2010-06-172	31000	US
MS171497	2010-06-172	31000	US
5315-00-840-0907	2010-01-06	119	DIBBS
MILP10971	2009-09-259	200	US
MILP10971	2009-07-187	2	MX

Cross Reference | NSN 5315-00-840-0907

Part Number	Cage Code	Manufacturer
0495-36DRAWING0495	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
311-0373-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
311-0387-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
31S0940562	28199	L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL
5315008400907	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
540071-033	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.
568625-23	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
79-022-094-0562	22599	AMERACE CORP ESNA DIV
79-022-094-0562	72962	HARVARD INDUSTRIES INC
790220940570	72962	HARVARD INDUSTRIES INC
BA98203-36	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MIL-P-10971	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MILP10971TYPE1C0MP0SITI0NB	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS16562-214	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16562-214	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS171497	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS171497	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS561C3-9	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
PS094-0562CRPA022	K1368	MINISTRY OF DEFENCE, DE&S DEFENCECLOTHING TEAM

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-840-0907

Compare

Related Products | NSN 5315-00-840-0907

5315-00-840-1224, 5315-00-840-1228, 5315-00-840-1830, 5315-00-840-1831, 5315-00-840-1923

Technical Data | NSN 5315-00-840-0907

Characteristic	Specifications
MATERIAL	STEEL COMP 410 OR STEEL COMP 420 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	43.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM OVERALL
SHEAR STRENGTH	1000 DOUBLE POUND
STYLE DESIGNATOR	K174 SLOTTED
OVERALL LENGTH	0.547 INCHES MINIMUM AND 0.577 INCHES MAXIMUM
DIAMETER	0.099 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
MATERIAL THICKNESS	0.022 INCHES NOMINAL
SURFACE FINISH	80.0 MICROINCHES OUTSIDE DIAMETER

Restrictions/Controls & Freight Information | NSN 5315-00-840-0907

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
