NSN 5315-00-680-3163 W7955-1.250D-16, W79551250D16, 00-680-3163
Product Details | LOCK PIN
5315-00-680-3163 A fastening device formed from resilient wire stock into a shape resembling the letter "U", of which at least one of the prongs is straight for insertion into a hole; the other prong may have one or more curvatures along its length. It is designed to hold itself in place by its inherent spring action. See also CLIP, RETAINING and RING, RETAINING.
Part Alternates: W7955-1.250D-16, W79551250D16, 5315-00-680-3163, 00-680-3163, 5315006803163, 006803163
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-680-3163 | 02387 ( PIN, LOCK ) |

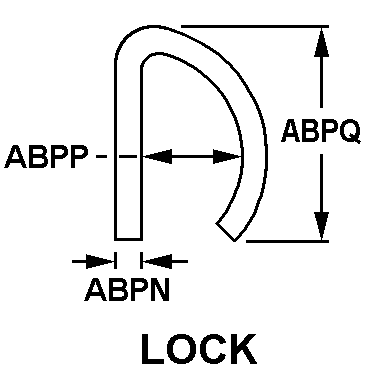

Drawings & Photos | NSN 5315-00-680-3163
