NSN 5315-00-614-3589 NAS5742, NAS574-2, 1220017001
Product Details | HEADLESS SHOULDER PIN
5315-00-614-3589 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: NAS5742, NAS574-2, 1220017001, 122-0017-001, 40334502, 4033450-2, 85010192, 8501019-2, 8908175, 5315-00-614-3589, 00-614-3589, 5315006143589, 006143589
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-614-3589 | 16749 ( PIN, SHOULDER, HEADLESS ) |

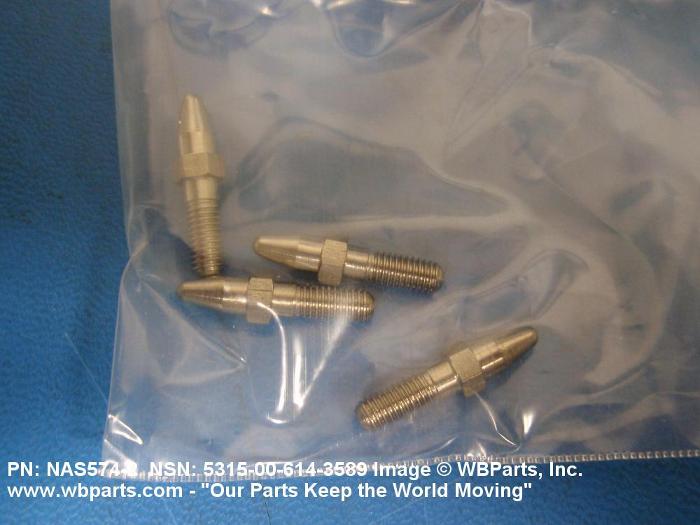

Drawings & Photos | NSN 5315-00-614-3589
Demand History | NSN 5315-00-614-3589
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS5742 | 2024-05-151 | 40 | TR |
| 5315-00-614-3589 | 2024-03-68 | 500 | US |
| 5315-00-614-3589 | 2023-02-41 | 60 | US |
| 5315-00-614-3589 | 2022-12-353 | 10 | United States |
| NAS5742 | 2022-10-299 | 96 | United States |
| 5315-00-614-3589 | 2022-09-248 | 118 | DIBBS |
| NAS5742 | 2022-01-11 | 96 | United States |
| NAS5742 | 2019-06-170 | 2 | United States |
| NAS5742 | 2019-06-155 | 2 | United States |
| NAS5742 | 2019-02-49 | 25 | United States |
| 5315-00-614-3589 | 2016-04-102 | 25 | United States |
| NAS5742 | 2014-07-184 | 16 | United States |
| NAS5742 | 2014-04-91 | 2 | United States |
| 5315-00-614-3589 | 2013-08-217 | 4 | US |
| NAS5742 | 2013-01-28 | 20 | United States |
| NAS5742 | 2012-02-53 | 240 | South Korea |
| NAS5742 | 2011-08-234 | 2 | US |
| 5315-00-614-3589 | 2011-04-102 | 10 | US |
| 5315-00-614-3589 | 2011-02-33 | 100 | US |
| 5315-00-614-3589 | 2010-08-223 | 50 | US |
| 5315-00-614-3589 | 2010-03-74 | 2 | US |
| NAS5742 | 2009-12-352 | 10 | United States |
| NAS5742 | 2009-10-285 | 300 | Australia |
| NAS5742 | 2009-07-191 | 25 | us |
| 5315-00-614-3589 | 2009-06-154 | 5 | US |
| NAS5742 | 2009-02-51 | 80 | United States |
| 40334502 | 2008-10-283 | 4 | United States |
Cross Reference | NSN 5315-00-614-3589
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 122-0017-001 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 4033450-2 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 8501019-2 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 8908175 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| NAS574-2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-614-3589
Related Products | NSN 5315-00-614-3589
Technical Data | NSN 5315-00-614-3589
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | J161 SHOULDER |
| SHANK LENGTH | 0.364 INCHES MINIMUM AND 0.384 INCHES MAXIMUM |
| SHOULDER WIDTH ACROSS FLATS | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| SHANK DIAMETER | 0.190 INCHES NOMINAL |
| OVERALL LENGTH | 1.000 INCHES MINIMUM AND 1.060 INCHES MAXIMUM |
| SECOND SHANK DIAMETER | 0.210 INCHES MINIMUM AND 0.215 INCHES MAXIMUM |
| SECOND SHANK LENGTH | 0.521 INCHES MINIMUM AND 0.541 INCHES MAXIMUM |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.047 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 5 ROUND |
| SECOND END OUTER RADIUS | 0.063 INCHES NOMINAL |
| FIRST END LOCATION | LONG END |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.339 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS574 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5315-00-614-3589
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-614-3589
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
