NSN 5315-00-608-5116 7269143, 7269145, 00-608-5116
Product Details | HEADED SHOULDER PIN

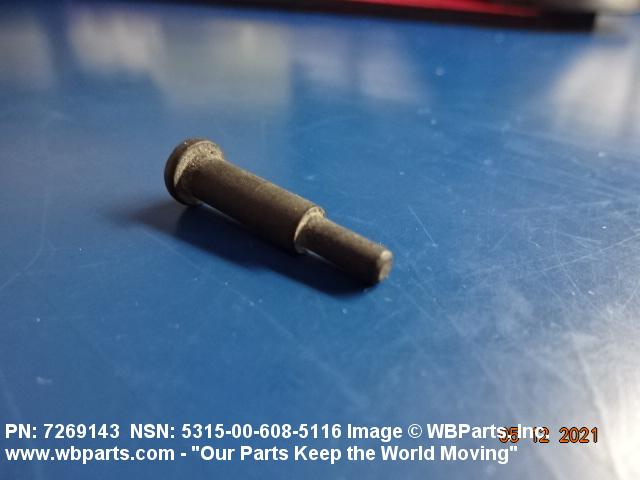

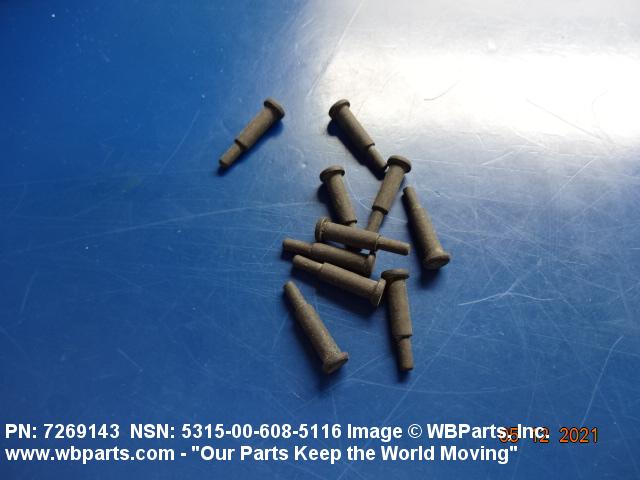

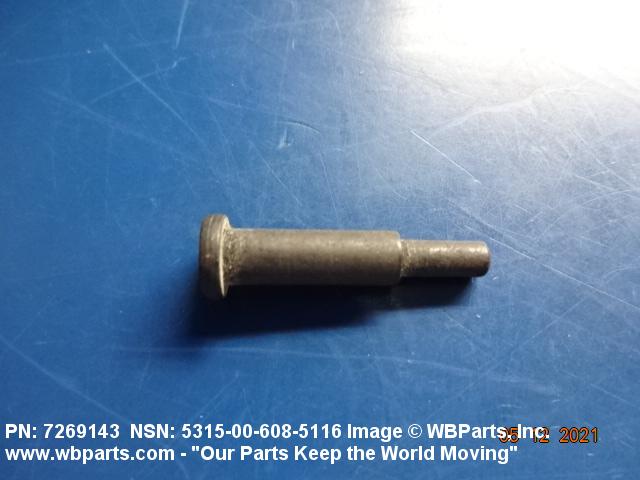

5315-00-608-5116 A cylindrically-shaped headed item, having a solid shank in steps of two or more different diameters under and in addition to the head. Excludes PIN, ECCENTRIC.
Part Alternates: 7269143, 7269145, 5315-00-608-5116, 00-608-5116, 1005006085118 , 5315006085116, 006085116
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-608-5116 | 16563 ( PIN, SHOULDER, HEADED ) |
Drawings & Photos | NSN 5315-00-608-5116
Demand History | NSN 5315-00-608-5116
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-608-5116 | 2021-04-30 | 30 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-608-5116
Related Products | NSN 5315-00-608-5116
Technical Data | NSN 5315-00-608-5116
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 8640 OR STEEL COMP 8740 OVERALL |
| STYLE DESIGNATOR | H149 SHOULDER |

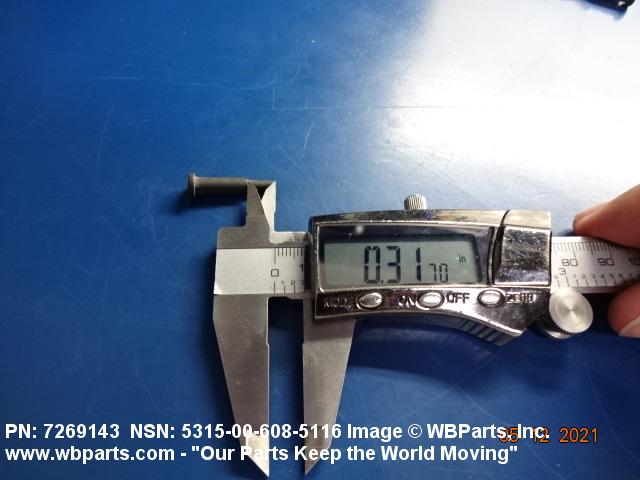

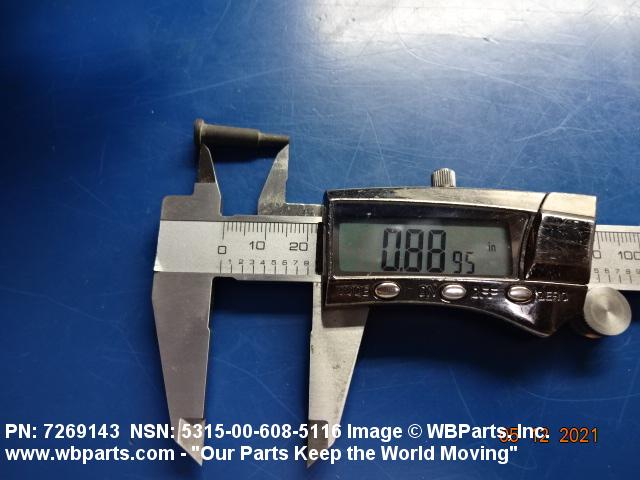

| UNDER HEAD LENGTH | 0.895 INCHES NOMINAL |

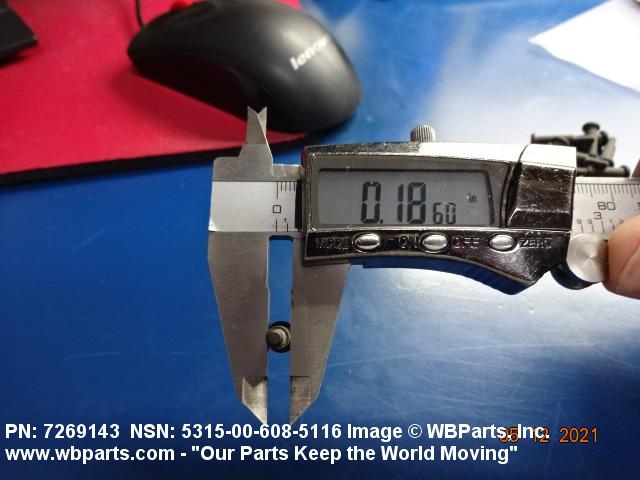

| FIRST STEP DIAMETER | 0.184 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| FIRST STEP LENGTH | 0.575 INCHES MINIMUM AND 0.580 INCHES MAXIMUM |

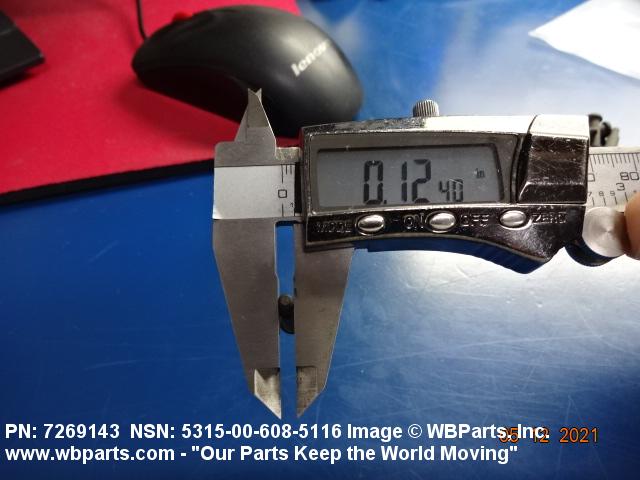

| SECOND STEP DIAMETER | 0.122 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| SECOND STEP LENGTH | 0.315 INCHES NOMINAL |
| FIRST END STYLE | 9 SQUARE |
| HEAD STYLE | 34 PAN NO. 2 |

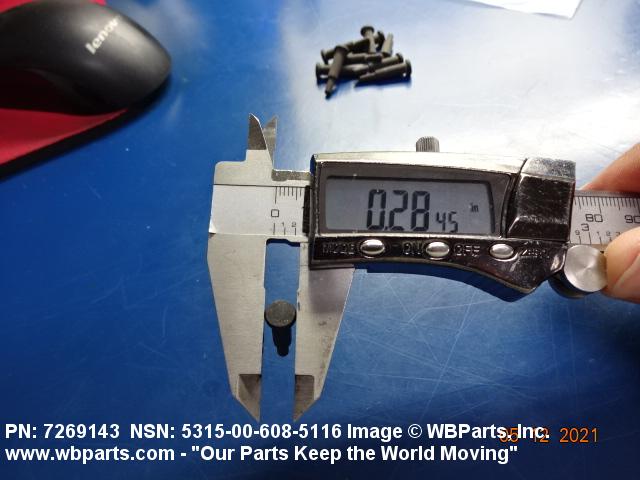

| PIN HEAD DIAMETER | 0.281 INCHES MINIMUM AND 0.286 INCHES MAXIMUM |
| HEIGHT | 0.065 INCHES MINIMUM AND 0.075 INCHES MAXIMUM |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
Restrictions/Controls & Freight Information | NSN 5315-00-608-5116
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 146230 | GUNS MACHINE/PARTS NOI SM ARMS AMMO |
| Less than car load rating | G | 125 |
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 682 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
