NSN 5315-00-298-9738 MS171535, NASM171535 , 42P116997180
Product Details | SPRING PIN

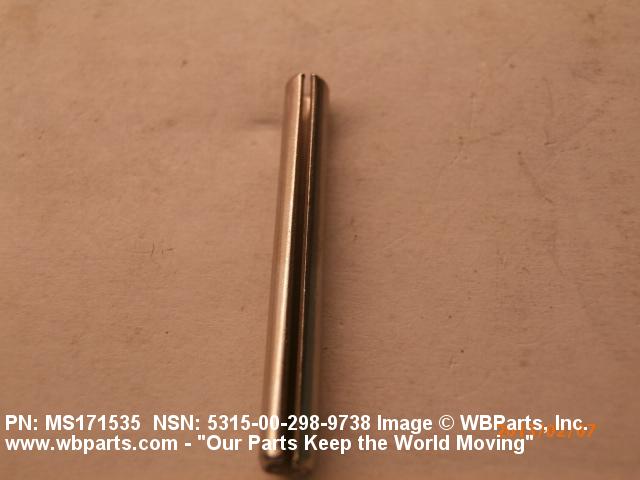

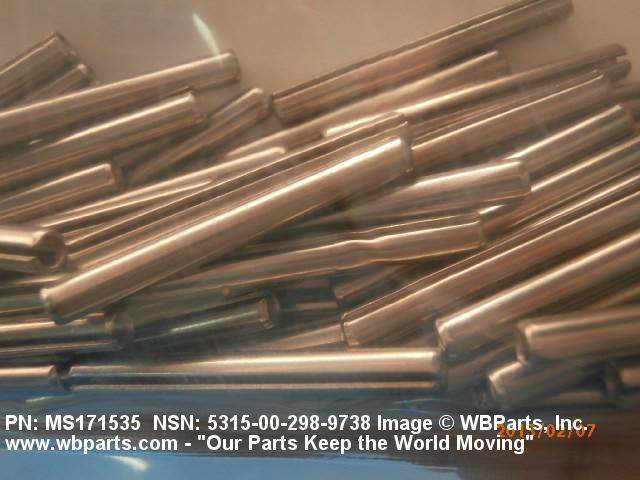

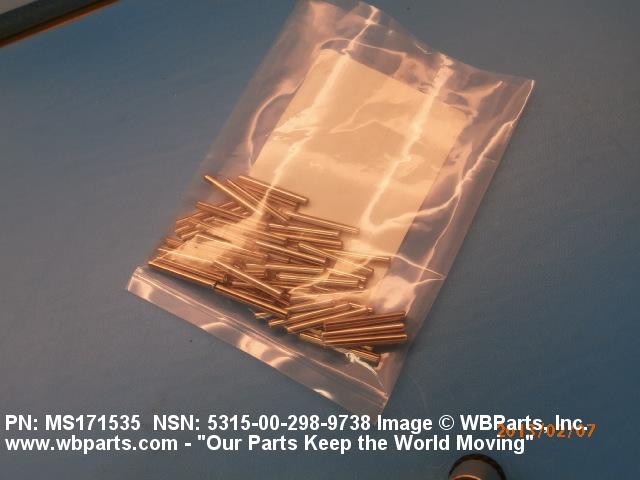

5315-00-298-9738 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS171535, NASM171535 , 42P116997180, 42-P-11699-7180, 5315-00-298-9738, 00-298-9738, 5315002989738, 002989738
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-298-9738 | 02389 ( PIN, SPRING ) |

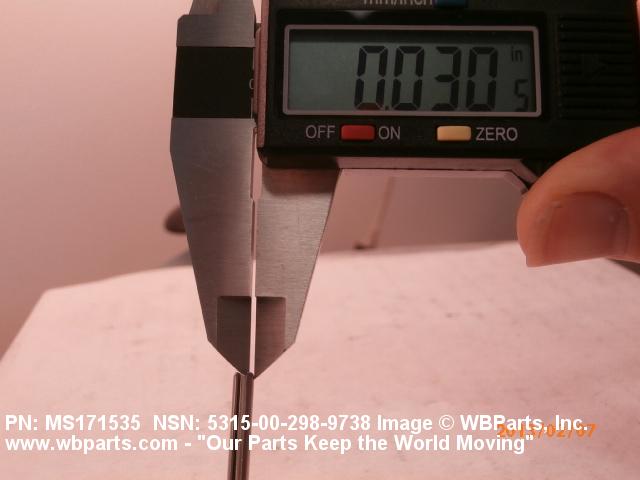

Drawings & Photos | NSN 5315-00-298-9738
Demand History | NSN 5315-00-298-9738
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-298-9738 | 2024-04-114 | 8 | MX |
| 5315-00-298-9738 | 2023-03-89 | 5 | US |
| MS171535 | 2019-01-14 | 2 | US |
| MS171535 | 2018-04-106 | 2 | US |
| MS171535 | 2015-09-258 | 30 | US |
| MS171535 | 2013-10-283 | 50 | United States |
| MS171535 | 2013-08-239 | 188 | US |
| 5315-00-298-9738 | 2013-08-225 | 50 | MANUAL |
| 5315-00-298-9738 | 2013-02-35 | 2 | United States |
| 5315-00-298-9738 | 2011-08-215 | 5 | US |
| MS171535 | 2010-05-139 | 4 | United States |
| 5315-00-298-9738 | 2010-03-70 | 200 | US |
| 5315-00-298-9738 | 2008-02-52 | 3608 | US |
Cross Reference | NSN 5315-00-298-9738
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-298-9738
Related Products | NSN 5315-00-298-9738
Technical Data | NSN 5315-00-298-9738
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5506 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 83.0 ROCKWELL SUPERFICIAL 15-N MINIMUM AND 87.0 ROCKWELL SUPERFICIAL 15-N MAXIMUM OVERALL |

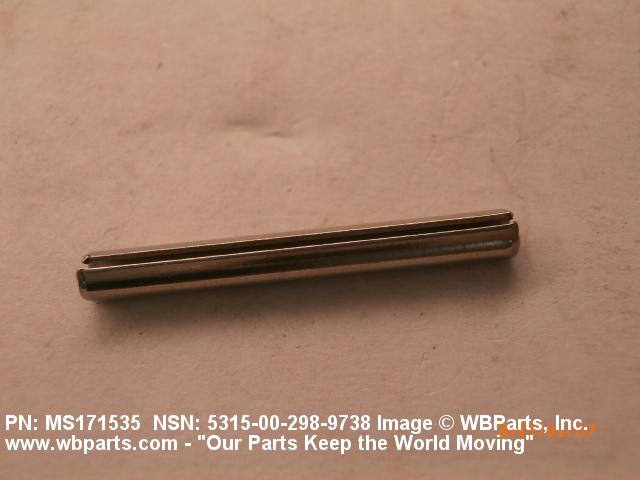

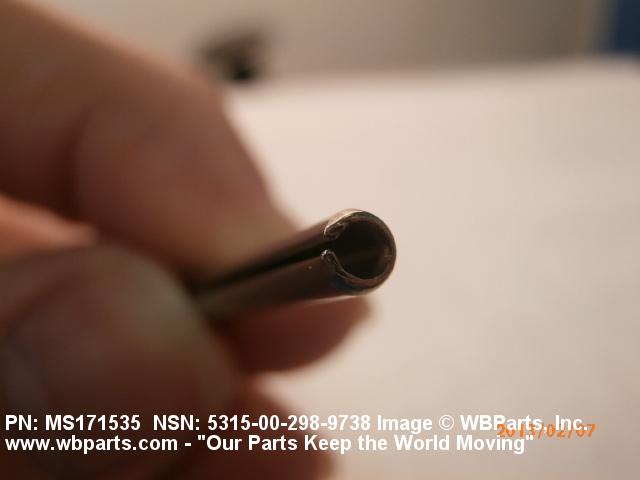

| STYLE DESIGNATOR | K174 SLOTTED |

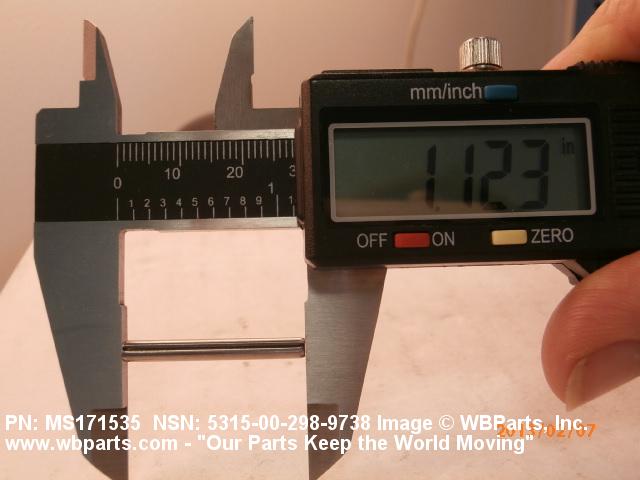

| OVERALL LENGTH | 1.125 INCHES NOMINAL |

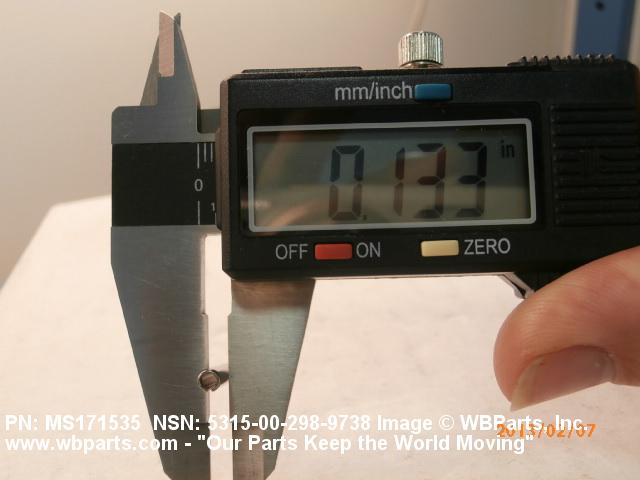

| DIAMETER | 0.125 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.028 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS171535 |
Restrictions/Controls & Freight Information | NSN 5315-00-298-9738
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094380 | COTTER PINS/SPRING COTTERS IRON |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-298-9738
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | MH | HELICOPTERS(H46) |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
