NSN 5315-00-298-9739 MS171657, 0495182F, 0495-182F
Product Details | SPRING PIN
5315-00-298-9739 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS171657, 0495182F, 0495-182F, 5315-00-298-9739, 00-298-9739, 5315002989739, 002989739
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-298-9739 | 02389 ( PIN, SPRING ) |

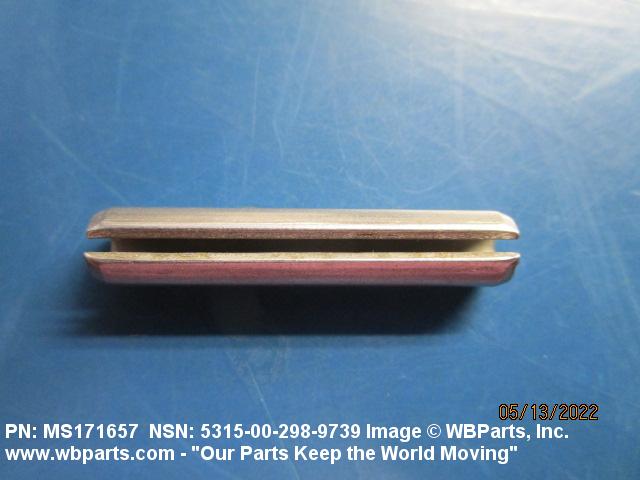

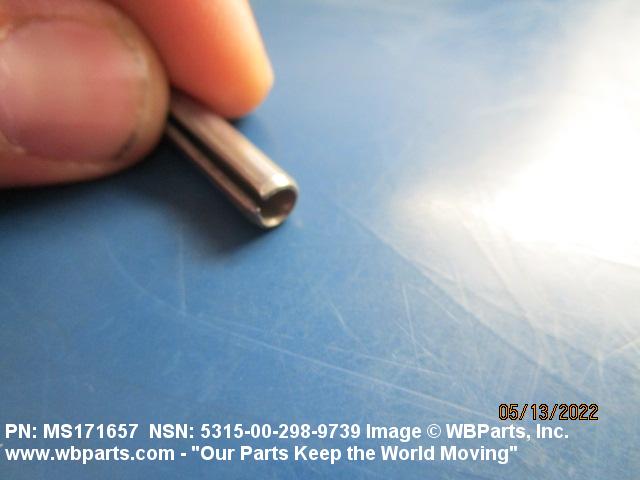

Drawings & Photos | NSN 5315-00-298-9739
Demand History | NSN 5315-00-298-9739
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS171657 | 2024-09-267 | 12 | Italy |
| MS171657 | 2022-04-118 | 25 | United States |
| MS171657 | 2022-04-97 | 25 | United States |
| MS171657 | 2021-10-301 | 9 | United States |
| 5315-00-298-9739 | 2016-02-47 | 10 | US |
| 5315-00-298-9739 | 2016-02-43 | 10 | US |
| MS171657 | 2015-10-281 | 25 | United States |
| 5315-00-298-9739 | 2012-03-66 | 2 | US |
| MS171657 | 2010-12-356 | 1 | Italy |
| 5315-00-298-9739 | 2009-12-355 | 15 | Italy |
| MS171657 | 2009-12-345 | 18 | Italy |
| 5315-00-298-9739 | 2009-05-140 | 100 | US |
| MS171657 | 2009-05-132 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-298-9739
Technical Data | NSN 5315-00-298-9739
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5506 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 83.0 ROCKWELL SUPERFICIAL 15-N MINIMUM AND 87.0 ROCKWELL SUPERFICIAL 15-N MAXIMUM OVERALL |
| STYLE DESIGNATOR | K174 SLOTTED |

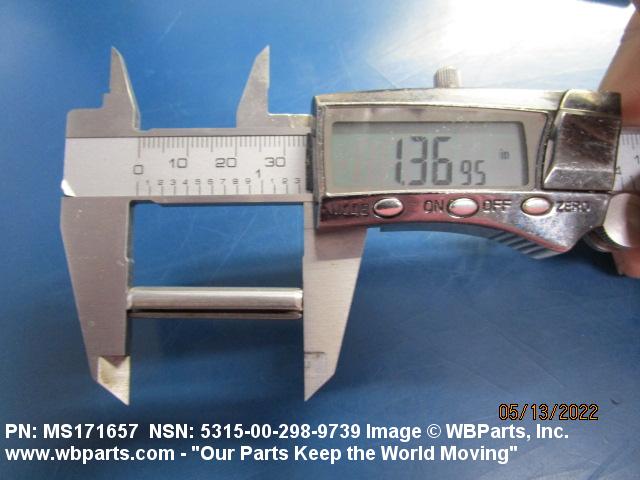

| OVERALL LENGTH | 1.375 INCHES NOMINAL |

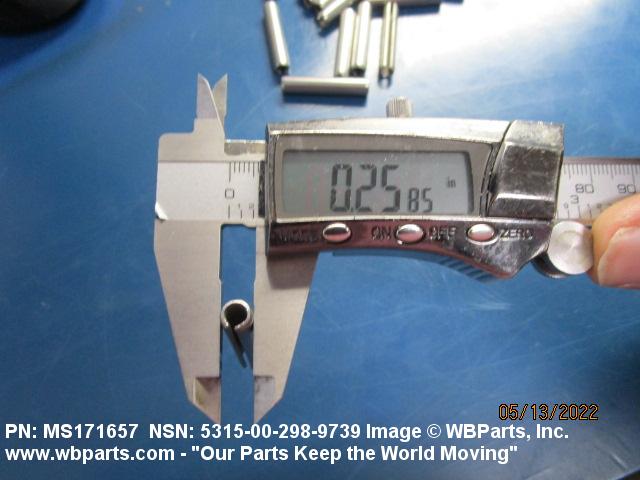

| DIAMETER | 0.250 INCHES NOMINAL |

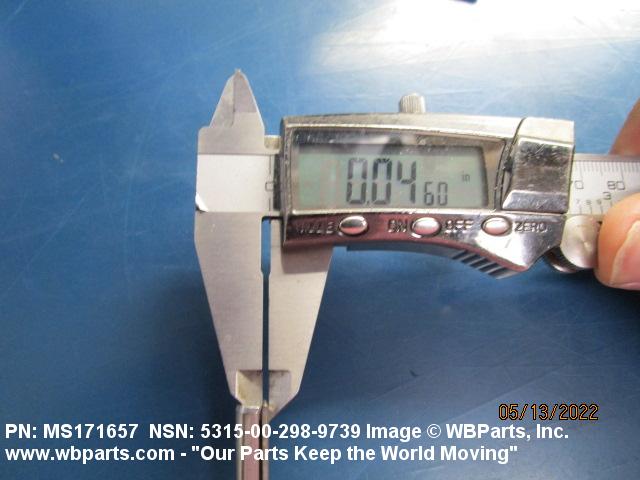

| MATERIAL THICKNESS | 0.048 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS171657 |
Restrictions/Controls & Freight Information | NSN 5315-00-298-9739
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
