Product Details | THREADED TAPERED PIN
5315-00-198-8112 A cone-shaped headless item, having a threaded portion at either end. It is used for aligning, fastening, and the like by fitting into a corresponding taper reamed hole.
Part Alternates: AN386213A, AN386-2-13A, 5315-00-198-8112, 00-198-8112, 5315001988112, 001988112
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-198-8112 | 05444 ( PIN, TAPERED, THREADED ) |
Drawings & Photos | NSN 5315-00-198-8112
Demand History | NSN 5315-00-198-8112
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-198-8112 | 2023-12-346 | 376 | DIBBS |
| 5315-00-198-8112 | 2021-09-255 | 176 | DIBBS |
| 5315-00-198-8112 | 2012-02-60 | 115 | CA |
| 5315-00-198-8112 | 2011-03-82 | 2 | US |
| 5315-00-198-8112 | 2010-03-65 | 500 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-198-8112
Related Products | NSN 5315-00-198-8112
Technical Data | NSN 5315-00-198-8112
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OR STEEL COMP 8740 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-681 FED SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

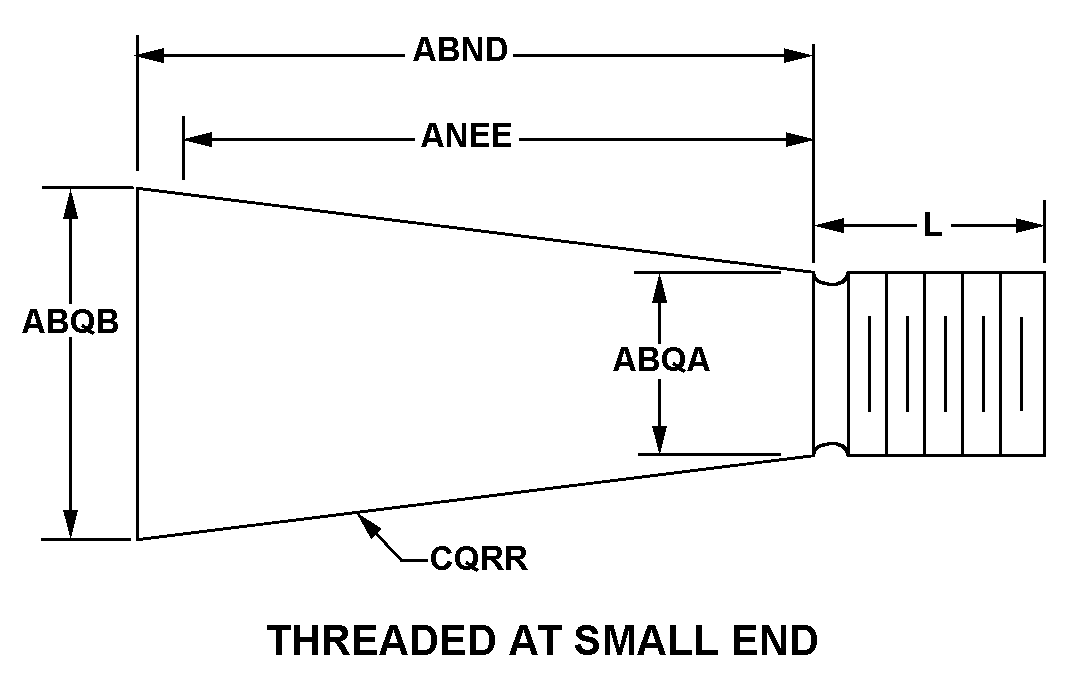

| STYLE DESIGNATOR | M203 THREADED AT SMALL END |
| TAPER LENGTH | 1.734 INCHES MINIMUM AND 1.766 INCHES MAXIMUM |
| TAPER MINOR DIAMETER | 0.253 INCHES MINIMUM AND 0.257 INCHES MAXIMUM |
| TAPER MAJOR DIAMETER | 0.330 INCHES NOMINAL |
| GRIP LENGTH | 1.609 INCHES MINIMUM AND 1.641 INCHES MAXIMUM |
| TAPER | 0.500 PER FOOT IN INCHES |
| FIRST END STYLE | 2 POINTED |
| FIRST END TAPER LENGTH | 0.046 INCHES NOMINAL |
| FIRST END TAPER ANGLE | ANY ACCEPTABLE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 9 SQUARE |
| FIRST END LOCATION | POINTED END |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.422 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
