NSN 5315-00-198-8116 AN386215A, AN386-2-15A, 00-198-8116
Product Details | THREADED TAPERED PIN

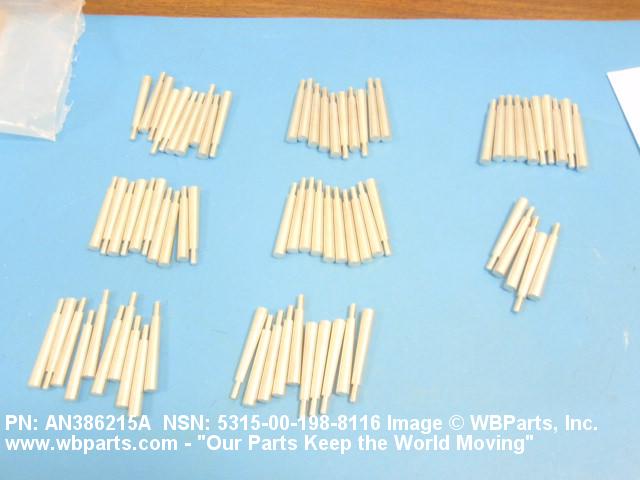

5315-00-198-8116 A cone-shaped headless item, having a threaded portion at either end. It is used for aligning, fastening, and the like by fitting into a corresponding taper reamed hole.
Part Alternates: AN386215A, AN386-2-15A, 5315-00-198-8116, 00-198-8116, 5315001988116, 001988116
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-198-8116 | 05444 ( PIN, TAPERED, THREADED ) |
Drawings & Photos | NSN 5315-00-198-8116
Demand History | NSN 5315-00-198-8116
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-198-8116 | 2024-08-231 | 59 | DIBBS |
| 5315-00-198-8116 | 2023-12-352 | 162 | DIBBS |
| 5315-00-198-8116 | 2021-05-129 | 645 | DIBBS |
| 5315-00-198-8116 | 2019-03-87 | 663 | DIBBS |
| 5315-00-198-8116 | 2019-03-79 | 663 | DIBBS |
| 5315-00-198-8116 | 2018-05-141 | 37 | United States |
| 5315-00-198-8116 | 2018-05-140 | 226 | DIBBS |
| 5315-00-198-8116 | 2018-01-04 | 1 | DIBBS-RFPs |
| 5315-00-198-8116 | 2011-05-125 | 952 | DIBBS |
| AN386215A | 2010-02-40 | 64 | United States |
| AN386215A | 2009-12-341 | 75 | United States |
Cross Reference | NSN 5315-00-198-8116
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN386-2-15A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
