NSN 5315-00-194-2455 AA554872, AA55487-2, AN4152
Product Details | LOCK PIN

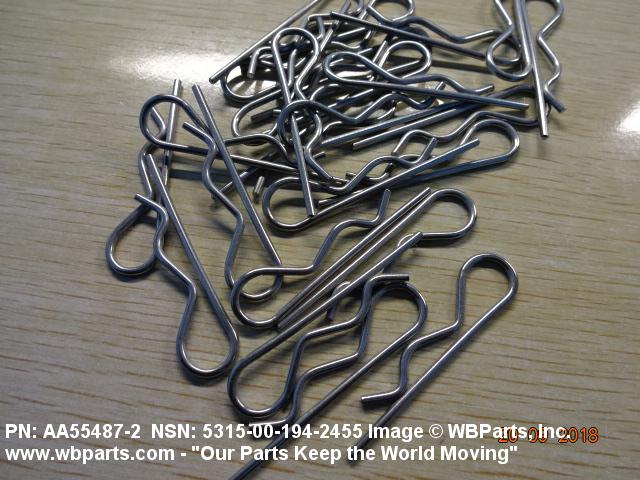

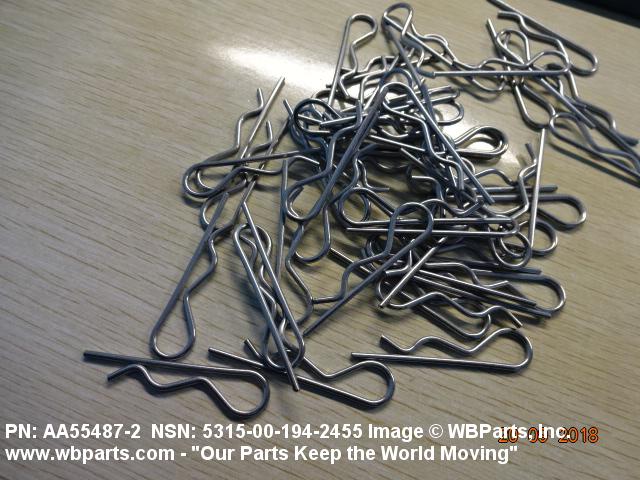

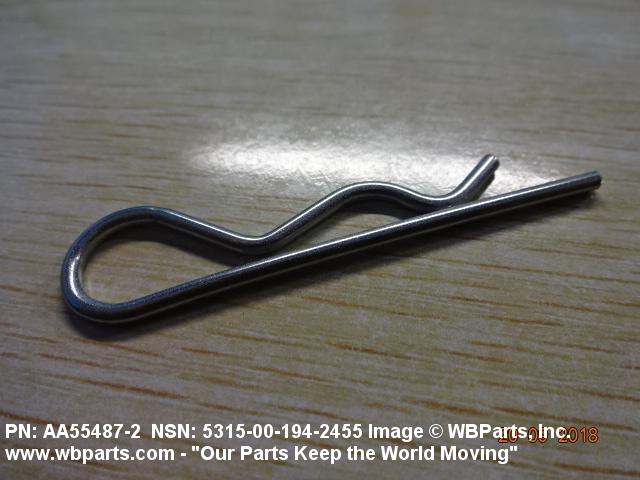

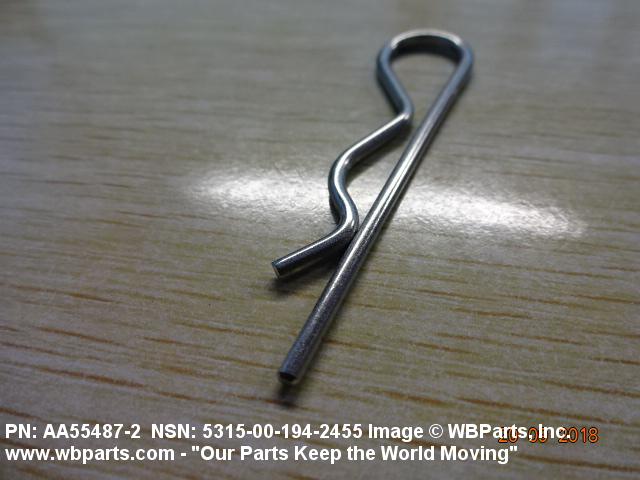

5315-00-194-2455 A fastening device formed from resilient wire stock into a shape resembling the letter "U", of which at least one of the prongs is straight for insertion into a hole; the other prong may have one or more curvatures along its length. It is designed to hold itself in place by its inherent spring action. See also CLIP, RETAINING and RING, RETAINING.
Part Alternates: AA554872, AA55487-2, AN4152, AN415-2, BACP18N3, 12561306-4, 2001C002P16, 5315-00-194-2455, 00-194-2455, 5315001942455, 125613064, 001942455
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-194-2455 | 02387 ( PIN, LOCK ) |

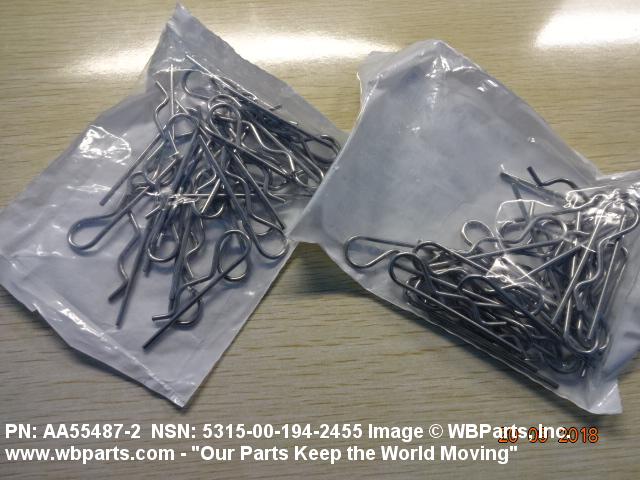

Drawings & Photos | NSN 5315-00-194-2455
Demand History | NSN 5315-00-194-2455
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-194-2455 | 2025-01-12 | 7 | DIBBS |
| AN4152 | 2024-09-256 | 2 | Uganda |
| 5315-00-194-2455 | 2023-05-121 | 10 | United States |
| 5315-00-194-2455 | 2023-03-67 | 2 | MY |
| AN4152 | 2023-03-61 | 2 | Malaysia |
| AN4152 | 2023-01-09 | 2 | Malaysia |
| 5315-00-194-2455 | 2021-04-109 | 1 | Greece |
| AN4152 | 2019-03-87 | 30 | US |
| 5315-00-194-2455 | 2018-05-138 | 1 | United States |
| 5315-00-194-2455 | 2018-03-87 | 354 | DIBBS |
| 5315001942455 | 2018-02-50 | 10 | AU |
| 5315-00-194-2455 | 2018-01-04 | 1 | DIBBS-RFPs |
| 5315-00-194-2455 | 2017-11-333 | 354 | DIBBS |
| 5315-00-194-2455 | 2017-05-125 | 30 | IN |
| AA554872 | 2015-03-77 | 2 | United States |
| 5315-00-194-2455 | 2015-02-42 | 1 | United States |
| 5315-00-194-2455 | 2014-03-66 | 2 | United States |
| 5315-00-194-2455 | 2013-09-247 | 370 | DIBBS |
| AN4152 | 2013-05-121 | 500 | US |
| AN415-2 | 2013-02-38 | 44 | United States |
| 5315-00-194-2455 | 2013-01-30 | 4400 | MANUAL |
| AN415-2 | 2013-01-30 | 4400 | United States |
| AN4152 | 2011-05-124 | 216 | US |
| 5315-00-194-2455 | 2009-04-104 | 450 | DIBBS |
| 5315-00-194-2455 | 2008-12-352 | 100 | United States |
| 5315-00-194-2455 | 2008-01-25 | 20 | US |
Cross Reference | NSN 5315-00-194-2455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12561306-4 | 19200 | US ARMY ARDEC RDECOM |
| 2001C002P16 | 33469 | AVIONICS COMMUNICATIONS SYSTEMS INC |
| AA55487-2 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AN415-2 | 00742 | AIR PRODUCTS AND CHEMICALS, INC. DBA AIR PRODUCTS |
| AN415-2 | 05259 | CONTAINER RESEARCH CORPORATION DBA CRC |
| AN415-2 | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
| AN415-2 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| BACP18N3 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-194-2455
Related Products | NSN 5315-00-194-2455
Technical Data | NSN 5315-00-194-2455
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423 COND B FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | G130 LOCK |

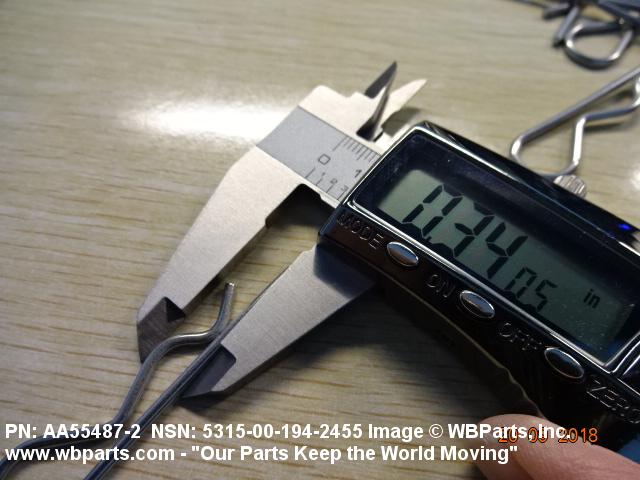

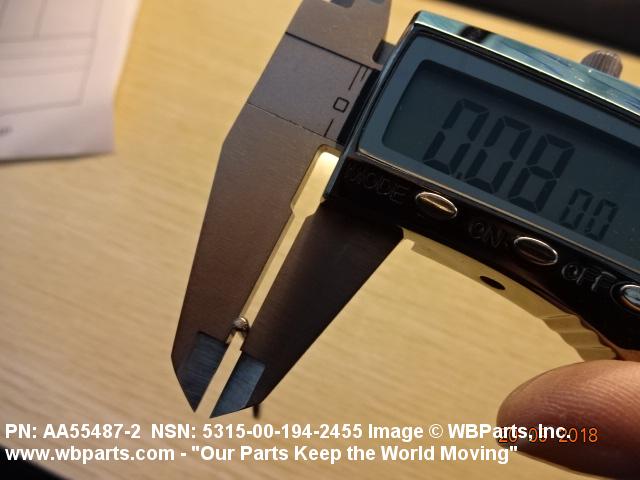

| WIRE STOCK DIAMETER | 0.078 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |

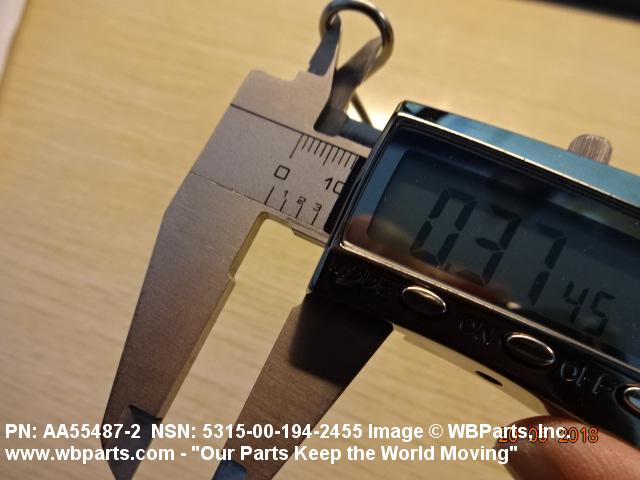

| OPENING WIDTH | 0.375 INCHES NOMINAL |

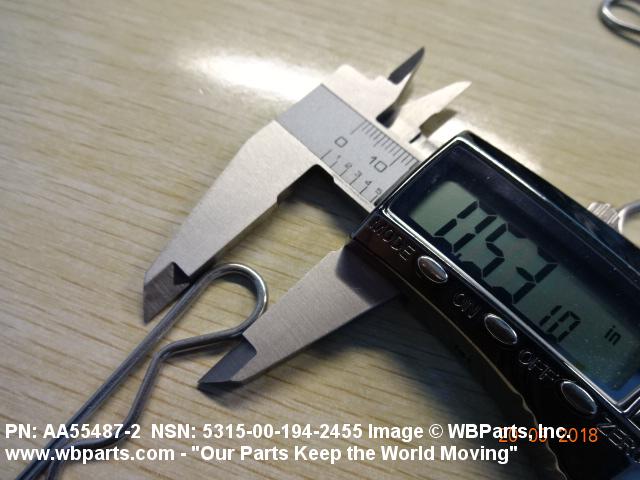

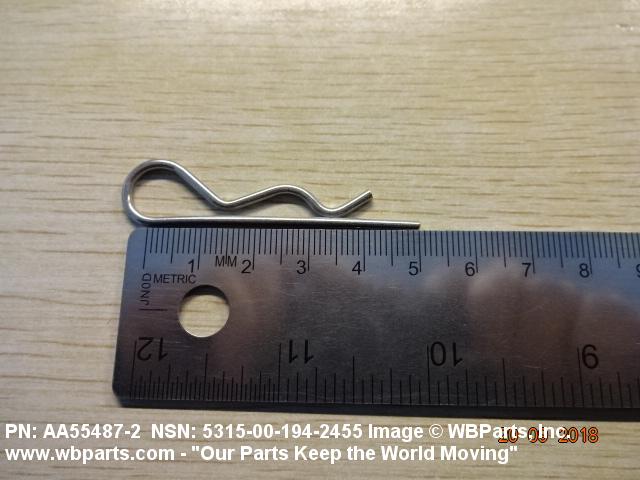

| PRONG LENGTH | 1.922 INCHES MINIMUM AND 1.954 INCHES MAXIMUM |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA55487-2 |
Restrictions/Controls & Freight Information | NSN 5315-00-194-2455
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
