NSN 5315-00-071-9178 7596972, 00-071-9178, 000719178
Product Details | LOCK PIN
5315-00-071-9178 A fastening device formed from resilient wire stock into a shape resembling the letter "U", of which at least one of the prongs is straight for insertion into a hole; the other prong may have one or more curvatures along its length. It is designed to hold itself in place by its inherent spring action. See also CLIP, RETAINING and RING, RETAINING.
Part Alternates: 7596972, 5315-00-071-9178, 00-071-9178, 5315000719178, 000719178
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUL 1967 | 00-071-9178 | 02387 ( PIN, LOCK ) |

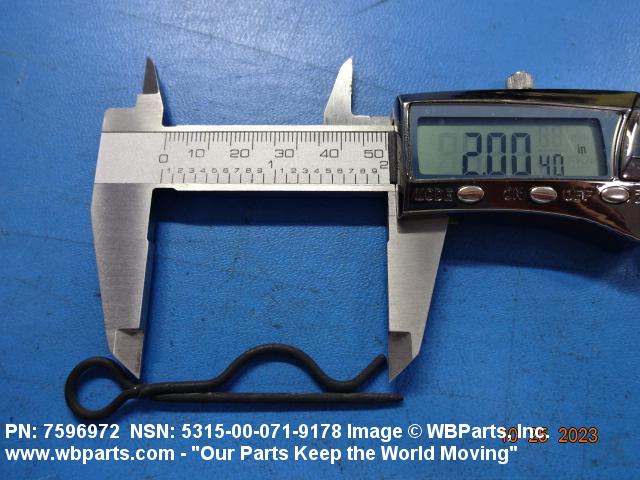

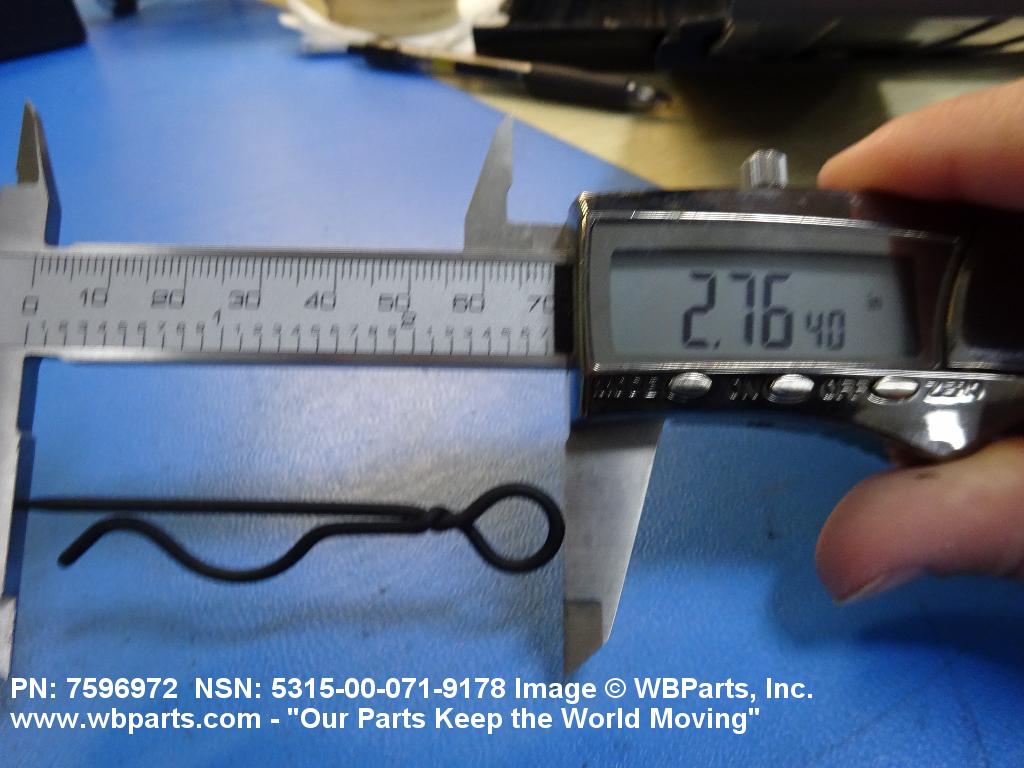

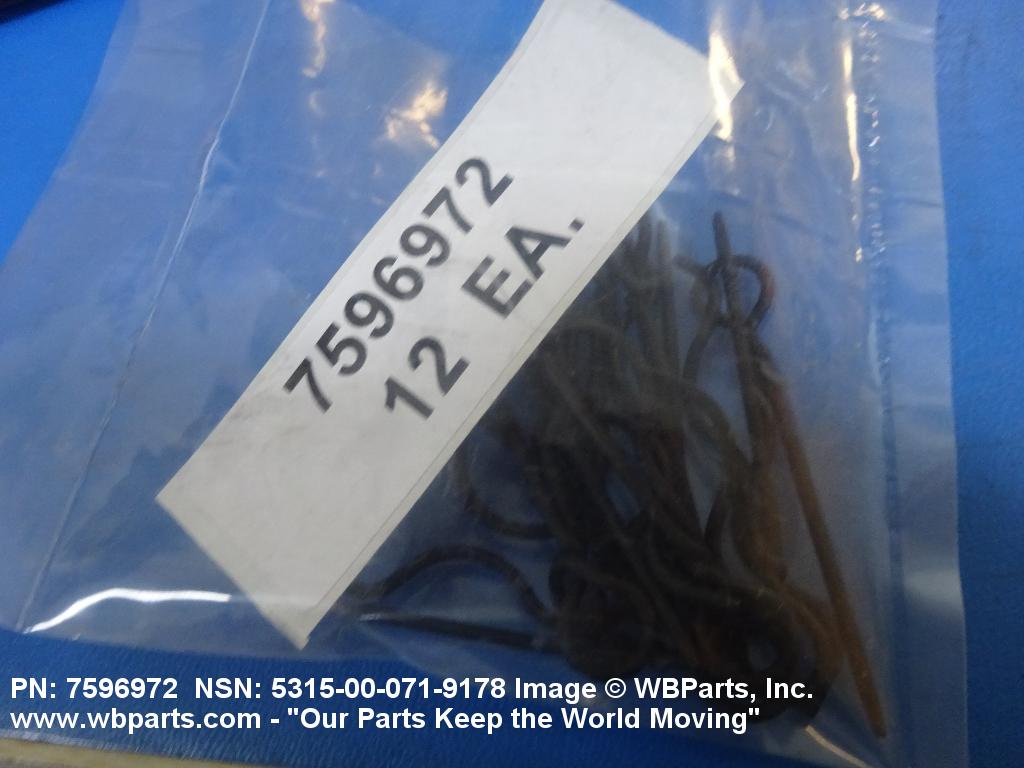

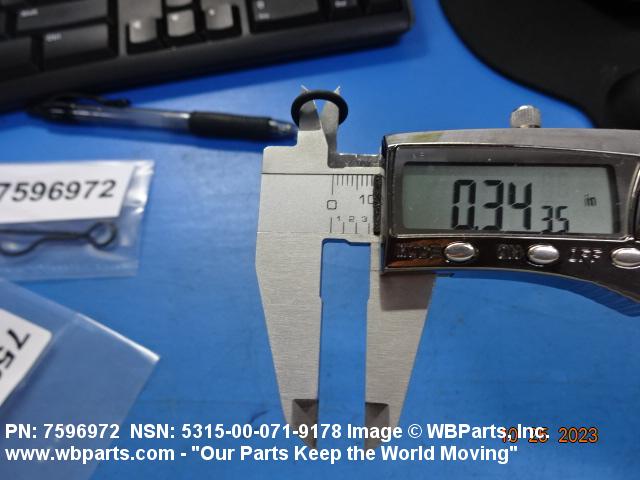

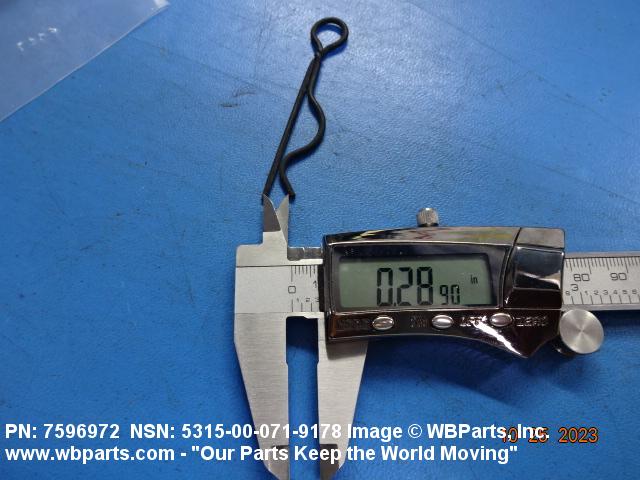

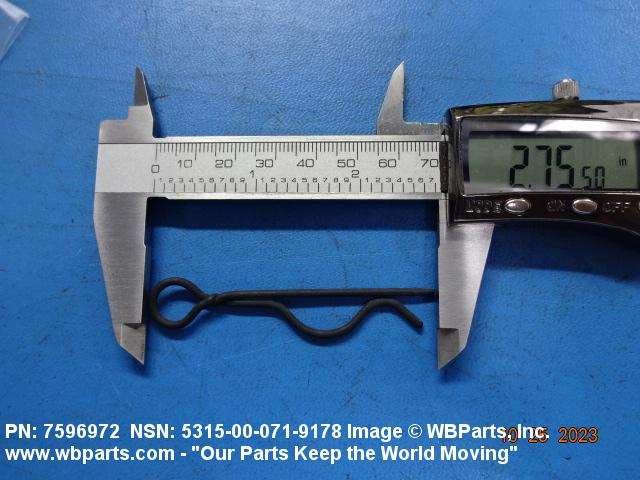

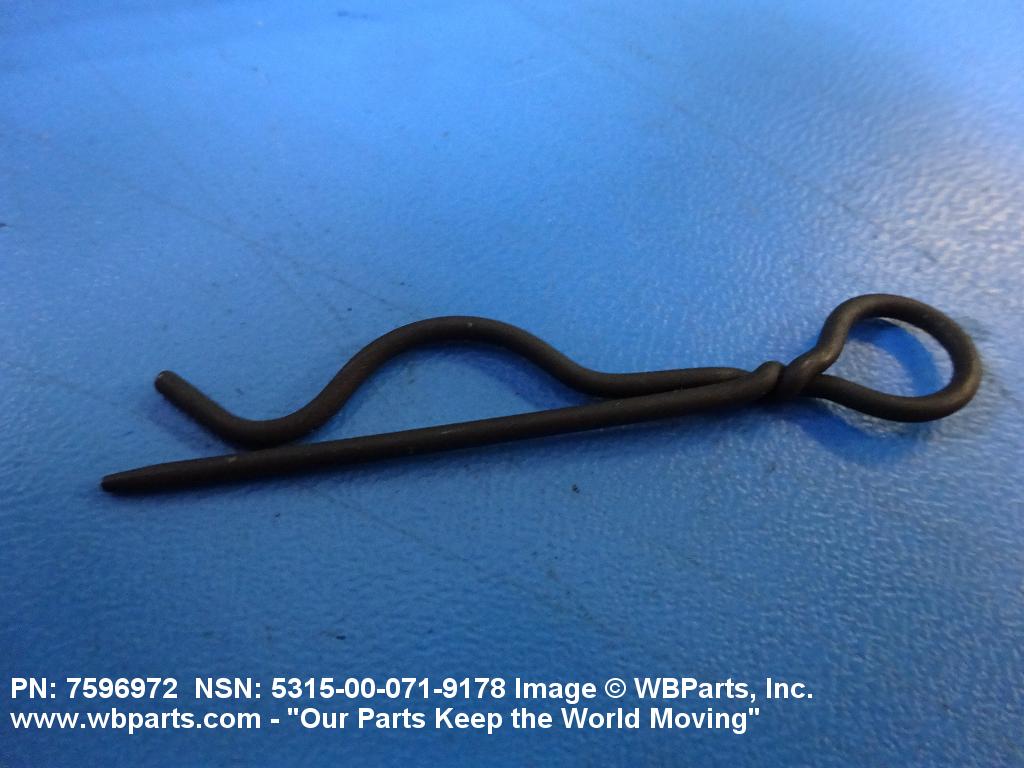

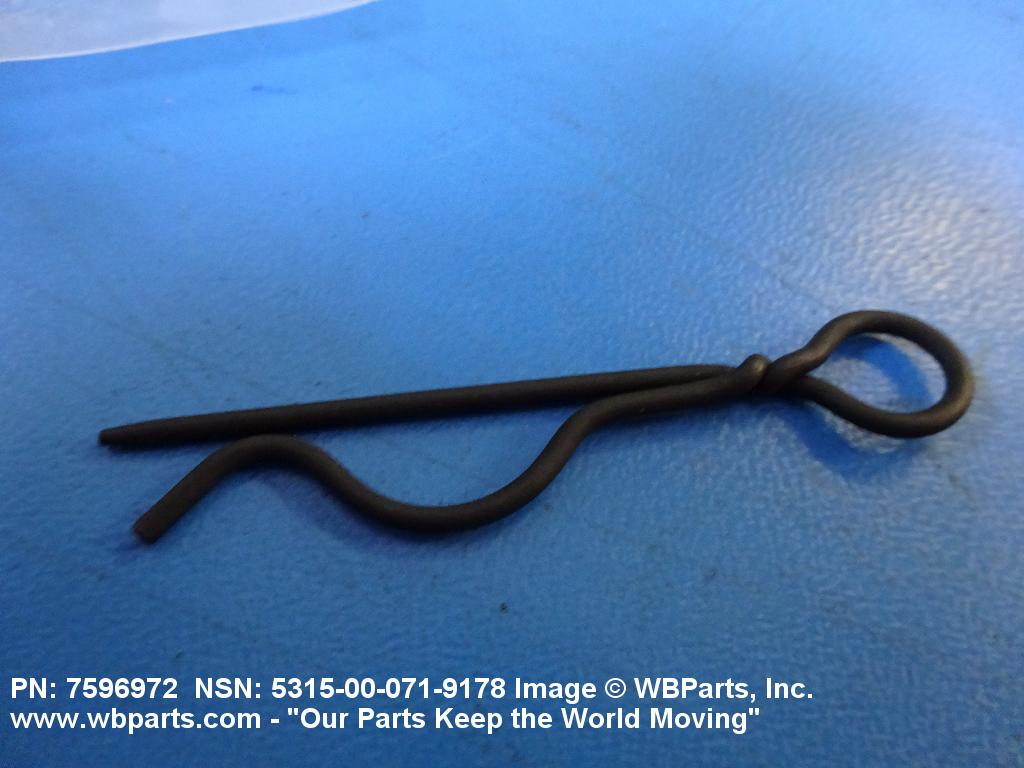

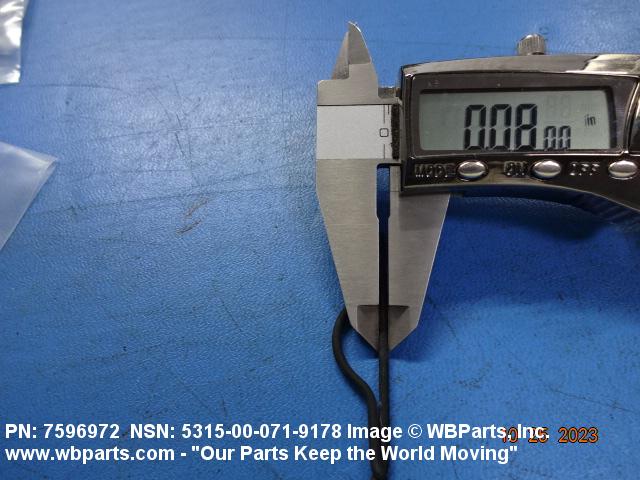

Drawings & Photos | NSN 5315-00-071-9178
Demand History | NSN 5315-00-071-9178
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-071-9178 | 2024-02-38 | 6 | US |
| 7596972 | 2023-10-283 | 8 | United States |
| 7596972 | 2023-06-160 | 1 | United States |
| 7596972 | 2022-02-48 | 12 | United States |
| 5315000719178 | 2018-03-78 | 15 | US |
| 5315-00-071-9178 | 2014-03-90 | 1689 | DIBBS |
| 5315-00-071-9178 | 2014-03-75 | 1689 | DIBBS |
| 5315-00-071-9178 | 2009-12-349 | 1418 | DIBBS |
| 5315-00-071-9178 | 2009-04-105 | 238 | DIBBS |
| 5315-00-071-9178 | 2009-02-36 | 973 | DIBBS |
Cross Reference | NSN 5315-00-071-9178
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7596972 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-071-9178
Related Products | NSN 5315-00-071-9178
Technical Data | NSN 5315-00-071-9178
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| STYLE DESIGNATOR | G131 LOCK |
| WIRE STOCK DIAMETER | 0.080 INCHES NOMINAL |
| OPENING WIDTH | 0.250 INCHES NOMINAL |
| PRONG LENGTH | 2.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-00-071-9178
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-071-9178
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
