Product Details | HEADED GROOVED PIN
5315-00-011-0223 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Part Alternates: 6406201, 6-40620-1, 5315-00-011-0223, 00-011-0223, 5315000110223, 000110223
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-011-0223 | 02382 ( PIN, GROOVED, HEADED ) |
Drawings & Photos | NSN 5315-00-011-0223
Demand History | NSN 5315-00-011-0223
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-011-0223 | 2019-09-265 | 30 | United States |
| 6-40620-1 | 2012-09-249 | 40 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-011-0223
Related Products | NSN 5315-00-011-0223
Technical Data | NSN 5315-00-011-0223
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5613 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

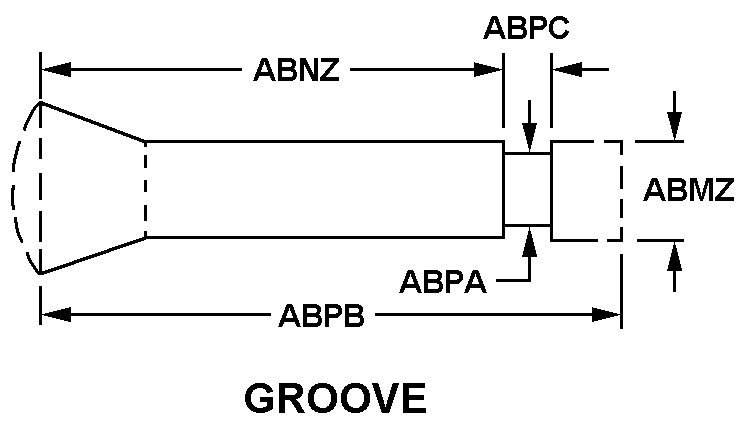

| STYLE DESIGNATOR | E90 GROOVE |
| DIAMETER | 0.251 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |
| EFFECTIVE LENGTH | 0.887 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.187 INCHES NOMINAL |
| UNDER HEAD LENGTH | 1.875 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.100 INCHES NOMINAL |
| FIRST END STYLE | 7 COUNTERBORED W/THRU HOLE |
| FIRST END COUNTERBORE DIAMETER | 0.177 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| FIRST END COUNTERBORE DEPTH | 0.270 INCHES NOMINAL |
| HEAD STYLE | 18 FLAT COUNTERSUNK |
| PIN HEAD DIAMETER | 0.380 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| HEAD COUNTERSINK ANGLE | 60.0 DEGREES NOMINAL |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| MANUFACTURERS CODE | 76823 |
| DESIGN CONTROL REFERENCE | 6-40620-1 |
