Product Details | CLIP-ON NUT
5310-01-644-6042 An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means.
Part Alternates: 90680A300 , 5310-01-644-6042, 01-644-6042, 5310016446042, 016446042
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2015133 | 01-644-6042 | 35871 ( NUT, CLIP-ON ) |

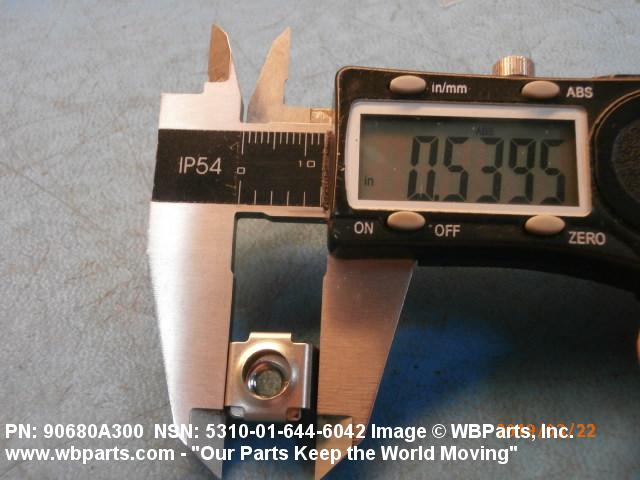

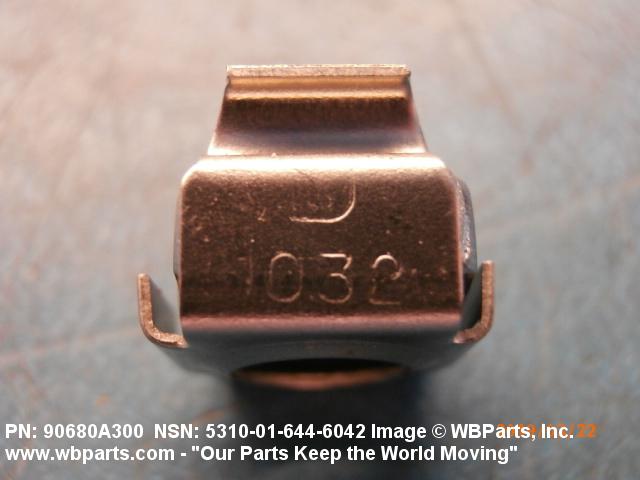

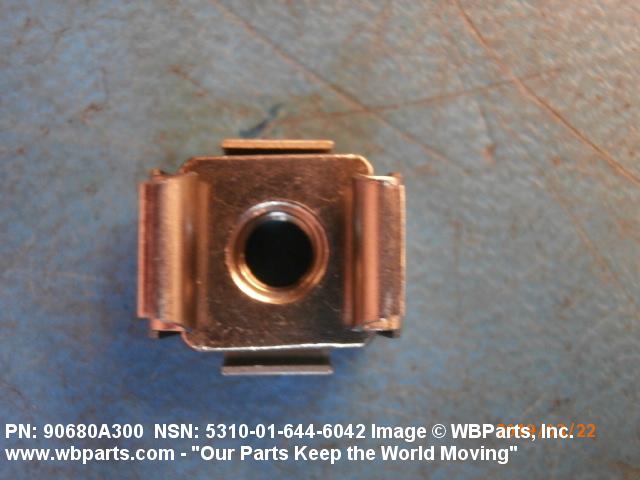

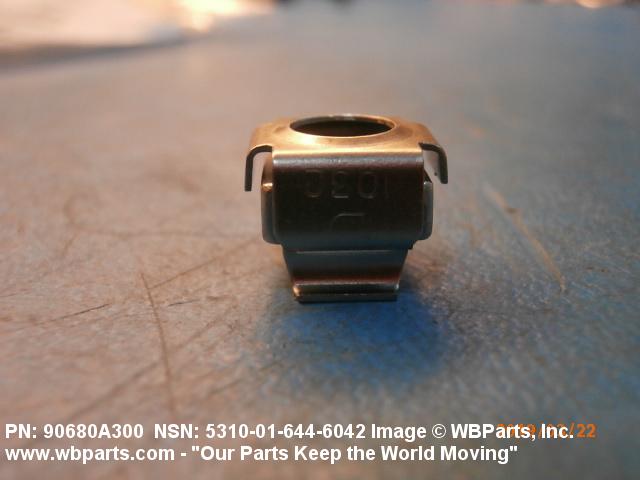

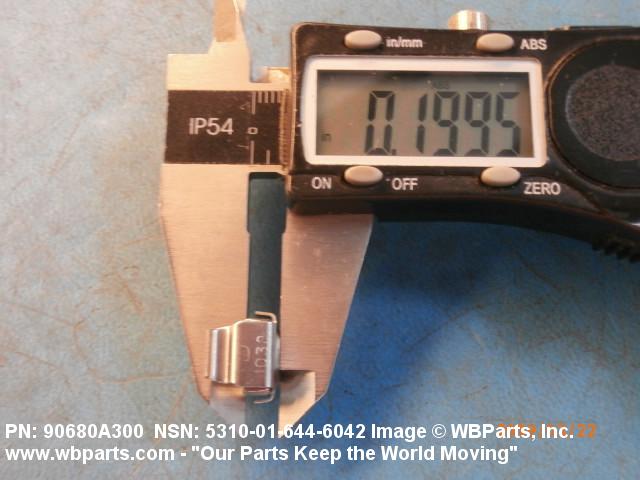

Drawings & Photos | NSN 5310-01-644-6042
Demand History | NSN 5310-01-644-6042
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 90680A300 | 2022-07-27 | 116 | DIBBS |
| 90680A300 | 2022-06-05 | 32 | DIBBS |
| 90680A300 | 2022-04-05 | 80 | DIBBS |
| 90680A300 | 2022-03-14 | 951 | DIBBS |
| 90680A300 | 2022-03-02 | 951 | DIBBS |
| 5310-01-644-6042 | 2019-03-20 | 20 | US |
| 5310-01-644-6042 | 2019-02-20 | 20 | United States |
| 5310-01-644-6042 | 2015-08-03 | 77 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5310-01-644-6042
5310-01-644-6059, 5310-01-644-6264, 5310-01-644-6382, 5310-01-644-6484, 5310-01-644-6620
Technical Data | NSN 5310-01-644-6042
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 302 NUT |
| NUT STYLE | U-SHAPED |
| MATERIAL THICKNESS | 0.020 INCHES NOMINAL |
| NUT LENGTH | 0.770 INCHES NOMINAL |
| NUT HEIGHT | 0.250 INCHES NOMINAL |
| NUT WIDTH | 0.520 INCHES NOMINAL |
| PANEL THICKNESS | 0.064 INCHES MINIMUM AND |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | EASY-ALIGN CLIP-ON NUT |
Restrictions/Controls & Freight Information | NSN 5310-01-644-6042
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-01-644-6042
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 PG : Package |
