Product Details | CLIP-ON NUT
5310-01-446-6717 An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means.
Part Alternates: NRC600C3M4, NRC600-C3M-4, 13100009-4, 03A11134, 03A111-3-4, 5310-01-446-6717, 01-446-6717, 5310014466717, 014466717, 131000094
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JUL 1997 | 01-446-6717 | 35871 ( NUT, CLIP-ON ) |

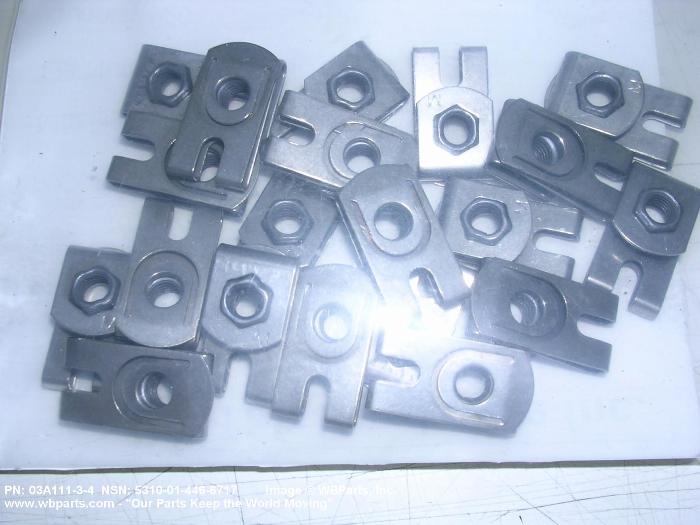

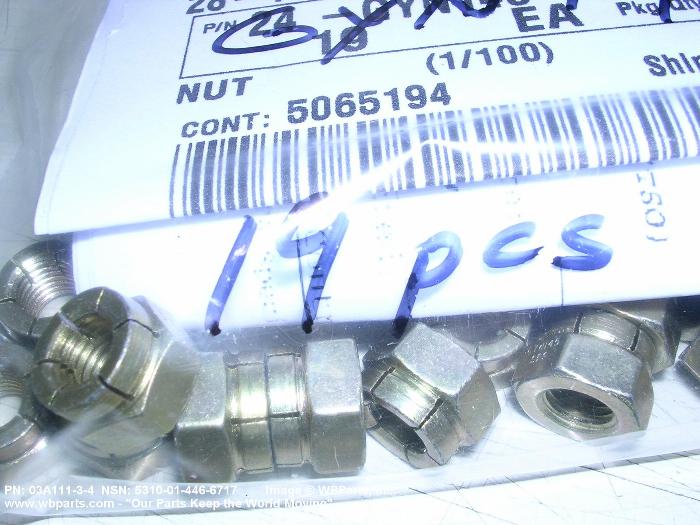

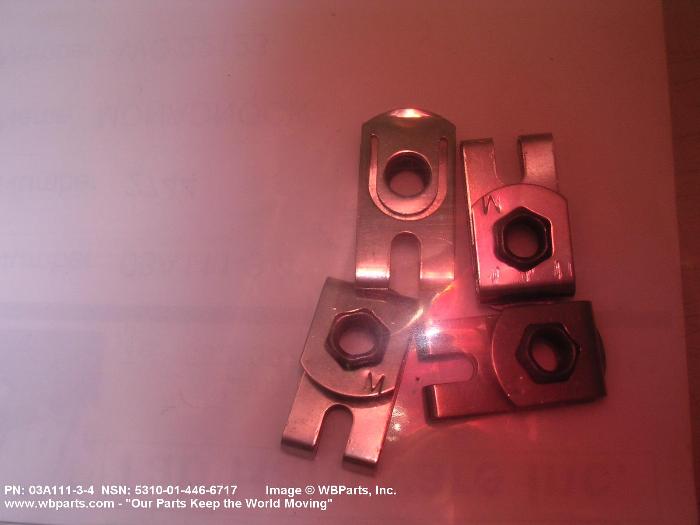

Drawings & Photos | NSN 5310-01-446-6717
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5310-01-446-6717
5310-01-446-6723, 5310-01-446-6728, 5310-01-446-6734, 5310-01-446-6735, 5310-01-446-6737
Technical Data | NSN 5310-01-446-6717
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A398 ANCHOR |
| OVERALL WIDTH | 0.447 INCHES MAXIMUM |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.500 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| PANEL THICKNESS | 0.095 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-446-6717
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-01-446-6717
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BQ | TN:B-2 TSSP, NORTHROP GRUMMAN |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F59 | Northrop Grumman IS ACS 2501 Liberty Parkway, Suite 101 Midwest, OK 73110-2885 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
