Product Details | DOUBLE HEXAGON SELF-LOCKING NUT
5310-01-589-7335 A nut having 12 drive points and 24 sides. The bearing surface may be washer faced. An integral locking feature is incorporated in the design of the head or in the threads.
Part Alternates: NAS18054F, NAS1805-4F , BACN11Z4CK, 5310-01-589-7335, 01-589-7335, 5310015897335, 015897335
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 NOV 2010 | 01-589-7335 | 05276 ( NUT, SELF-LOCKING, DOUBLE HEXAGON ) |

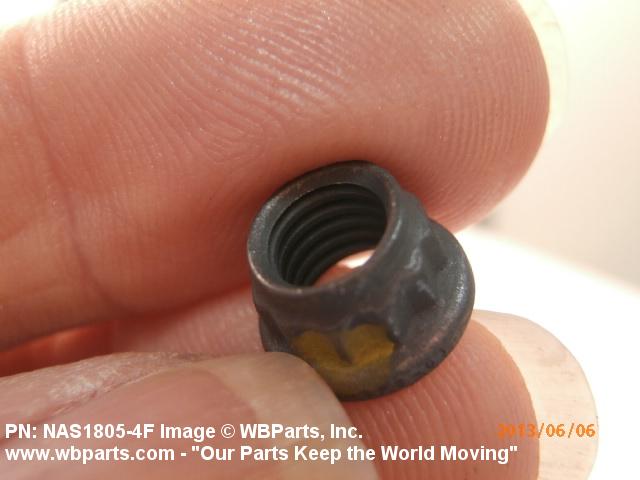

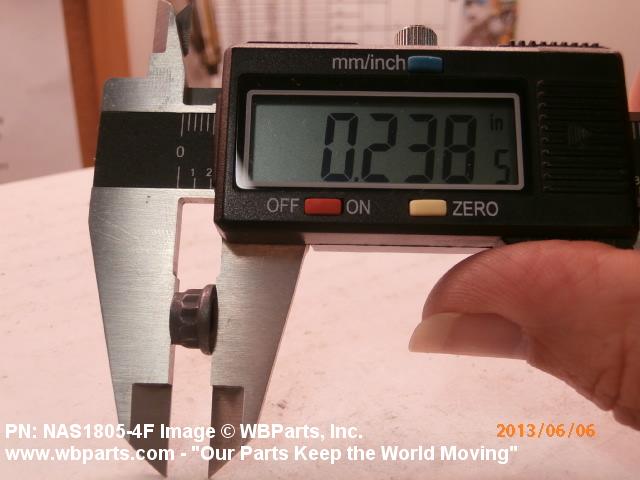

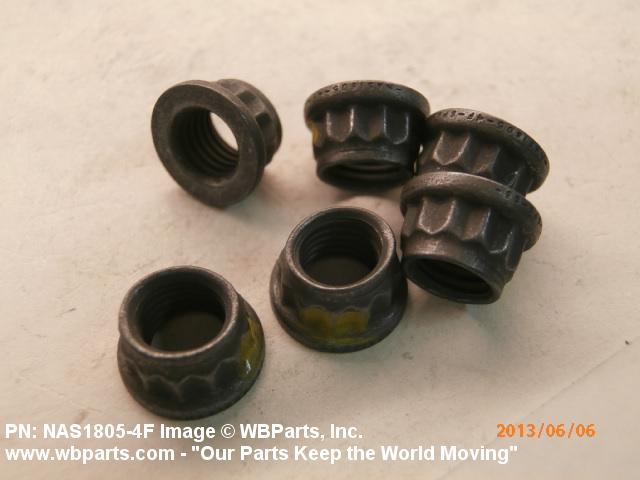

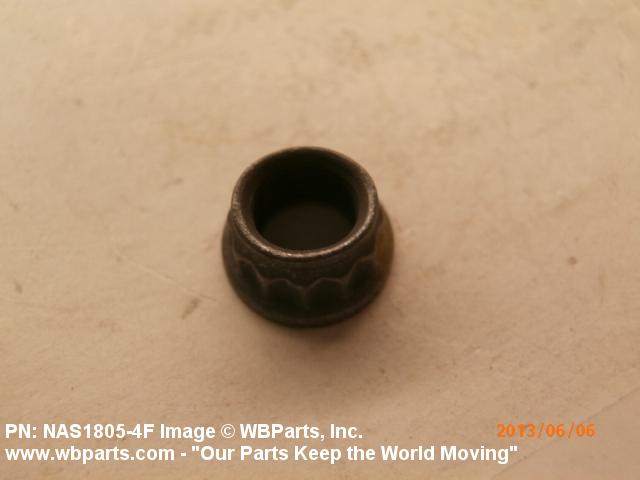

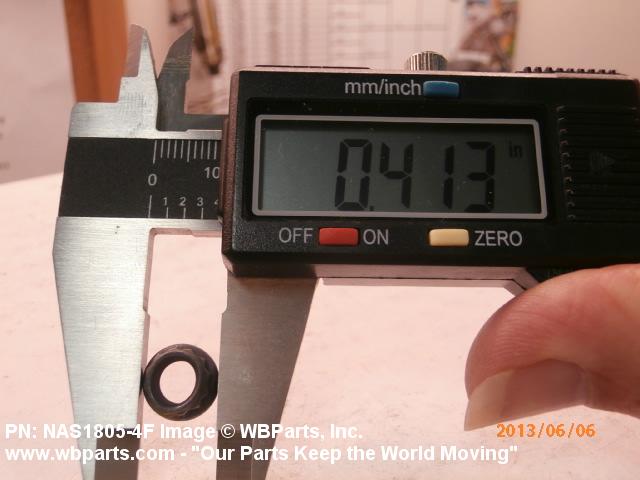

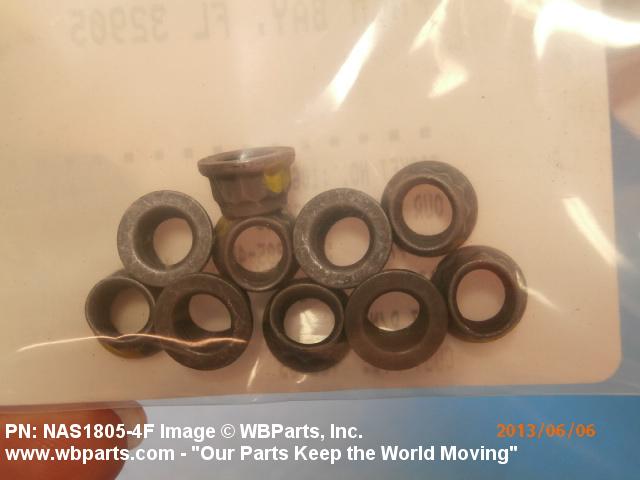

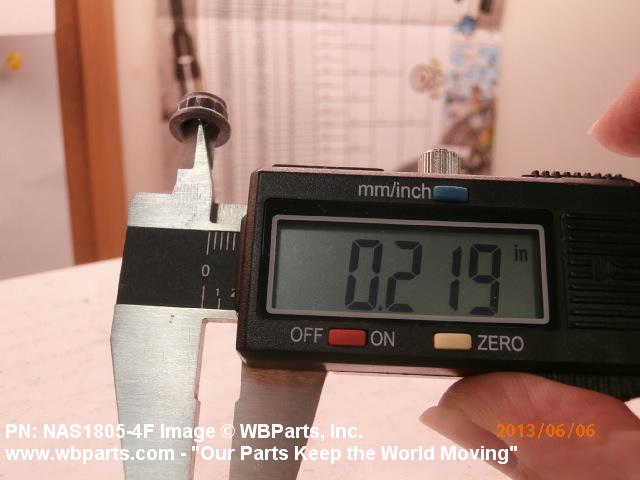

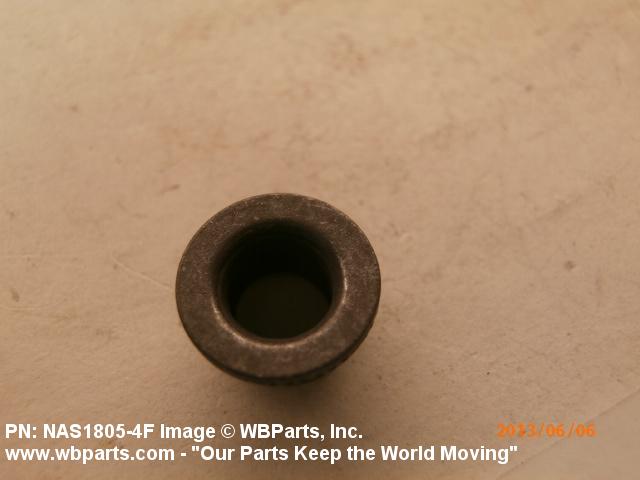

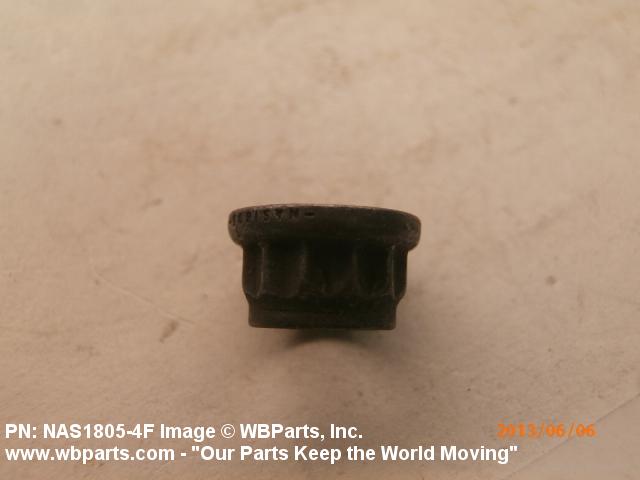

Drawings & Photos | NSN 5310-01-589-7335
Demand History | NSN 5310-01-589-7335
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-589-7335 | 2022-06-02 | 20 | US |
| NAS18054F | 2020-10-27 | 25 | us |
| NAS18054F | 2019-02-18 | 900 | United States |
| 5310-01-589-7335 | 2017-02-14 | 379 | DIBBS |
| NAS18054F | 2013-05-28 | 10 | United States |
| NAS18054F | 2013-05-28 | 10 | United States |
| BACN11Z4CK | 2008-05-16 | 100 | US |
| BACN11Z4CK | 2007-08-16 | 700 | South Korea |
| BACN11Z4CK | 2007-07-28 | 500 | US |
| BACN11Z4CK | 2006-10-10 | 10000 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5310-01-589-7335
5310-01-589-7916, 5310-01-589-9922, 5310-01-590-0605, 5310-01-590-0953, 5310-01-590-1671
Technical Data | NSN 5310-01-589-7335
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| WIDTH ACROSS FLATS | 0.347 INCHES MINIMUM |
| SURFACE TREATMENT | CADMIUM OVERALL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| THREAD SERIES | UNJF |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| NUT HEIGHT | 0.312 INCHES MAXIMUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-A-416, TYPE II, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MATERIAL | IRON ALLOY 660 OVERALL |
| THREAD CLASS | 3B |
Restrictions/Controls & Freight Information | NSN 5310-01-589-7335
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
