NSN 5310-00-687-6607 S613080110, S6130-80110, Z3467064
Product Details | DOUBLE HEXAGON SELF-LOCKING NUT
5310-00-687-6607 A nut having 12 drive points and 24 sides. The bearing surface may be washer faced. An integral locking feature is incorporated in the design of the head or in the threads.
Part Alternates: S613080110, S6130-80110, Z3467064, Z3467-064, 54918624, 54918-624, 5310-00-687-6607, 00-687-6607, 5310006876607, 006876607
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-687-6607 | 05276 ( NUT, SELF-LOCKING, DOUBLE HEXAGON ) |

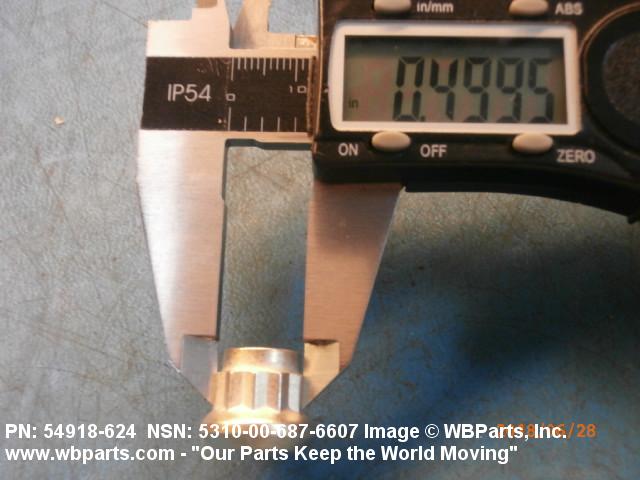

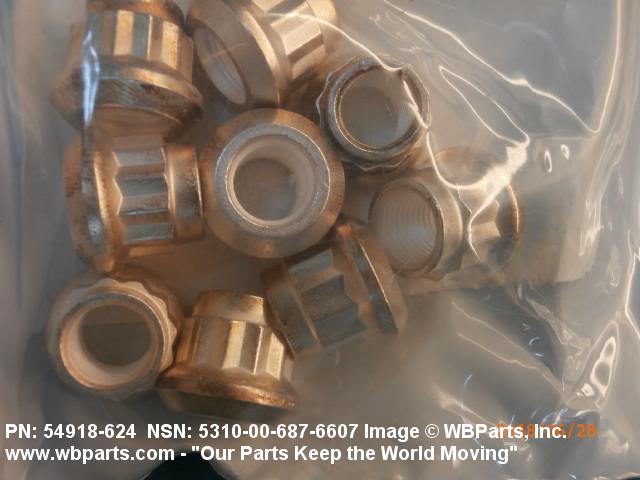

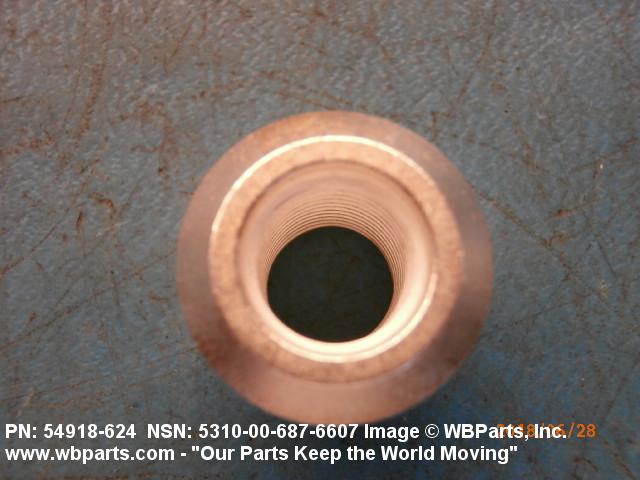

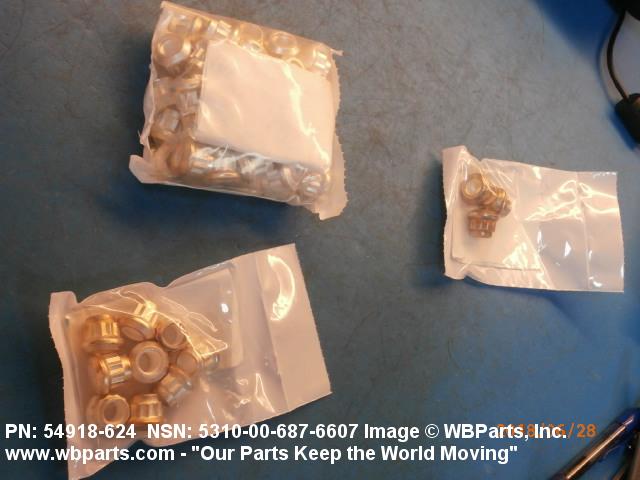

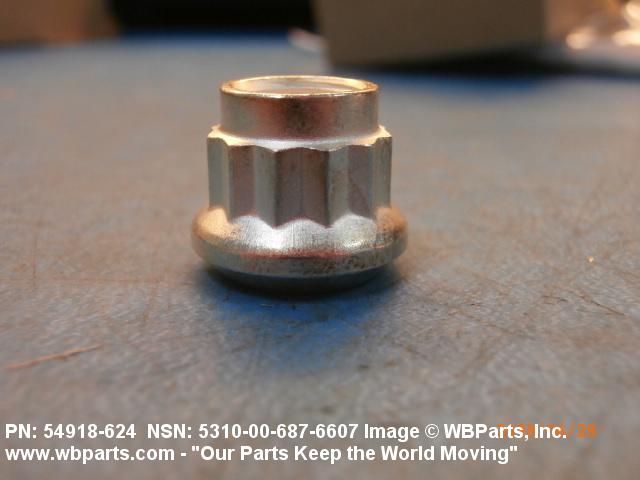

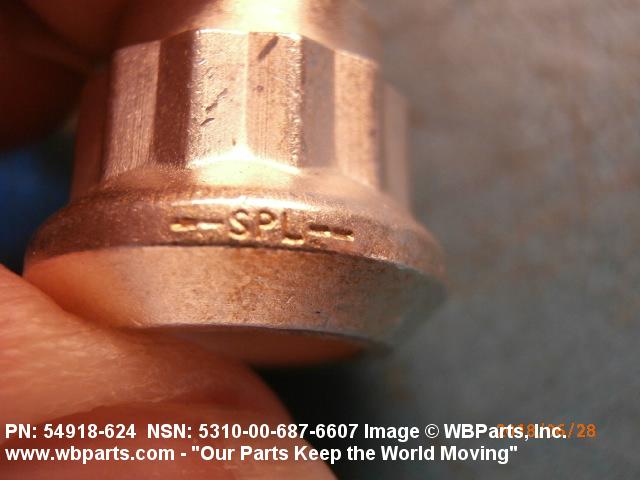

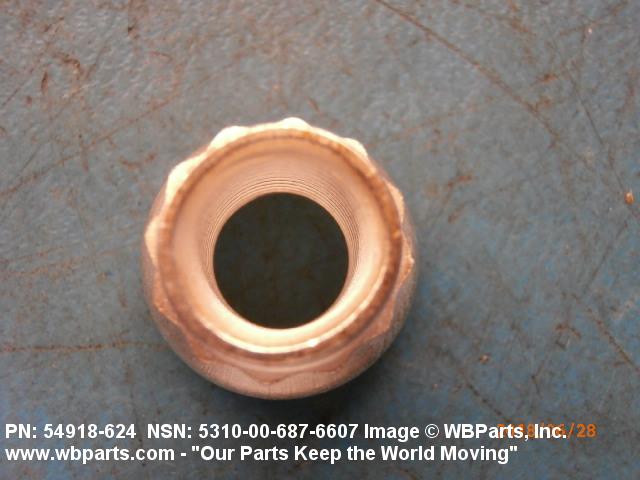

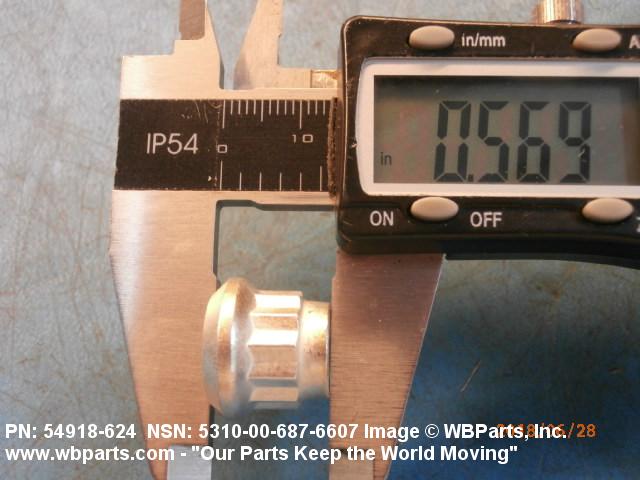

Drawings & Photos | NSN 5310-00-687-6607
Demand History | NSN 5310-00-687-6607
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 54918624 | 2024-10-302 | 3 | CA |
| 5310-00-687-6607 | 2023-09-244 | 200 | United States |
| 5310-00-687-6607 | 2019-08-224 | 35 | India |
| Z3467064 | 2018-05-150 | 58 | India |
| 5310-00-687-6607 | 2018-04-100 | 3000 | DIBBS |
| 5310-00-687-6607 | 2018-01-26 | 3000 | US |
| 5310-00-687-6607 | 2018-01-25 | 3000 | DIBBS |
| 5310-00-687-6607 | 2018-01-19 | 58 | India |
| 5310-00-687-6607 | 2017-12-354 | 58 | India |
| 5310-00-687-6607 | 2017-12-352 | 40 | DIBBS |
| Z3467064 | 2017-08-226 | 58 | India |
| Z3467064 | 2017-06-174 | 58 | India |
| 5310-00-687-6607 | 2017-06-171 | 30 | DIBBS |
| 5310-00-687-6607 | 2017-03-89 | 39 | DIBBS |
| 5310-00-687-6607 | 2017-02-46 | 58 | India |
| 5310-00-687-6607 | 2016-11-307 | 65 | India |
| Z3467064 | 2016-10-301 | 58 | IN |
| 5310-00-687-6607 | 2015-03-60 | 1698 | DIBBS |
| 5310-00-687-6607 | 2015-02-54 | 1000 | Canada |
| 5310-00-687-6607 | 2014-12-349 | 201 | DIBBS |
| 5310-00-687-6607 | 2014-12-349 | 500 | DIBBS |
| 5310-00-687-6607 | 2014-09-271 | 997 | DIBBS |
| Z3467064 | 2011-08-229 | 8 | Lebanon |
| Z3467064 | 2011-06-160 | 100 | US |
| S613080110 | 2011-06-159 | 50 | US |
| 5310-00-687-6607 | 2009-03-71 | 75 | us |
| Z3467064 | 2008-11-311 | 16 | Canada |
| Z3467064 | 2008-10-282 | 78 | India |
| 5310-00-687-6607 | 2008-06-155 | 4000 | DIBBS |
| Z3467064 | 2008-01-16 | 100 | United States |
Cross Reference | NSN 5310-00-687-6607
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 54918-624 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| S6130-80110 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| S6130-80110 | 54878 | ROTAIR INDUSTRIES, INC. |
| S6130-80110 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| S6130-80110 | 8K112 | FREUNDLICH SUPPLY COMPANY, INC. |
| Z3467-064 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-687-6607
Related Products | NSN 5310-00-687-6607
Technical Data | NSN 5310-00-687-6607
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL UNS S34720 OR STEEL UNS S34723 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5642 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A16 DOUBLE HEXAGON |
| NUT HEIGHT | 0.563 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.493 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | ANY ACCEPTABLE NUT |
| TEMP RATING | 1200.0 DEG FAHRENHEIT NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | S6130-80110 |
Restrictions/Controls & Freight Information | NSN 5310-00-687-6607
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-687-6607
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
